What is the difference between KGLD, KGQ2 and KGLZ?

KGLD is an electronic dual-power ATS for fast monitored transfer; KGQ2 is MCCB-type automatic changeover with compact size and high SCCR; KGLZ is a manual load isolation transfer switch for visible, safe changeover.

Which current ratings and poles are available?

KGLD 20–1600A, KGQ2 100–1600A, KGLZ 63–3150A; all series in 3P/4P. Choose 4-pole when neutral switching is required (e.g., generator supplies, sensitive electronics).

How fast is the transfer time?

Electronic ATS (KGLD) typically ≤200 ms. MCCB-type (KGQ2) may be slightly longer due to mechanical operation. Manual type (KGLZ) depends on the operator.

Where should each series be used?

KGLD: hospitals/data centers/telecom mains; KGQ2: commercial & industrial compact panels with high SCCR; KGLZ: generator rooms and distribution maintenance that require visible isolation.

How to coordinate ATS with upstream/downstream protection?

Verify SCCR at the ATS location and pair with suitable upstream fuses/MCCBs for selectivity. KGQ2’s MCCB-type simplifies coordination.

Is ATS compatible with generator systems?

Yes. Interlocks prevent simultaneous ON. KGLD provides controller I/O for genset start/stop and status feedback. Consider 4-pole for generator-supplied systems.

What maintenance is recommended?

Inspect contact wear, interlocks, terminal torque, and controller alarms periodically (6–12 months depending on duty).

How can I place an order or request OEM/ODM?

Use the Get Quote form to submit ratings, poles, quantities, and delivery needs. OEM/ODM for branding and special specs is available.

Automatic Transfer Switch (المنشطات الأمفيتامينية) Solutions

Q: Are Kuangya ATS compliant with international standards?

Yes. Designed according to IEC 60947-6-1 with CE and RoHS conformity. Test reports and compliance letters can be supplied for projects.

Q: Do you provide wiring diagrams and installation support?

Yes. Each series has specs & wiring documents. Engineering support for sizing and wiring is available on request.

تأكد من continuous power supply مع reliable ATS solutions from Kuangya.
Covering Dual Power systems, MCCB Type switches, and Manual Load Isolation devices, designed for hospitals, data centers, factories, and critical facilities.

انظر النماذج احصل على عرض أسعار

Automatic Transfer Switch Solutions

Select from Kuangya’s ATS series — DIN-rail modular, dual power, MCCB type, and load isolation transfer switches.

How to Choose Your Automatic Transfer Switch

Pick the right ATS by application level, control logic, and isolation requirement. Quick compare below.

السلسلة	الاستخدام الرئيسي	Control / Mechanism	Poles & Current	When to choose

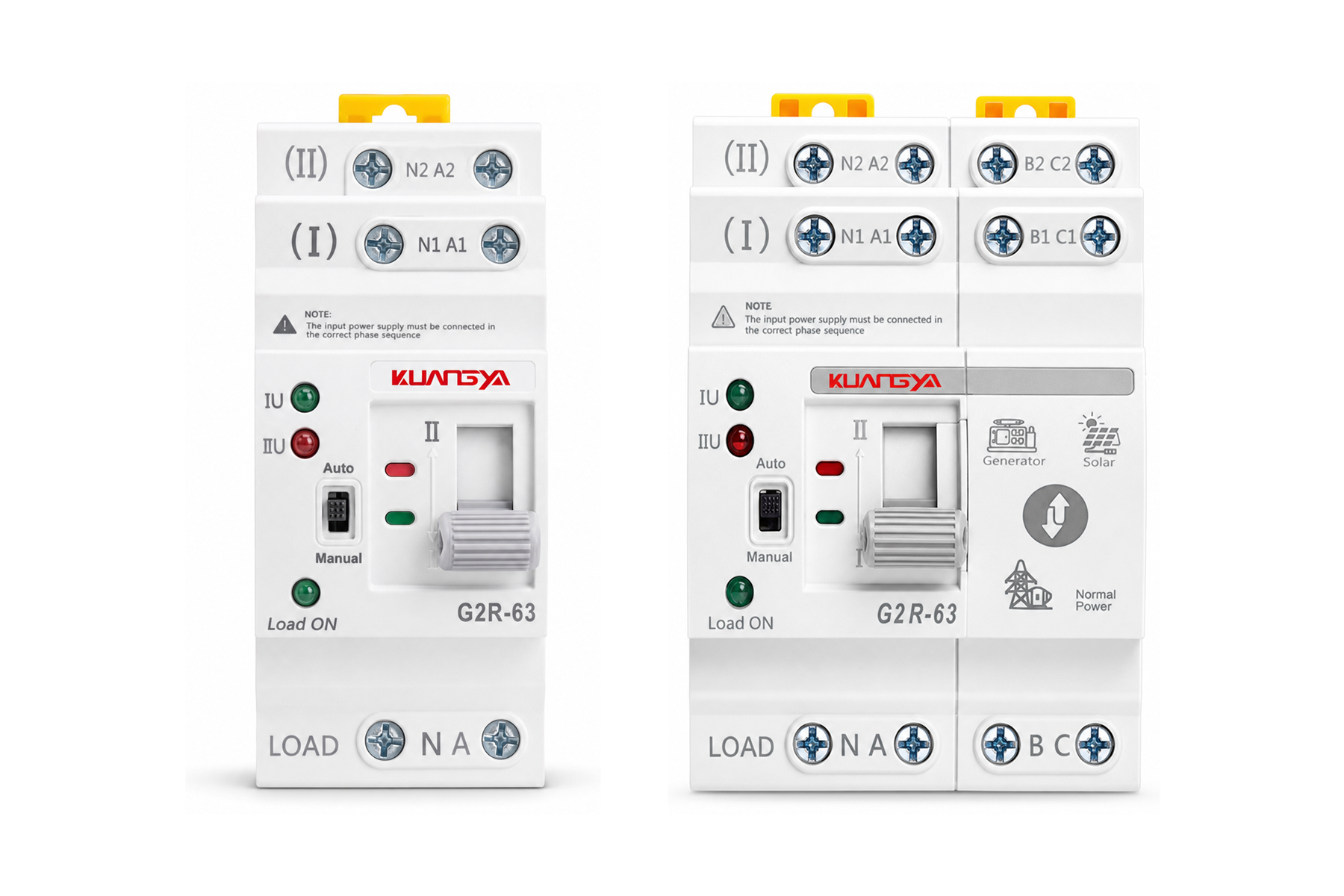

G2R-63 DIN Rail	Residential, commercial and solar backup	Electronic automatic transfer + manual mode	6–63A · 2P/4P	Need compact DIN-rail installation and rapid transfer between normal and standby power.
KGLD Dual Power	Grid ↔ Generator / Dual-source mains	Electronic controller + motorized mechanism	20–1600A · 3P/4P	Need fast transfer, status I/O, and coordinated protection at main switchboard.
KGQ2 MCCB Type	Compact cabinets / C&I backup	MCCB interlock, optional remote control	100–1600A · 3P/4P	Prefer MCCB structure with high breaking capacity in limited space.
KGLZ Manual Isolation	Manual changeover & visible isolation	Manual handle, mechanical interlock	63–3150A · 3P/4P	Need simple, durable, and safe isolation for distribution or maintenance.

Hospital / Data Center Mains

Require fast & reliable transfer with monitoring and alarms.

Recommended: KGLD Dual Power ATS

C&I Backup in Compact Panels

Prefer MCCB framework with high SCC and compact size.

Recommended: KGQ2 Automatic Changeover

Distribution Isolation / Generator Manual

الحاجة visible isolation and straightforward manual operation.

Recommended: KGLZ Load Isolation

احصل على عرض أسعار

الميزات والفوائد الرئيسية

Reliable power transfer with safety, compliance, and long service life.

Wide Current Range

From 6A up to 3150A, suitable for small commercial to heavy industrial systems.

Multiple Mechanisms

Electronic, MCCB, or manual handle types available for different ATS applications.

Safety & Reliability

Mechanical interlock, visible isolation, and quick transfer ensure operator safety.

الامتثال للمعايير

Model-specific standards and conformity documents are available on request.

Easy Installation

Compact design, panel-mount options, and front access for wiring & service.

Durable Build

High-quality copper contacts, arc-resistant chambers, and long mechanical life >10,000 operations.

التطبيقات وحالات الاستخدام

Where Kuangya ATS is deployed across industries and power distribution levels.

Hospitals & Data Centers

Main switchboards needing fast transfer and alarm/monitoring.

Use KGLD Dual Power ATS

Commercial & Office Buildings

Reliable backup for elevators, HVAC, lighting, and critical loads.

Use KGQ2 Automatic Changeover

Factories & Industrial Plants

High SCC coordination in compact panels; MCCB-type preferred.

Use KGQ2 MCCB Type

Genset Switching & Maintenance

Simple, durable, visible isolation for generator rooms.

Use KGLZ Load Isolation

Telecom & Micro Data Rooms

Compact backup distribution with remote status I/O.

Use KGLD Dual Power

Warehouses & Retail

Keep POS, lighting and security online during outages.

Use KGQ2 Changeover

لماذا تختار كوانجيا

Reliable ATS manufacturer with strong engineering background and proven quality.

🏭

المصنع مباشرة

Own manufacturing base with strict QC and fast lead time.

📐

الدعم الهندسي

Guidance on sizing, wiring and installation for different applications.

⏱️

الخدمات اللوجستية السريعة

Short production cycle and reliable international shipping service.

⚙️

OEM / ODM

Custom branding and tailored specifications available on request.

🛡️

جودة معتمدة

Model-specific compliance and conformity documents are available on request.

Installation & Compliance Guide

General Installation Requirements

Automatic transfer switches must be installed by qualified electricians familiar with local wiring codes. Each Kuangya ATS is delivered with clear terminal markings and installation manuals. Ensure adequate clearance around the switch for cable bending radius, ventilation, and safe operation of the handle or actuator.

Mount ATS vertically inside switchboards or wall-mounted enclosures.
Provide sufficient space for incoming and outgoing cables.
Observe torque values on power terminals to guarantee reliable contact.
Maintain separation between power and control wiring to reduce interference.

Wiring & Connection Practices

بالنسبة لـ KGLD dual power ATS, connect the electronic controller to the power supply and signal I/O terminals. Remote monitoring, genset start/stop, and alarm outputs are available. For KGQ2 MCCB type, verify interlock wiring if optional motor mechanism or remote control is used. For KGLZ manual switches, only power conductors are connected, with mechanical interlock ensuring isolation.

Always check phase sequence and neutral connections. In 4-pole versions, the neutral conductor must be wired through the designated neutral terminal of the ATS. Incorrect neutral handling can lead to equipment malfunction or hazardous touch voltages.

Compliance & Standards

Kuangya ATS models are developed with reference to applicable transfer-switch standards, including IEC 60947-6-1 where applicable. Certification, conformity documents, and factory test reports vary by model and destination market; confirm the required documents before ordering.

When integrating ATS into low-voltage assemblies, verify that the overall short-circuit rating (SCCR) meets local regulations. Always coordinate ATS with upstream protection (fuses or MCCBs) to comply with IEC and NEC installation rules.

Safety Considerations

During installation and service:

Isolate all sources before working on ATS terminals.
Use appropriate PPE (insulated gloves, arc-rated clothing) according to site safety rules.
Do not bypass mechanical or electrical interlocks.
Check that control power and auxiliary contacts are correctly wired before energizing.

Follow the model manual, operating duty, and site maintenance plan. A qualified electrician should inspect terminal tightness, contact condition, interlock operation, and control wiring integrity.

Support & Documentation

Available documentation varies by model and project requirements. Documents may include:

Datasheets with dimensions, ratings, and connection diagrams.
Wiring guides for generator and dual-utility systems.
Certificates of conformity and compliance with IEC/CE standards.

Contact our engineering team for project-specific guidance or to request official compliance letters for tenders and EPC submissions.

الأسئلة الشائعة

Frequently asked questions about Kuangya automatic transfer switches.

What is the difference between G2R-63, KGLD, KGQ2 and KGLZ?

G2R-63 = Compact DIN-rail automatic transfer switch. KGLD = Dual power ATS with controller. KGQ2 = MCCB type automatic changeover. KGLZ = Manual isolation switch with visible disconnector.

Which current ratings are available?

G2R-63: 6–63A in 2P/4P; KGLD: 20–1600A, KGQ2: 100–1600A, and KGLZ: 63–3150A in 3P/4P.

Are Kuangya ATS compliant with international standards?

Models are designed for applicable transfer-switch standards. Certification and conformity documents vary by model and destination market; request the required documents before ordering.

Can ATS be used for both grid and generator switching?

Yes, ATS are designed for dual-source transfer (utility ↔ utility, or utility ↔ genset).

Do you provide wiring diagrams and installation support?

Yes, each product has wiring docs and we provide engineering support.

What is the transfer time of an ATS?

G2R-63 transfers in less than 50 ms; KGLD ≤200 ms; KGQ2 mechanical type is slightly longer; KGLZ manual transfer depends on the operator.

How is safety ensured during operation?

Automatic models use mechanical and/or electrical interlocking as applicable. Manual isolation models use mechanical interlocking and visible isolation. Always follow the model-specific wiring and operating instructions.

Can I request OEM or customized ATS?

Yes, Kuangya provides OEM/ODM with branding, rating, and panel customization.

What maintenance is required for ATS?

Follow the model manual and site maintenance schedule. A qualified electrician should inspect terminals, contacts, interlocks, and control wiring according to operating conditions.

Where can I buy Kuangya ATS?

Request a quotation through our website or contact an authorized distributor. Confirm the required current, voltage, poles, application, and delivery destination.
