You open the solar distribution box, look at the surge protective device, and see a green indicator. The SPD green indicator looks normal, but does that mean the system is actually protected?

Everything looks normal.

So does that mean the SPD is definitely protecting the inverter and the rest of the PV system?

Not necessarily.

On many modular surge protective devices, a green status indicator means that the monitored SPD module is still in the manufacturer-defined normal or available state. In simple terms, the device has not indicated that its internal protection element has reached a failure condition requiring disconnection or replacement.

But that green indicator cannot confirm everything about the protection system.

It cannot tell you whether the SPD was selected correctly, whether the wiring is correct, whether the connection path is too long, whether the earthing and bonding arrangement is suitable, or how much surge-handling capability remains after previous events.

The safest way to understand the green window is:

Green usually means the SPD has not reported failure. It does not mean every part of the surge protection system has been verified.

This distinction is especially important in solar PV systems, where DC voltage, SPD configuration, cable routing, inverter location, earthing arrangement, and installation method all affect real surge protection performance.

SPD Green Indicator: Quick Answer

For an SPD whose manufacturer defines green as normal:

The exact meaning must always be confirmed in the datasheet or installation instructions for the specific SPD.

This matters because green and red are common indicator colors, but they are not a universal diagnostic language for every SPD on the market.

Some SPDs use a mechanical colored window. Others use LEDs, symbols, remote contacts, audible alarms or electronic monitoring.

For example, some commercial SPDs use a local green/red status indication together with remote signaling.

So before interpreting the color, first confirm what the manufacturer says it means.

What Does an SPD Green Indicator Actually Tell You?

Many modern modular SPDs contain a protection element such as a metal oxide varistor, or MOV, together with a disconnection mechanism.

During normal operation, an MOV-based SPD remains in a high-impedance state.

When a transient overvoltage occurs, the protection element becomes conductive and diverts surge current through the designed protection path, helping limit the voltage reaching sensitive equipment.

Over time, repeated electrical stress, abnormal overvoltage or a sufficiently severe event can degrade the protection element.

Many SPD designs therefore include an internal disconnection mechanism to isolate a protection element that has reached a defined unsafe or failed condition.

The visible status indicator is often mechanically or electrically linked to this monitoring or disconnection system.

For this type of SPD:

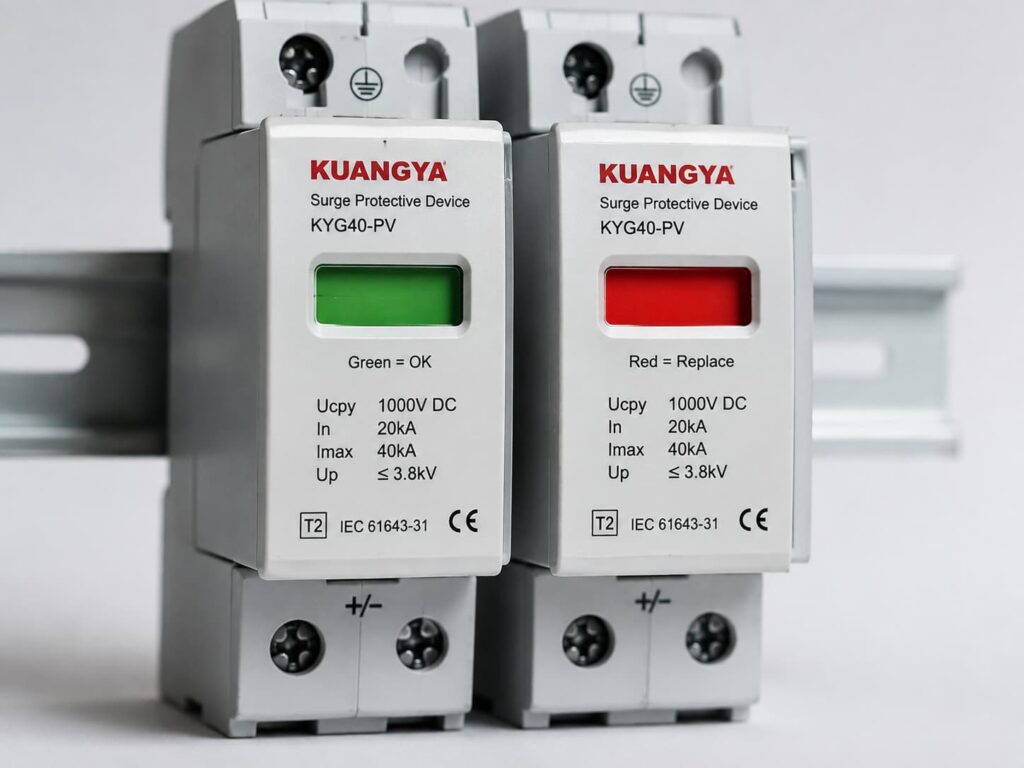

Green may indicate:

The monitored protection module is still connected and has not reached the manufacturer’s defined failure condition.

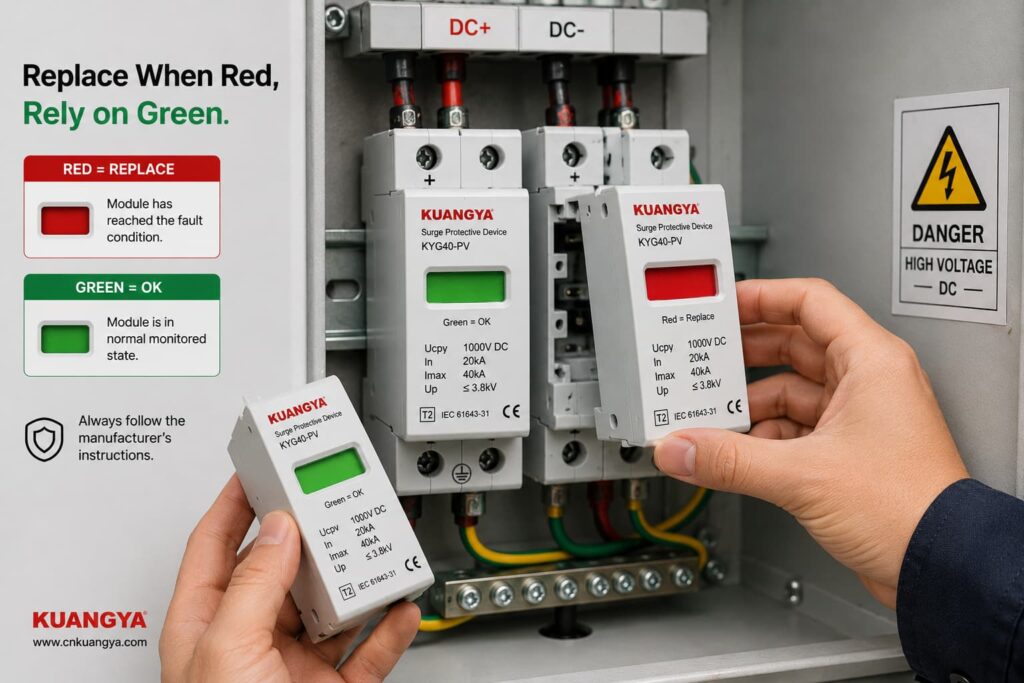

Red may indicate:

The monitored protection element has been disconnected or the module has reached a state for which replacement is required.

However, the exact behavior depends on the SPD design.

That is why it is better to say:

Green = the module currently reports its normal state.

rather than:

Green = the whole electrical system is definitely protected.

A Green Window Is Not Always a Green Light

This sounds like a small detail, but it causes unnecessary confusion.

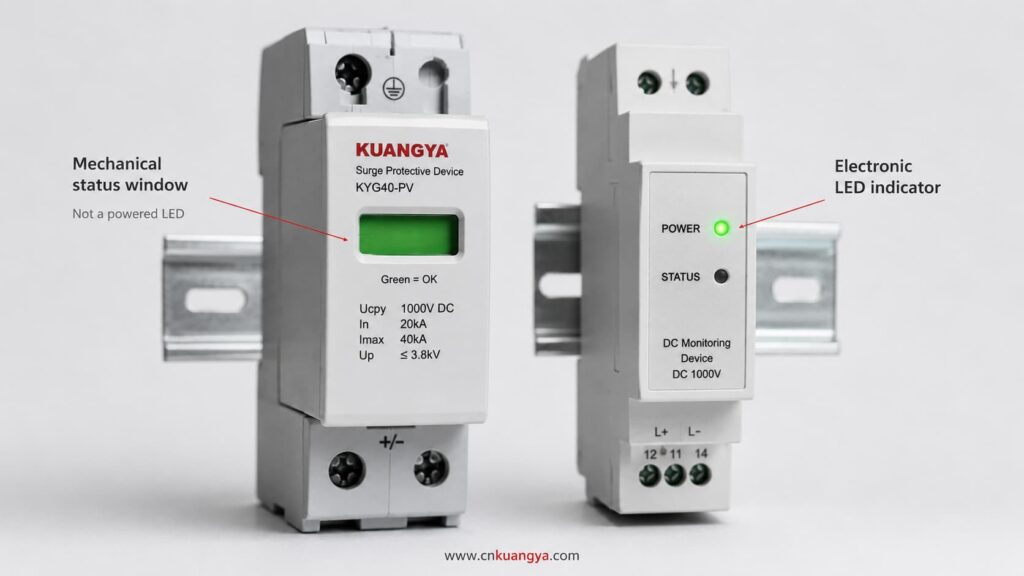

Many DIN-rail SPDs do not actually contain a green LED.

The green rectangle visible on the front of the cartridge may simply be a mechanical status window.

For example, a mechanism inside the SPD may move a colored flag when the internal disconnector operates.

That means the window can remain visible even when the electrical system is de-energized.

So statements such as:

“The green light is on, so the SPD has power.”

can be incorrect.

A mechanical green window may indicate the physical status of the SPD module rather than the presence of supply voltage.

Always identify whether the product uses:

• a mechanical indicator window,
• an LED,
• an electronic display,
• a remote alarm contact,
• or a combination of these.

The product documentation should make this clear.

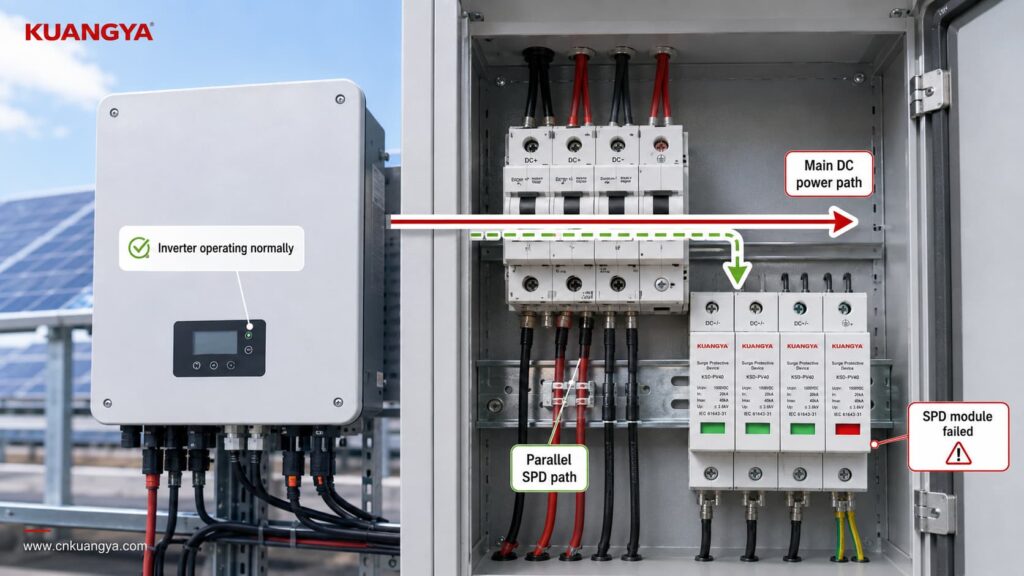

Why Can the Inverter Still Work If the SPD Has Failed?

This is one of the most important points to understand.

In most typical power-system applications, the SPD is connected in parallel with the circuit being protected.

It is not normally carrying the inverter’s normal operating current.

During normal voltage conditions, the SPD remains largely inactive.

When a transient overvoltage appears, it provides a surge-current path and limits the voltage according to its design.

Because of this parallel arrangement, an SPD protection module can become disconnected while the main circuit continues operating.

The result can be:

Inverter: Working normally

PV production: Normal

SPD module: Failed or disconnected

This is why checking only whether the inverter is running does not tell you whether surge protection is still available.

A PV system can continue producing power even after one surge protection path has been lost.

That is exactly why the status indicator matters.

But the opposite is also true:

A green indicator does not prove that the complete surge protection arrangement is correct.

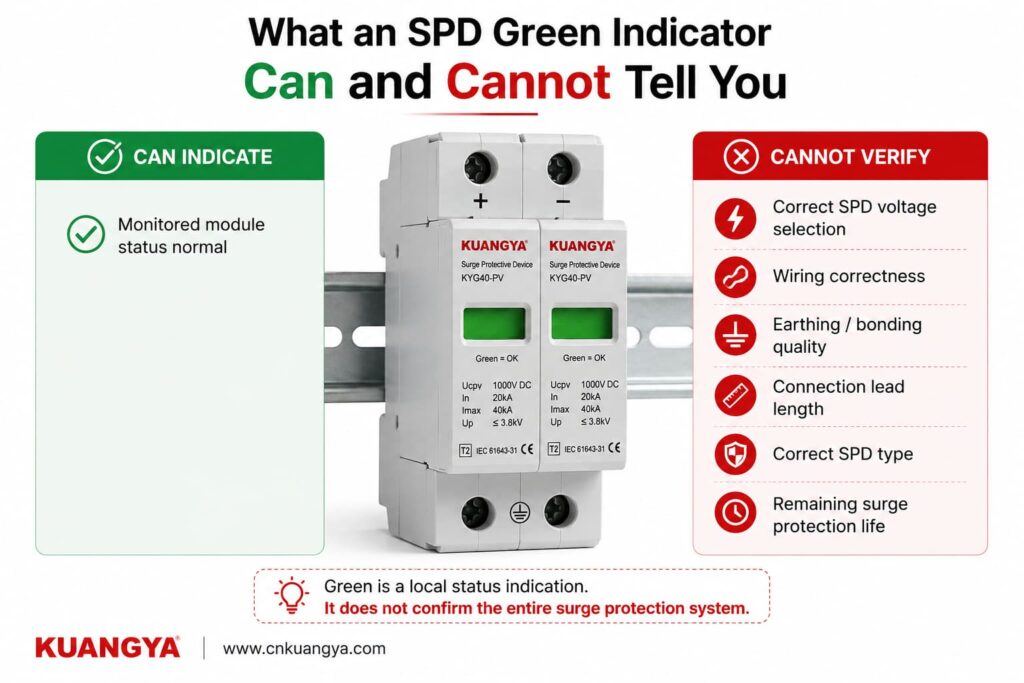

What an SPD Green Indicator Can and Cannot Tell You

Think of the indicator as answering one narrow question:

Has the monitored SPD module entered the failure state that this indicator is designed to detect?

It is not answering every engineering question about the installation.

A green indicator can usually help confirm:

The module has not reached its manufacturer-defined indicated failure state.

The internal disconnection/status mechanism has not reported the condition associated with replacement.

The module is not currently displaying its normal visual failure warning.

A green indicator normally cannot confirm:

Whether the SPD voltage rating is suitable for the PV array.

Whether the SPD is intended for AC or DC operation.

Whether the correct Type 1, Type 2 or combined Type 1+2 protection has been selected.

Whether the voltage protection level is suitable for the equipment being protected.

Whether the SPD is wired according to the correct PV configuration.

Whether all protection modes are connected correctly.

Whether the earthing and equipotential bonding arrangement is correct.

Whether the SPD connection conductors are unnecessarily long.

Whether the required backup overcurrent protection is correct.

Whether a previous surge has reduced the remaining capability of the protection element.

Whether a surge event has occurred.

Whether the SPD would perform exactly as declared during the next transient event.

That is why a green indicator should be treated as one inspection point, not as a complete SPD test.

7 Things to Check Even When Your SPD Is Green

If the SPD is green, the next question should not be:

“Is everything perfect?”

A better question is:

“Does the rest of the installation support the protection that this SPD is designed to provide?”

Here are the most important checks.

1. Confirm What Green Means for This Exact SPD

Never assume the color meaning only from experience with another brand.

Check the:

• product label,
• datasheet,
• installation instructions,
• manufacturer documentation.

For many modular SPDs, green means normal and red means replacement or fault.

But that interpretation should still come from the documentation of the exact product.

This becomes particularly important with multi-function products that may have separate indicators for:

• protection status,
• power supply,
• wiring fault,
• remote alarm,
• or other conditions.

A green indicator is only useful if you know exactly what it is indicating.

2. Check Every SPD Module, Not Just One

A multi-pole SPD can contain several protection modules or protection paths.

For example, a PV SPD assembly may have several cartridges depending on the system topology and protection arrangement.

If three windows are green but one is red, you should not describe the SPD as:

“Basically OK.”

One failed protection path may mean the complete intended protection arrangement is no longer available.

Check every visible status indicator.

For plug-in designs, also make sure the required cartridges are present and correctly installed according to the manufacturer’s instructions.

If one module shows the manufacturer’s defined failure condition, follow the manufacturer’s replacement procedure and investigate whether any additional inspection is required.

3. Check Whether the SPD Is Correct for the System

A perfectly green SPD can still be the wrong SPD.

This is one of the biggest reasons that green does not equal correctly protected.

For a solar PV installation, check whether the SPD is specifically suitable for the DC side of a photovoltaic system.

IEC 61643-31 addresses SPDs intended for the DC side of PV installations up to 1500 V DC.

The SPD should therefore be selected according to the actual system rather than simply according to appearance or nominal voltage.

Important parameters may include:

System application

AC SPD and PV DC SPD are not automatically interchangeable.

Maximum continuous operating voltage

For PV SPDs, the selected continuous voltage rating must be suitable for the maximum voltage that can occur in the PV circuit under the applicable design conditions.

Voltage protection level — Up

A lower Up generally means a lower declared residual voltage during the specified test conditions, but it must be considered together with system voltage, SPD type and coordination.

Discharge current ratings

Depending on the SPD classification, datasheets may specify values such as In, Imax or Iimp.

SPD Type

If these markings are unfamiliar, see our guide to DC SPD specifications such as Ucpv, In, Imax, Up and Iscpv.

Whether Type 1, Type 2 or a combined Type 1+2 SPD is appropriate depends on the installation, lightning exposure, lightning protection concept and applicable standards.

A green Type 2 SPD cannot turn itself into a Type 1 SPD simply because the indicator looks normal.

Correct application still matters.

4. Check the Wiring Configuration

An SPD only works through the electrical paths actually connected to it.

A green indicator cannot detect every wiring error.

In a PV installation, the SPD connection must match the system architecture and the manufacturer’s wiring diagram.

Do not assume that every DC SPD is wired identically.

Different products and PV system configurations can use different protection arrangements.

Incorrect connections can result in a situation where:

The SPD itself appears normal, but the surge protection path is not the path the system actually needs.

Polarity, protection modes, terminal identification and connection to PE or the relevant equipotential bonding system must follow the device instructions and system design.

The front indicator usually does not verify all of these installation details.

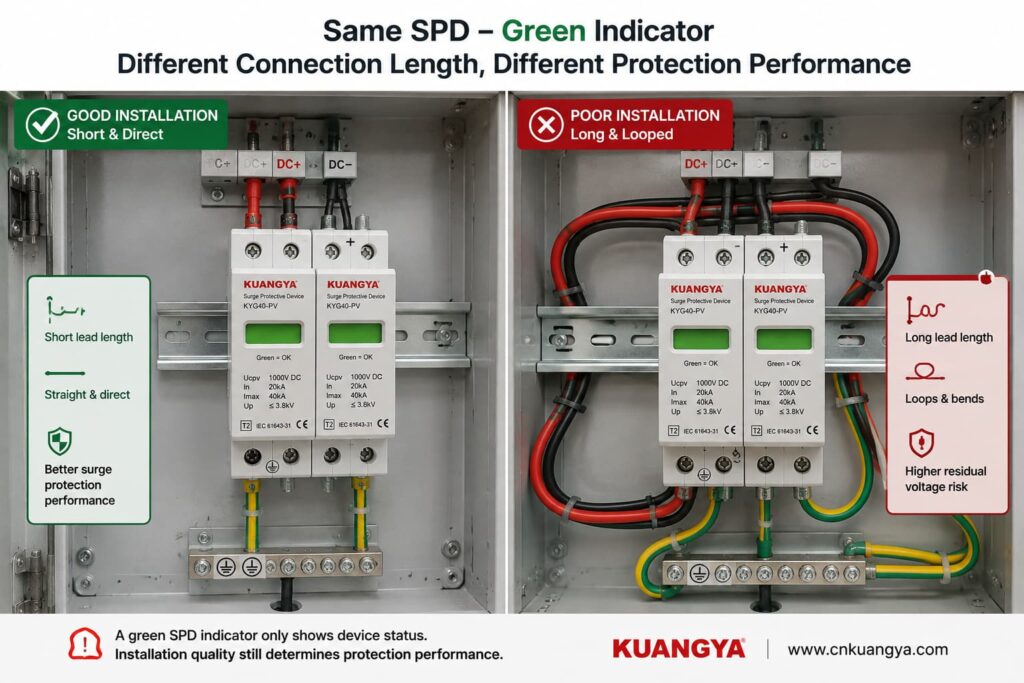

5. Check the SPD Connection Length

Even when an SPD is correctly selected and still green, installation geometry matters.

During a surge, current changes extremely quickly.

The inductance of the connecting conductors can therefore create additional voltage.

Long, looping or poorly routed SPD conductors can increase the voltage appearing at the protected equipment during a transient.

This means two identical green SPDs can provide different real installation performance if one has short, direct connections and the other is connected using unnecessarily long conductors.

This is why SPD installation instructions commonly emphasize short and direct connections.

So:

Green tells you about the monitored SPD module. It does not tell you whether the wiring around the SPD is optimized for surge performance.

If you want to understand this issue in more detail, see our guide:

Does the Distance Between the SPD and Inverter Matter?

6. Check Earthing and Equipotential Bonding

An SPD does not work in isolation.

The complete surge-current path matters.

Depending on the system topology and SPD design, this can involve PE conductors, bonding conductors, equipotential bonding and the installation’s earthing arrangement.

A green SPD indicator usually does not verify the quality of those external connections.

Possible installation problems can include:

loose connections,

corroded connections,

incorrect bonding,

poor conductor routing,

connection to the wrong reference point,

or an installation arrangement that does not match the SPD wiring diagram.

For solar PV systems, the correct earthing and bonding arrangement depends on the system design and applicable installation requirements.

Therefore, avoid the overly simple statement:

“An SPD just sends everything into the ground.”

The real current paths depend on SPD topology and system configuration.

What matters is that the SPD is installed according to its declared protection modes and the applicable electrical design.

7. Check Backup Protection and Physical Condition

Depending on the product and installation, the SPD manufacturer may specify backup overcurrent protection or coordination requirements.

A green window does not confirm that the required upstream protective device has been selected correctly.

Check the exact product instructions.

Also inspect the SPD externally where this can be done safely.

Warning signs include:

• cracking,
• deformation,
• discoloration,
• signs of overheating,
• burning smell,
• loose plug-in cartridges,
• damaged terminals,
• water or contamination,
• repeated alarms.

Visible damage should not be ignored simply because the status window still appears green.

Where inspection requires opening energized equipment or accessing hazardous terminals, the work should be performed by qualified personnel following appropriate electrical safety procedures.

SPD Green Indicator Status Checker

An SPD green indicator is useful, but it is only one part of the picture.

Use the checker below as a basic installation review, not as an electrical test or certification of the SPD.

The result should be treated as an inspection prompt.

It cannot reproduce an IEC surge test, measure remaining MOV life or guarantee protection against a future lightning event.

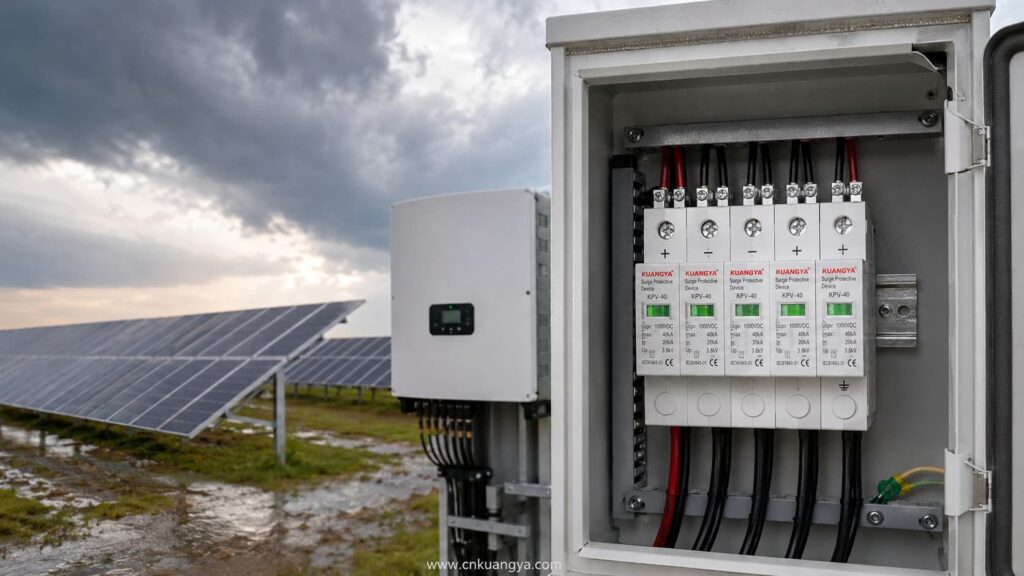

What If the SPD Is Still Green After a Lightning Storm?

This is another very common misunderstanding.

Imagine that a thunderstorm passes near the PV installation.

The inverter continues operating.

You inspect the SPD.

It is still green.

Does this mean the surge never reached the system?

No.

A surge can occur without forcing the SPD into its failure state.

That is the purpose of an SPD: it is designed to withstand and handle transient events within its declared capabilities.

So an SPD may experience a surge, perform its protective function and remain in its normal indicated state afterward.

The green indicator is not normally an event counter.

It does not necessarily tell you:

• whether a surge occurred,
• how many surges occurred,
• how large the surge was,
• how much energy was handled,
• or how much service capability remains.

Some more advanced monitoring systems can record surge events or estimate device condition.

A basic green/red status window usually cannot.

Therefore:

Green after a storm does not prove that nothing happened. It only tells you that the SPD has not entered the failure state represented by that indicator.

For important or critical systems, follow the manufacturer’s inspection recommendations after significant electrical or lightning events.

Can an SPD Be Green but Have Less Remaining Life?

Potentially, yes.

This is one of the reasons not to describe the green window as a complete health measurement.

MOV-based surge protective elements can experience cumulative electrical stress.

The amount of degradation depends on factors such as:

• surge magnitude,
• surge duration and waveform,
• number of events,
• operating voltage,
• temperature,
• temporary overvoltage exposure,
• product design.

However, this does not mean that you can calculate SPD life simply by counting thunderstorms.

There is no reliable universal rule such as:

“An SPD survives exactly 20 surges.”

or:

“Replace every SPD after three years.”

Surge exposure is not identical from event to event.

A large event and a small transient do not impose the same electrical stress.

The green/red mechanism is usually a threshold-type status indication, not a precise remaining-life meter.

More sophisticated monitoring systems can provide additional condition information, but a basic mechanical indicator normally cannot show a percentage such as:

SPD life remaining: 63%.

So avoid any tool or article claiming to calculate exact SPD remaining life from only age, number of storms or visual indicator color.

Does Green Mean the MOV Is Perfect?

No.

It is better to say that the monitored SPD has not reached the condition that causes its status mechanism to indicate failure.

That is different from saying the protection element is identical to a brand-new component.

The SPD may have experienced previous stress without reaching its disconnection threshold.

For normal installations, this does not automatically mean the SPD must be replaced.

The important point is simply that the green indicator is not a laboratory measurement of every electrical characteristic inside the SPD.

Can I Test the SPD With a Multimeter?

A normal multimeter can be useful for certain electrical checks, but it cannot fully verify surge-protection performance.

A standardized SPD test involves transient conditions that an ordinary handheld multimeter does not reproduce.

For example, a multimeter does not apply standardized surge-current waveforms to determine parameters such as the SPD’s declared voltage protection level or impulse-current performance.

For many MOV-based SPDs, measuring resistance at the low voltage produced by a multimeter may simply show a very high resistance or open-circuit-like reading.

That alone does not prove the SPD will perform correctly during a surge.

Similarly:

Continuity = good SPD

is not a universal test rule.

For products with a remote signaling contact, a meter may sometimes be used to check that contact when the manufacturer permits it and the circuit is safely isolated.

But the remote contact still only reports the status designed into the device.

It does not perform a full surge test.

For installed SPDs, follow the manufacturer’s inspection and testing procedure.

What About Remote Signaling?

Some SPDs include a dry contact or changeover contact for remote status monitoring.

This is useful in:

• solar plants,
• industrial panels,
• unmanned installations,
• telecom systems,
• data centers,
• commercial buildings.

The remote contact can be connected to monitoring equipment such as a PLC, BMS, inverter monitoring system or SCADA system.

If the SPD changes to its defined fault condition, the remote contact can trigger an alarm.

This solves an important practical problem:

Without remote monitoring, a failed SPD may remain unnoticed inside a cabinet for a long time.

However, remote signaling has the same fundamental limitation as the local indicator.

It can report the condition the SPD is designed to monitor.

It normally does not automatically tell you:

• the exact surge magnitude,
• remaining surge capacity,
• whether wiring is correct,
• whether the earth/bonding path is correct,
• whether the wrong SPD was selected,
• or whether the connection leads are too long.

So remote monitoring improves visibility, but it does not replace correct engineering.

When Should a Green SPD Still Be Inspected?

A green SPD deserves further inspection when something else about the installation creates doubt.

Examples include:

After a significant lightning or electrical event

Follow the equipment manufacturer’s post-event inspection instructions.

When the installation has been modified

A previously correct SPD can become poorly coordinated after changes to the PV array, inverter, distribution board, cabling or protection scheme.

When you do not know whether the SPD rating matches the system

Check the product data rather than relying on the green indicator.

When cables are unusually long

Review SPD placement and connection length.

When there is visible damage or abnormal heating

Do not let a green window override obvious physical warning signs.

When one module repeatedly fails

Repeated SPD failure may indicate a system problem such as incorrect voltage selection, temporary overvoltage, wiring problems or abnormal electrical stress.

Simply installing another identical cartridge repeatedly is not a root-cause solution.

When Should an SPD Be Replaced?

The clearest replacement condition is when the manufacturer-defined status indicator shows that the module has failed or reached end of life.

For many replaceable modular SPDs, this is shown by a red status window.

For solar PV applications, you can also view our DC surge protective device range for PV systems, including Type 2 and Type 1+2 models with replaceable modules and visual status indication.

Follow the exact manufacturer’s instructions regarding whether to replace:

• one cartridge,
• several cartridges,
• the base,
• or the complete SPD assembly.

Replacement may also be required when there is physical damage or when the manufacturer’s inspection procedure identifies another reason to remove the device from service.

Do not bypass an internal disconnector or attempt to repair a sealed SPD protection cartridge unless the manufacturer specifically provides an approved service procedure.

Solar PV Example: Green SPD at the Inverter

Consider a 1000 V-class solar PV system with a DC SPD installed close to the inverter.

The SPD windows are all green.

What can we conclude?

We can reasonably say:

The visible monitored SPD modules currently report their normal state, assuming the product documentation defines green as normal.

But before saying:

“The inverter is fully protected.”

we would still want to know:

Is the SPD specifically rated for PV DC use?

Is its maximum continuous operating voltage suitable for the PV array’s maximum design voltage?

Is the correct SPD Type installed for the lightning protection concept?

Does the wiring follow the manufacturer’s PV connection diagram?

Are all protection modes connected?

Are the conductors short and direct?

Is the earthing/bonding arrangement correct?

Is required backup protection installed?

Are all cartridges seated and undamaged?

Only after those questions have been considered does the green indicator become part of a more complete protection assessment.

Another Example: Green SPD in the Combiner Box but No SPD Near the Inverter

Suppose a PV array has an SPD in the combiner box.

It is green.

The inverter is located a considerable cable distance away.

Can we simply say:

“There is already a green SPD, so the inverter is protected.”

Not automatically.

The question is no longer only about SPD condition.

It also becomes a question of SPD placement, cable length, protection coordination and whether additional protection is required near the equipment.

This is why SPD status and SPD system design should be treated as two different questions:

Question 1: Is the installed SPD module showing normal status?

Question 2: Is the surge protection system designed and installed correctly?

Green can help answer Question 1.

It cannot answer Question 2 by itself.

Standards Behind PV Surge Protection

For PV systems, several IEC documents are particularly relevant.

IEC 61643-31

IEC 61643-31 covers requirements and test methods for SPDs intended for the DC side of photovoltaic installations, including systems up to 1500 V DC.

IEC 61643-32

IEC 61643-32 provides principles for selecting, installing and coordinating SPDs used in photovoltaic systems.

IEC 60364-7-712:2025

IEC 60364-7-712:2025 addresses electrical installation requirements associated with solar photovoltaic power supply installations.

The exact standard editions and national requirements used for a project should be confirmed for the market and installation.

The important practical point is that SPD performance is evaluated as more than simply:

green or red.

Selection, ratings, system configuration and installation all matter.

Common Misunderstandings About Green SPD Indicators

“Green means the SPD is currently absorbing surges.”

Not exactly.

During normal conditions, the SPD is primarily in a standby state.

It responds when transient voltage conditions require it.

Green normally indicates a status condition, not that the SPD is continuously conducting surge current.

“Green means there has never been a surge.”

No.

An SPD can handle a transient event and remain in its normal state.

A basic indicator usually does not record every surge event.

“The inverter works, so the SPD must be working.”

No.

Because the SPD is typically connected in parallel, the protected equipment may continue operating even if one protection element has been disconnected.

“If the SPD is green, grounding must be good.”

No.

The SPD’s visual indicator generally does not verify the entire external earthing and bonding system.

“Green means the SPD still has 100% life.”

No.

A normal status window should not be interpreted as a precise measurement of remaining surge capacity.

“If it is green, the installation is correct.”

No.

Incorrect voltage selection, wiring, conductor length or protection coordination can exist while the status indicator still appears normal.

Frequently Asked Questions

Does an SPD green indicator mean the SPD is working?

If the manufacturer defines green as the normal status, it usually means the monitored SPD module has not indicated its defined failure condition.

It does not by itself prove that the complete installation is correctly designed or that the SPD retains exactly the same characteristics as when it was new.

Does green mean my solar inverter is protected?

It is a positive status indication, but not sufficient evidence by itself.

You should also confirm the correct PV DC SPD rating, installation configuration, conductor routing, bonding arrangement and protection coordination.

Can an SPD stay green after a lightning surge?

Yes.

An SPD may handle a transient event without reaching its failure threshold.

A green indicator after a storm therefore does not prove that no surge occurred.

Can a green SPD still be damaged?

Visible or abnormal physical conditions should always be investigated.

A green indicator monitors only the conditions designed into that status mechanism.

It should not override evidence such as burning, cracking, overheating or other damage.

What does a red SPD indicator mean?

For many modular SPDs, red means that the monitored protection module has reached the manufacturer’s defined fault or end-of-life state and requires replacement.

Always confirm the meaning in the documentation for the exact model.

If one SPD cartridge is red and the others are green, is the system still protected?

The intended protection arrangement should not be assumed to be complete.

The affected module or protection mode needs to be identified and the manufacturer’s replacement and inspection instructions followed.

Should I replace an SPD after every lightning storm?

Not automatically.

Follow the manufacturer’s inspection and replacement instructions.

Check the status indication and any remote monitoring information after significant events, particularly for critical installations.

Can I calculate how much SPD life is left?

Not accurately from the indicator color, SPD age or number of thunderstorms alone.

Surge severity varies considerably, and a simple green/red indicator is not a remaining-life meter.

Can I test SPD protection using a standard multimeter?

A standard multimeter cannot reproduce standardized surge conditions or verify the complete surge-performance ratings of an SPD.

Use manufacturer-approved inspection or test methods.

Is a green SPD maintenance-free?

No electrical protection device should be treated as permanently maintenance-free simply because its indicator remains green.

Include SPD status in the installation’s appropriate periodic inspection and maintenance process according to manufacturer instructions and local requirements.

Conclusion

Seeing an SPD green indicator is generally a positive sign when the manufacturer defines green as the normal operating status.

But it should be interpreted correctly.

For an SPD whose manufacturer defines green as normal, the safest conclusion is:

The monitored SPD module has not reported its defined failure condition and remains in its indicated available state.

That is useful information.

It is not the same as proving that the complete surge protection system is perfect.

Real protection also depends on:

correct SPD selection,

correct voltage rating,

appropriate SPD Type,

proper wiring,

short and direct connections,

correct earthing and bonding,

backup protection,

coordination,

and the physical condition of the installation.

So the next time you look at a green SPD, do not ask only:

“Is the indicator green?”

Ask:

“Is the SPD green — and is the entire protection path designed and installed correctly?”

That is a much better way to judge whether your solar PV system is truly prepared for transient overvoltages.
