A solar inverter built-in SPD can provide important surge protection, but seeing “DC Type II SPD” on the datasheet does not automatically mean the entire PV system is protected.

Sometimes the specification even says:

Built-in Type II DC & AC SPD

At first, the conclusion seems obvious:

“The inverter already has surge protection. Why would I install another SPD?”

Then you look at a PV combiner box and find another DC SPD inside.

Or an installer tells you that an additional SPD should be installed near the PV array.

Now the question becomes confusing.

Are two SPDs doing the same job?

Is the external SPD unnecessary?

Or does the SPD inside the inverter only protect part of the PV system?

Quick Answer

A built-in DC SPD does not automatically mean that no external SPD is needed.

The real answer depends on:

• what type of SPD is actually built into the inverter;
• whether it is installed on the DC side, AC side, or both;
• the distance between the PV array and inverter;
• whether a PV combiner box is used;
• whether the building has an external lightning protection system;
• whether the required separation distance can be maintained;
• and what the inverter manufacturer and applicable project requirements specify.

The key question is therefore not:

“Does my inverter have an SPD?”

A better question is:

“Where is the SPD, what part of the system does it protect, and what happens before a surge reaches that point?”

That change in thinking makes this topic much easier to understand.

Built-In SPD: What It Tells You — and What It Does Not

When reading an inverter datasheet, the words “built-in SPD” provide useful information, but they do not tell you everything you need to know.

This is the first practical lesson:

Seeing “SPD” in an inverter datasheet is only the first step. Check the SPD type, whether it is installed on the DC or AC side, and its actual technical specifications.

30-Second SPD Label Review

Before we talk about built-in inverter SPDs, let’s quickly review a real DC SPD label.

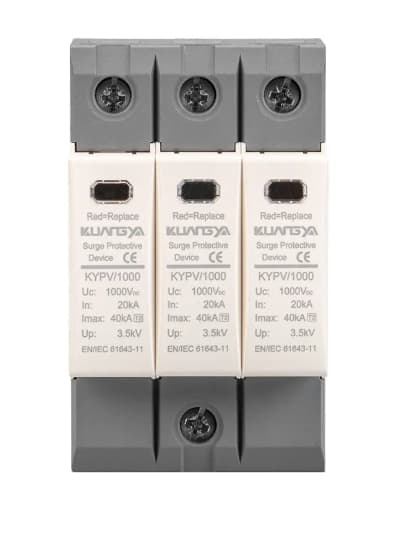

Can you identify the key values on this real KUANGYA 1000V Type 2 DC SPD?

1. Which value shows the maximum continuous operating voltage of this DC SPD?

Up: 3.5kV Uc: 1000Vdc Imax: 40kA In: 20kA

Correct answer: Uc: 1000Vdc

Uc indicates the maximum continuous operating voltage that this SPD is designed to withstand.

2. Which value shows the maximum discharge current of this Type 2 SPD?

Uc: 1000Vdc Up: 3.5kV Imax: 40kA EN/IEC 61643-11

Correct answer: Imax: 40kA

Imax is the maximum discharge current the Type 2 SPD can withstand under its specified test conditions.

3. Which value tells you the voltage protection level?

In: 20kA Up: 3.5kV Uc: 1000Vdc KYPV/1000

Correct answer: Up: 3.5kV

Up is the voltage protection level. It indicates the voltage level that may remain across the SPD terminals while it is limiting a surge.

Not sure about these markings?

Our previous guide explains Uc, In, Imax, Up and other DC SPD label values in more detail.

How to Read a DC SPD Label: Class II, Ucpv, In, Imax, Up & Iscpv Explained →

Try Again

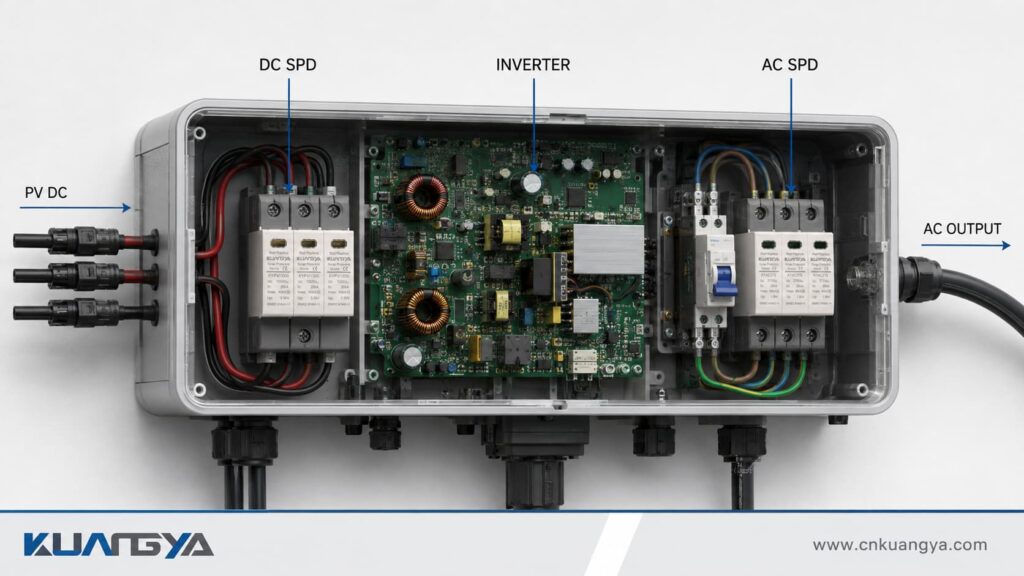

What Does a Solar Inverter Built-In SPD Actually Protect?

A built-in DC SPD normally means that surge protection has been integrated into the DC input side of the inverter.

But inverter designs are not all the same.

Some manufacturers install Type 2 protection as standard.

Some products have protection on both the DC and AC sides.

Some commercial models use Type 1+2 protection on the DC side.

Some inverter platforms allow the SPD to be ordered pre-installed or retrofitted later.

This means you should always check the exact inverter model, rather than assuming that every inverter from one manufacturer uses the same protection arrangement.

A useful inverter manual or datasheet should help you identify several things:

Is the SPD on the DC side or AC side?

This is fundamental.

The PV array feeds the inverter through the DC side.

The inverter connects to the distribution system through the AC side.

An AC SPD does not simply become DC-side protection because it is installed inside the same inverter enclosure.

What SPD type is installed?

Look for:

• Type 1
• Type 2
• Type 1+2

Not sure how these types differ? See our Type 1 vs Type 2 vs Type 1+2 DC SPD comparison.

Do not replace this question with:

“Which one has the largest kA number?”

The SPD type tells you something different from the discharge-current rating.

Is the SPD replaceable?

This is especially important for maintenance.

Some integrated SPDs use replaceable modules or cartridges. Others require specific service procedures.

Fronius, for example, states in its Verto documentation that when the SPD has operated, its mechanical indicator changes from green to red and the triggered SPD must be replaced to maintain the full protective function.

So “built-in” does not mean “maintenance-free forever.”

Real Inverters Show Why “Built-In SPD” Is Not One Standard Configuration

Rather than inventing hypothetical inverter specifications, let us look at several real products and their official published documentation.

Real-World Inverter Examples

These examples are useful because they show something that a generic statement like “modern inverters have SPD” cannot explain.

Different real inverters use different protection concepts.

For example, Sungrow’s current SG3.0RS-L product information specifies built-in Type II DC & AC SPD.

But Sungrow’s SG30CX-P2 and SG50CX-P2 datasheet lists DC Type I+II / AC Type II.

The conclusion is simple:

“My inverter has an SPD” is only the beginning of the conversation.

Check three things next:

What type is it?
DC side or AC side?
Where is it installed?

Why SPD Location Can Matter More Than SPD Quantity

A common way to think about surge protection is:

One SPD = protected
Two SPDs = more protected

That is not a good design principle.

Two SPDs installed at the wrong places do not automatically create better protection than one correctly positioned and coordinated system.

The better question is:

Where is the surge protective device in relation to the equipment and cable route that need protection?

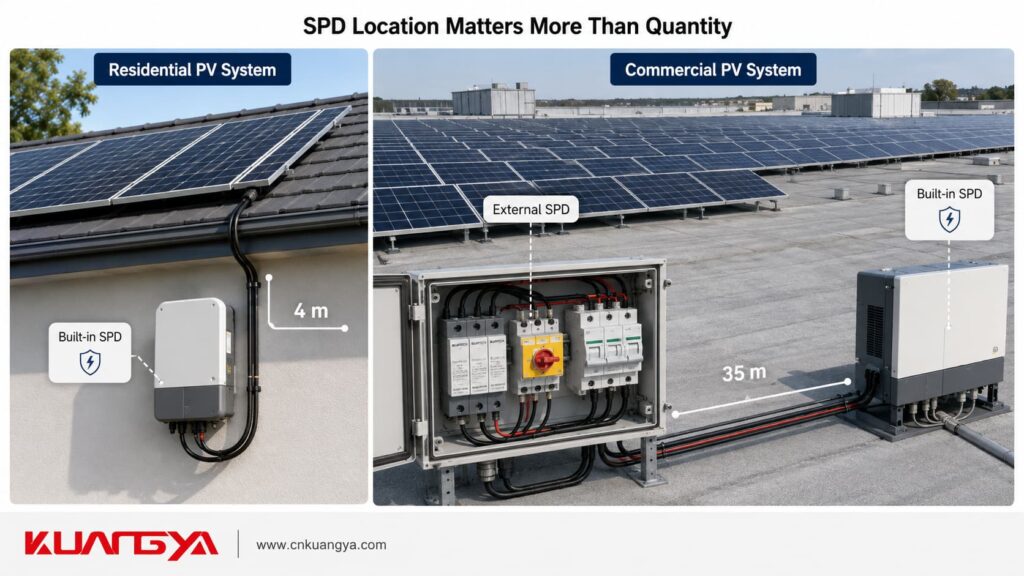

Consider these two simplified systems.

System A

PV array → 4 m DC cable → inverter with built-in Type 2 SPD

System B

PV array → 35 m DC cable → building entry → inverter with built-in Type 2 SPD

The inverter may be exactly the same.

The built-in SPD may also be exactly the same.

But the installation is not the same.

In System B, a much longer outdoor DC cable exists between the PV array and the inverter.

That changes the surge-protection problem.

Why Does Cable Distance Matter?

PV systems often contain long conductors exposed across rooftops, facades, open ground or industrial buildings.

During nearby lightning activity, electromagnetic effects can induce transient overvoltages into those conductors.

A surge does not have to arrive only from the utility grid.

This means that long PV cable routes must be considered as part of the protection concept.

If the only SPD is located inside the inverter, that protective point is located at one end of the cable.

It does not physically move closer to the PV modules because the inverter manufacturer integrated it into the enclosure.

This is why published PV surge-protection guidance considers not only what SPD is used, but also where it is installed.

Phoenix Contact’s current PV guidance identifies the DC side of the inverter as an additional protection location when the cable length to the PV panels is 10 m or more, and also identifies another protection position near the PV panels or building entrance.

Its technical guidance also states that if the cable length between PV panels and inverter exceeds 10 m, an additional protection device should be installed at the other end of the cable near the PV panels.

DEHN publishes similar rooftop PV guidance, stating that if more than 10 m of cable exists between the PV system and inverter, a further arrester is required in the roof area for the arrangement it describes.

Does That Mean 10.1 m Always Requires Two SPDs Everywhere?

No.

This is where technical articles often become misleading.

You should not take “10 m” and turn it into a universal sentence such as:

“Every PV system longer than 10 meters must always have exactly two Type 2 SPDs.”

The actual design still depends on:

• applicable standards;
• local electrical requirements;
• external lightning protection;
• separation distance;
• system architecture;
• manufacturer instructions;
• and project specifications.

The useful lesson is simpler:

Around this distance, cable length stops being something you should ignore and becomes an important design consideration.

A Practical Distance Table

The important point is that distance affects location decisions, not merely product quantity.

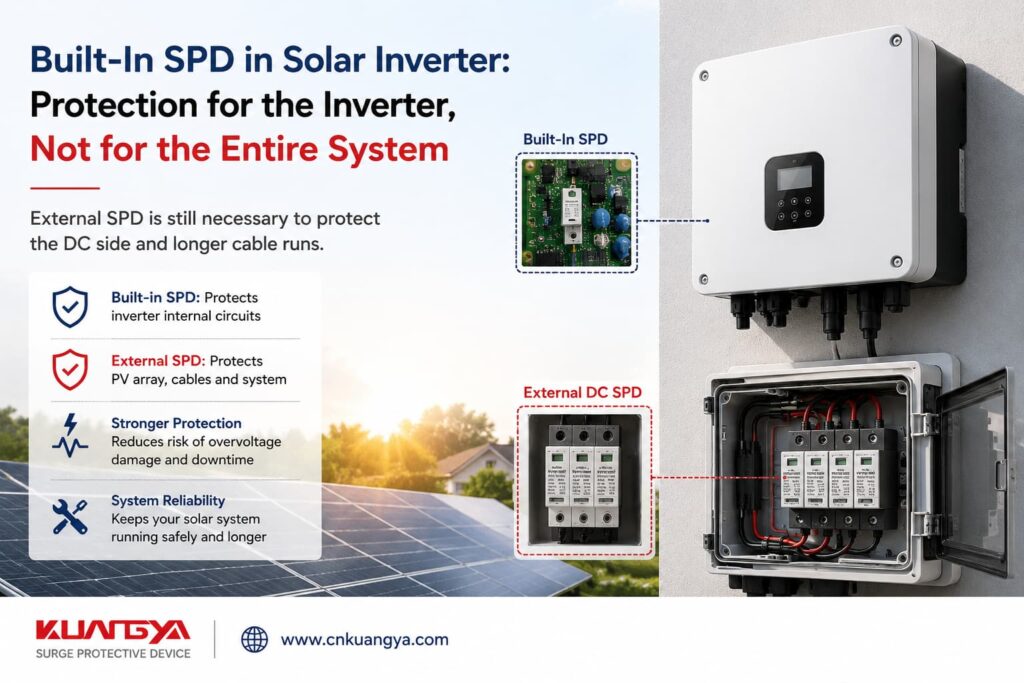

What About a PV Combiner Box?

A combiner box is another reason why you should inspect the whole PV system before ordering another SPD.

Imagine a project where the inverter datasheet says:

Built-in DC Type 2 SPD

A buyer may then request another external Type 2 SPD because they assume the array side has no protection.

But the project’s combiner box may already include:

• string fuses;
• DC isolator;
• DC SPD;
• monitoring;
• and other protective components.

In that situation, surge protection may already exist at more than one point.

So before buying another SPD, ask:

“Is there already an SPD inside the combiner box?”

This sounds obvious, but in real purchasing work, different components are often quoted by different suppliers.

The inverter may come from one manufacturer.

The combiner box comes from another.

The electrical protection devices come from a third.

A buyer looking only at individual product datasheets can easily lose sight of the complete single-line diagram.

External Lightning Protection Changes the Answer

Now consider a building with an external lightning protection system.

This can include:

• air terminals;
• lightning conductors;
• down conductors;
• bonding;
• and an earthing system designed as part of a lightning protection concept.

At this point, the question:

“Do I need one more Type 2 SPD?”

may be too simple.

One critical factor is whether the required separation distance between the PV installation and the external lightning protection system can be maintained.

Phoenix Contact’s current PV guidance distinguishes between systems:

1. without external lightning protection;
2. with external lightning protection where separation distance is maintained;
3. and with external lightning protection where separation distance is not maintained.

For the DC side, its published selection table shows Type 2 protection where separation distance is maintained, while Type 1 protection is specified for the relevant protection positions when separation distance is not maintained.

So if your building has external lightning protection, do not simply ask:

“Should I add another SPD?”

Ask:

“What lightning protection concept applies to this building, and can the required separation distance be maintained?”

That question is much more useful.

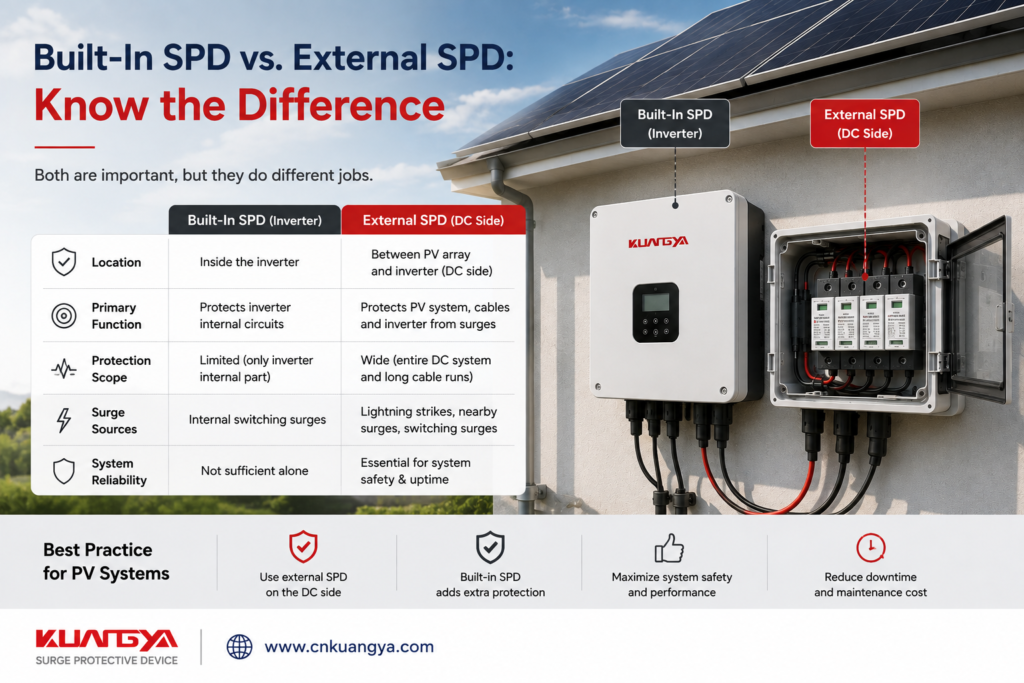

Built-In SPD vs External SPD

It is easy to assume that one must be better than the other.

That is not really the point.

Built-In SPD

Advantages can include:

• protection very close to inverter electronics;
• compact integration;
• shorter internal connections;
• easier equipment packaging;
• and, depending on the inverter design, monitoring or replaceable modules.

Its main limitation is obvious:

its location is fixed inside or directly at the inverter.

External SPD

An external SPD can be installed where the system design requires another protection point.

Typical locations include:

• PV combiner box;
• near the PV array;
• building entrance;
• external DC protection box;
• near the inverter;
• AC distribution board.

So instead of asking:

“Is an external SPD better than the inverter’s built-in SPD?”

ask:

“Which protection locations does this installation require, and which of those locations are already covered?”

That is the more professional question.

A Real Manufacturer Example: Why the SPD Is Part of a Larger Protection Concept

Fronius describes the SPD in its Verto documentation as contributing to the protection of PV system components as part of an overall lightning protection concept. It also specifies maintenance behavior: when the SPD has operated, the mechanical status indication changes from green to red and the device should be replaced to maintain protection.

This is an important practical idea.

The inverter’s SPD is not a magical shield around the entire PV installation.

It is one protective component inside a larger electrical protection concept.

That concept includes:

• surge protection;
• earthing;
• equipotential bonding;
• conductor routing;
• lightning protection where applicable;
• overcurrent protection;
• correct installation;
• and maintenance.

This is why the answer cannot come from one specification line alone.

Three Installation Scenarios

The following are illustrative installation scenarios, not claimed customer projects. They are designed to show how the same inverter specification can lead to different questions.

Scenario A: Small Residential Rooftop

System:

• residential rooftop PV;
• string inverter;
• built-in DC Type 2 SPD;
• PV array approximately 5 m from inverter;
• no external lightning protection system;
• no remote combiner box.

In this situation, it would be wrong to automatically say:

“You definitely need another external Type 2 SPD.”

Instead, check:

• the inverter manual;
• the built-in SPD specification;
• local requirements;
• earthing;
• actual cable routing;
• and whether another SPD is already present elsewhere.

A short and simple installation is very different from a large commercial rooftop.

Scenario B: Commercial Rooftop with a 35 m DC Cable Route

System:

• large PV array;
• remote combiner box;
• inverter room inside the building;
• approximately 35 m DC cable route;
• inverter includes DC Type 2 protection.

Now the situation is different.

The built-in SPD provides protection at the inverter end.

But there is a long DC route between the array and inverter.

This is precisely the type of installation where published manufacturer guidance about additional protection locations on long cable runs becomes relevant.

The correct question becomes:

“Is coordinated surge protection also required near the array or combiner box?”

Not:

“Does the inverter have an SPD?”

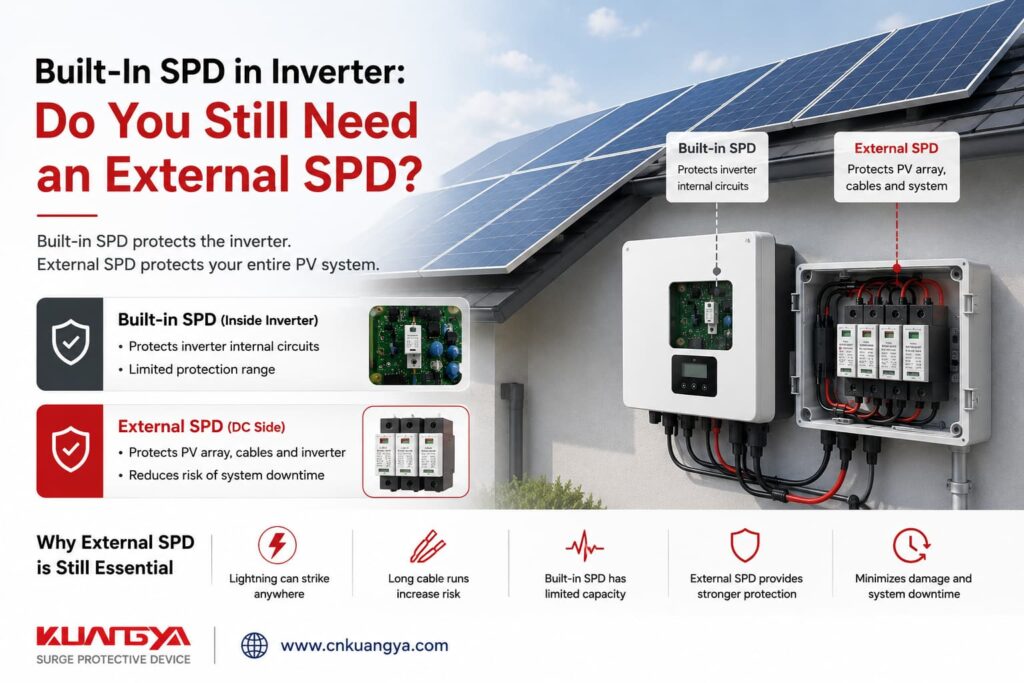

Scenario C: Rooftop PV with External Lightning Protection

System:

• commercial building;
• external lightning protection system;
• rooftop PV;
• inverter includes DC Type 2 protection.

Before deciding whether to add another Type 2 SPD, you need another piece of information:

Can the required separation distance be maintained?

If it cannot, the required protection concept may involve Type 1 protection at relevant locations rather than simply duplicating Type 2 devices. Phoenix Contact’s published PV guidance explicitly distinguishes these conditions.

The presence of a built-in Type 2 SPD therefore does not answer the whole lightning-protection question.

Does AC Type 2 SPD Protect the PV DC Side?

No.

This is one of the easiest misunderstandings to avoid.

A modern inverter may have:

DC SPD: Type II

and

AC SPD: Type II

because the DC and AC sides are separate electrical paths.

The PV array reaches the inverter through DC conductors.

The grid or AC distribution system connects through the inverter AC side.

Surges can reach equipment through different paths.

Real inverter datasheets demonstrate this separation clearly.

For example, Sungrow’s SG30CX-P2 / SG50CX-P2 specification lists the DC and AC surge protection separately: DC Type I+II / AC Type II.

That would make little sense if one SPD automatically protected both sides.

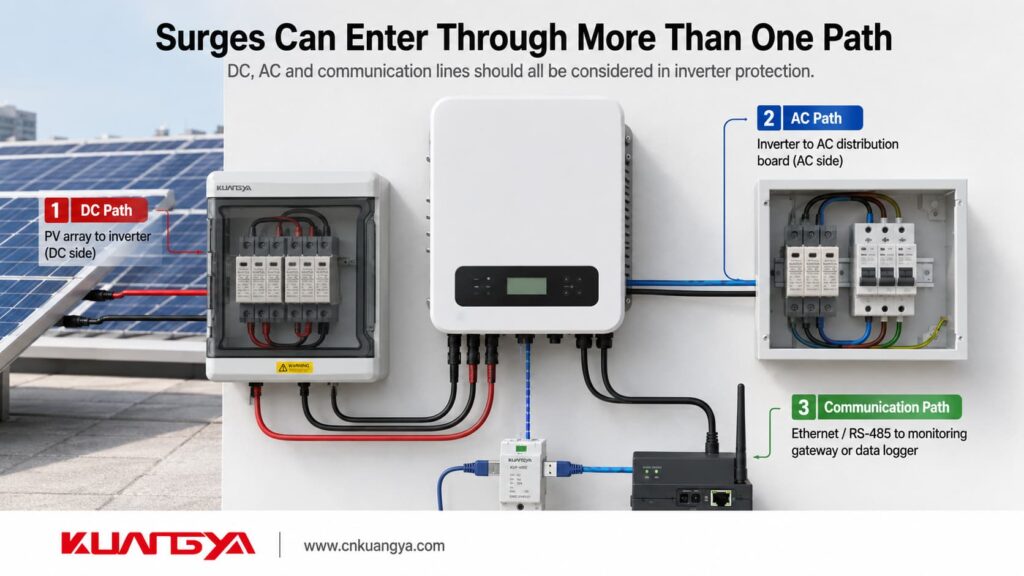

There Is Another Path People Forget: Communication Lines

Power cables are not the only conductors connected to modern PV systems.

An inverter may also use:

• RS-485;
• Ethernet;
• weather station connections;
• digital inputs;
• monitoring cables;
• control signals;
• power-management communication.

Phoenix Contact specifically points out that overvoltages can also enter inverter electronics through network or control interfaces and recommends considering surge protection for communication interfaces such as Ethernet, RS-485 and weather-station connections.

This is a useful reminder:

“My DC and AC sides both have SPDs” still does not necessarily mean every electrical path entering sensitive equipment has been considered.

Common Misunderstandings

Can I Simply Add More SPDs to Be Safe?

Not necessarily.

Surge protection should be coordinated, not accumulated randomly.

Installing another SPD without considering:

• SPD type;
• voltage;
• installation point;
• conductor routing;
• earthing;
• protection level;
• distance;
• upstream and downstream devices;
• and manufacturer instructions

does not automatically improve the installation.

Imagine putting two Type 2 SPDs next to each other inside the same cabinet when the actual problem is a 40 m cable route from a remote PV array.

You have increased the number of SPDs.

But you may not have solved the real problem.

This is why good design starts with the system layout.

Do Not Forget SPD Wiring

Even a correctly selected SPD can lose effectiveness if its installation is poor.

During a surge event, connection conductors are not electrically “invisible.”

Long or unnecessarily looped conductors add inductive voltage.

This means two systems can use exactly the same SPD but achieve different real protection performance.

Installation A

SPD located close to the protected equipment with short, direct conductors.

Installation B

Same SPD, but connected through long looping conductors inside the cabinet.

The product label is identical.

The installation is not.

This is why selecting a device only by looking at:

1000 V

20 kA

40 kA

is incomplete.

The SPD and its installation must work together.

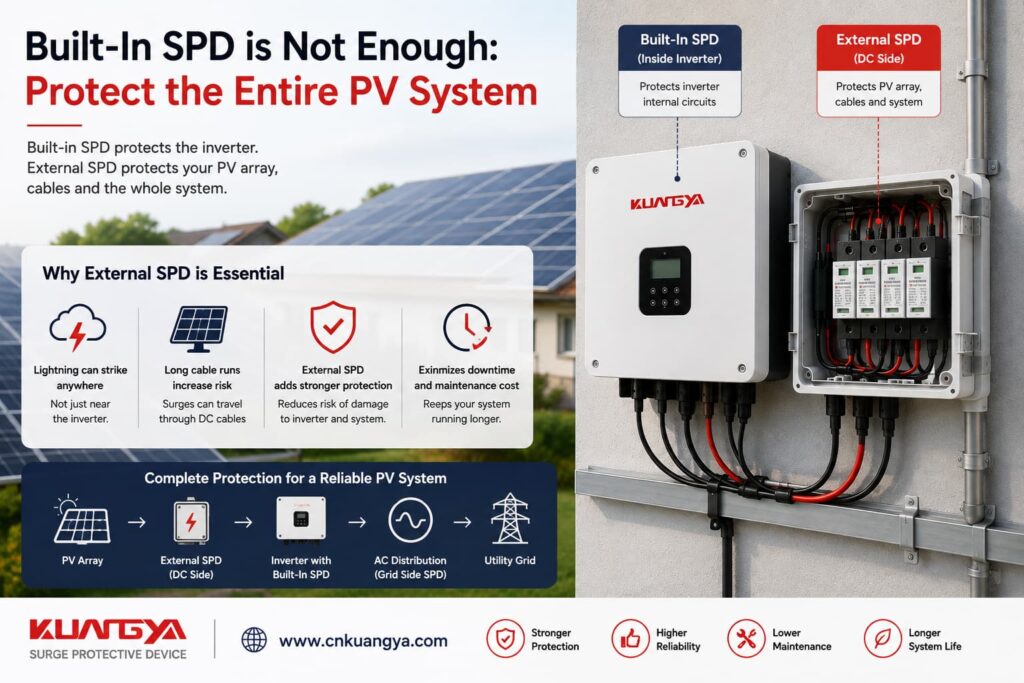

Before Buying Another SPD: Check These 7 Things

This is the checklist worth saving.

If you can provide these seven pieces of information, an installer or SPD supplier can give you a much more useful answer.

A Simple Decision Flow

Step 1 — Does the inverter have a clearly specified DC SPD?

No

Evaluate DC-side surge protection for the PV installation.

Yes

Continue to Step 2.

Step 2 — What type is it?

Check:

Type 1

Type 2

or

Type 1+2

Do not guess from the size of the inverter.

Use the actual datasheet.

Step 3 — Where is it installed?

If it is built into the inverter, you have a protection point at the inverter.

Now look at the rest of the DC cable route.

Step 4 — How far is the PV array from the inverter?

If the cable route is short, check the inverter instructions and applicable installation requirements before adding another device.

If the cable route is long, evaluate whether another coordinated protection point is required closer to the PV array or combiner box.

Published PV guidance from Phoenix Contact and DEHN specifically treats longer cable distances as a reason to consider protection at additional locations.

Step 5 — Is external lightning protection installed?

No

Continue with the applicable surge-protection design for the PV installation.

Yes

Check whether the required separation distance can be maintained.

If it cannot, Type 1 protection may become relevant at the applicable installation points.

Step 6 — Is another SPD already installed?

Check:

• PV combiner box;
• array-side protection enclosure;
• inverter DC protection box;
• main distribution;
• AC distribution;
• building entry point.

Do not add products based on assumptions.

Check the actual system.

Real Example: Same Manufacturer, Different Answer

This is perhaps the easiest way to understand why checking the exact model matters.

Consider two real Sungrow inverter families.

Sungrow SG3.0RS-L

The current official product page states:

Built-in Type II DC & AC SPD.

Now consider:

Sungrow SG30CX-P2 / SG50CX-P2

The official datasheet specifies:

DC Type I+II / AC Type II.

Both products are Sungrow inverters.

Both include surge protection.

But the published DC SPD configuration is not the same.

That alone shows why questions such as:

“Does a Sungrow inverter already have an SPD?”

are too broad.

The correct question is:

“Which Sungrow model, and what does its datasheet specify?”

The same principle applies to other manufacturers.

What Information Should You Send an SPD Supplier?

If you are a purchaser, distributor or project buyer, you do not need to design the complete lightning protection system yourself.

But sending the correct information can dramatically improve the quality of the recommendation you receive.

Instead of sending:

“Need 1000V 40kA SPD. Please quote.”

send:

PV system information

• Maximum PV system voltage
• Maximum string Voc if available
• Inverter brand and model
• Built-in SPD specification
• Approximate PV-to-inverter cable distance
• Combiner box information
• External lightning protection: yes/no
• Required SPD installation position
• Quantity
• Applicable standard or project requirement

Why is this better?

Because:

1000V + 40kA

does not tell the supplier whether the SPD is intended:

• near the inverter;
• in a combiner box;
• near the array;
• in a system with external lightning protection;
• or as part of a Type 1+2 protection concept.

A specification is useful only when it is connected to an application.

FAQ

1. My inverter already has a DC Type 2 SPD. Do I always need another external SPD?

No.

The correct decision depends on the complete installation.

Cable distance, SPD location, combiner-box configuration, external lightning protection, separation distance and manufacturer requirements should all be considered.

Do not automatically add another SPD, but do not automatically remove external protection simply because the inverter includes one.

2. If the inverter and PV array are more than 10 m apart, do I always need exactly two SPDs?

Do not treat the number as an isolated universal rule.

However, 10 m is an important design threshold in published PV surge-protection guidance.

Phoenix Contact identifies additional DC-side protection locations where the distance between the inverter and PV panels is 10 m or more, while DEHN likewise identifies additional protection on longer cable routes in its rooftop PV guidance.

Use the distance as a reason to evaluate the system—not as a substitute for engineering judgment or applicable requirements.

3. Does an AC Type 2 SPD inside the inverter protect the DC side?

No.

AC and PV DC are separate electrical paths.

Check the datasheet specifically for DC SPD, PV SPD, or the manufacturer’s equivalent terminology.

4. Is Type 1+2 always better than Type 2?

Not simply because it sounds like a higher number.

Type 1+2 and Type 2 are intended for different surge and lightning-protection conditions.

For example, Phoenix Contact’s PV guidance differentiates SPD type according to whether external lightning protection is present and whether separation distance is maintained.

Select the appropriate type for the installation rather than choosing by label alone.

5. If my combiner box already has an SPD, do I still need the inverter’s built-in SPD?

Possibly.

The two devices may be protecting different points along a longer cable route.

This is exactly why you should evaluate the distance and location relationship rather than asking which one of the two devices is unnecessary.

6. Can a built-in inverter SPD fail?

Yes.

SPDs are protective components and can reach end of life after electrical stress.

Fronius, for example, documents a mechanical status indication that changes from green to red when its SPD is triggered and states that the SPD should then be replaced to maintain protection.

Always follow the inverter manufacturer’s inspection and replacement instructions.

7. What if the inverter datasheet only says “surge protection”?

Look deeper into the technical documentation.

Try to confirm:

• DC or AC side;
• SPD type;
• relevant voltage rating;
• discharge characteristics;
• replaceability;
• and whether the function is standard or optional.

Do not assume that every use of the phrase “surge protection” describes the same device.

The Most Important Lesson: Stop Looking Only at the Inverter

It is natural to focus on the inverter.

It is one of the most valuable and technically complex components in a PV system.

But a solar installation is larger than the inverter.

Think about the complete path:

PV modules

↓

DC string cables

↓

combiner or protection equipment

↓

long DC cable route

↓

inverter DC input

↓

inverter

↓

AC output

↓

distribution system

and possibly:

Ethernet / RS-485 / monitoring / control lines

A solar inverter built-in SPD sits at one protection point within this larger system. It should therefore be evaluated together with the PV cables, combiner equipment, AC side and other relevant protection locations.

That is why the best question is not:

“How many SPDs do I have?”

It is:

“Where can transient overvoltage enter this system, and where should it be limited before it reaches sensitive equipment?”

Once you start thinking this way, the confusing question of “internal SPD versus external SPD” becomes much easier.

They are not necessarily competitors.

They may be parts of the same coordinated protection concept.

Final Takeaway

Seeing:

“DC SPD Type II Built-In”

on an inverter datasheet is useful information.

But it is not the end of your surge-protection assessment.

Before deciding whether an external SPD is necessary, check four things first:

1. What SPD is actually built into the inverter?

DC, AC, Type 1, Type 2 or Type 1+2?

2. Where is it?

A built-in SPD provides a protection point at the inverter. Consider what exists between that point and the PV array.

3. How long is the cable route?

Cable distance can change whether another protection location needs to be evaluated.

4. Is external lightning protection involved?

If yes, the lightning protection concept and separation distance become important.

If you can answer these four questions, you are already making a much better decision than someone who simply reads:

“Built-in SPD”

and stops there.

And if terms such as Ucpv, In, Imax, Up and Iscpv still look confusing, learn how to read the SPD label before comparing different devices.

Related Guide: How to Read a DC SPD Label: Class II, Ucpv, In, Imax, Up & Iscpv Explained

Need Help Checking a PV SPD Application?

KUANGYA manufactures surge protective devices for photovoltaic DC applications.

If you are unsure which SPD configuration fits your project, you can provide:

• PV system voltage;
• inverter brand and model;
• existing built-in SPD information;
• cable distance;
• intended installation position;
• required SPD type, if specified;
• and project quantity.

This allows the application to be checked before selecting a specification based only on voltage and kA values.
