Last Updated: July 14, 2026 | Version 1.0

TL;DR: What Engineers Need to Know

A reliable solar power system does not depend on one protective device. Effective Solar PV Electrical Protection requires coordinated protection across the entire DC path—from the PV modules and strings to the combiner box, inverter, and AC distribution system.

The basic protection logic is:

PV Module → PV String → gPV Fuse → Combiner Box → DC SPD → DC Isolator → Inverter → AC Protection

Each component addresses a different electrical risk:

• gPV fuses protect PV strings and conductors against dangerous reverse overcurrents.
• DC surge protective devices (SPDs) limit transient overvoltages caused by lightning and switching events.
• DC isolator switches provide safe electrical disconnection for maintenance and emergencies.
• PV combiner boxes integrate string connections and multiple protective functions into a coordinated enclosure.
• Inverter-side protection helps prevent a local electrical event from becoming a system-wide failure.

The most important engineering principle is simple:

A fuse cannot replace an SPD. An SPD cannot replace a fuse. A DC isolator is not an overcurrent protection device, and a combiner box is only as safe as the components and coordination inside it.

Modern PV array design is addressed by IEC 62548-1:2023+AMD1:2025, which covers PV array wiring, electrical protection, switching and earthing provisions. The current consolidated publication is IEC 62548-1:2023 with Amendment 1:2025. IEC 60364-7-712:2025 addresses electrical installation requirements associated with PV power supply installations.

This guide explains how these protection functions work together and how engineers, EPC contractors, system integrators and electrical designers can build a more coordinated PV protection architecture.

Table of Contents

1. What Is Solar PV Electrical Protection?
2. Why PV Systems Require a Different Protection Strategy
3. The Complete PV Electrical Protection Architecture
4. Layer 1: PV String and gPV Fuse Protection
5. Layer 2: Surge Protection Devices for Solar PV Systems
6. Layer 3: DC Isolator Switches
7. Layer 4: PV Combiner Box Protection
8. Layer 5: Protecting the Solar Inverter
9. How SPD, Fuse, DC Isolator and Combiner Box Coordination Works
10. Solar PV Electrical Protection for 1000V and 1500V DC Systems
11. Common Solar PV Protection Design Mistakes
12. A Practical PV Protection Selection Workflow
13. Inspection and Maintenance
14. Solar PV Electrical Protection Checklist
15. Frequently Asked Questions
16. Final Engineering Recommendations

1. What Is Solar PV Electrical Protection?

Solar PV Electrical Protection is the coordinated application of electrical protective devices and design measures used to reduce the risks created by overcurrent, short circuits, reverse current, transient overvoltage, insulation failure, switching operations, electrical arcing and equipment faults in photovoltaic systems.

A PV installation is not simply a group of solar panels connected to an inverter.

It is an electrical generation system with unique operating characteristics.

Unlike a conventional AC load circuit, a photovoltaic array produces electricity whenever sufficient sunlight is available. The DC side may therefore remain energized even when the AC supply has been disconnected.

This difference has major consequences for protection design.

A complete protection strategy must consider:

• Maximum PV array voltage
• Maximum operating current
• Module short-circuit current
• Number of parallel strings
• Potential reverse current
• Cable current-carrying capacity
• Maximum system voltage
• Inverter electrical ratings
• Lightning exposure
• Cable routing
• Earthing arrangement
• Environmental conditions
• Required disconnection points
• Local electrical regulations
• Maintenance procedures

No single protective component can manage all these risks.

A well-designed system uses several protection layers, with each device performing a specific function.

That is the foundation of coordinated Solar PV Electrical Protection.

2. Why PV Systems Require a Different Protection Strategy

Photovoltaic systems create several electrical conditions that are fundamentally different from normal building circuits.

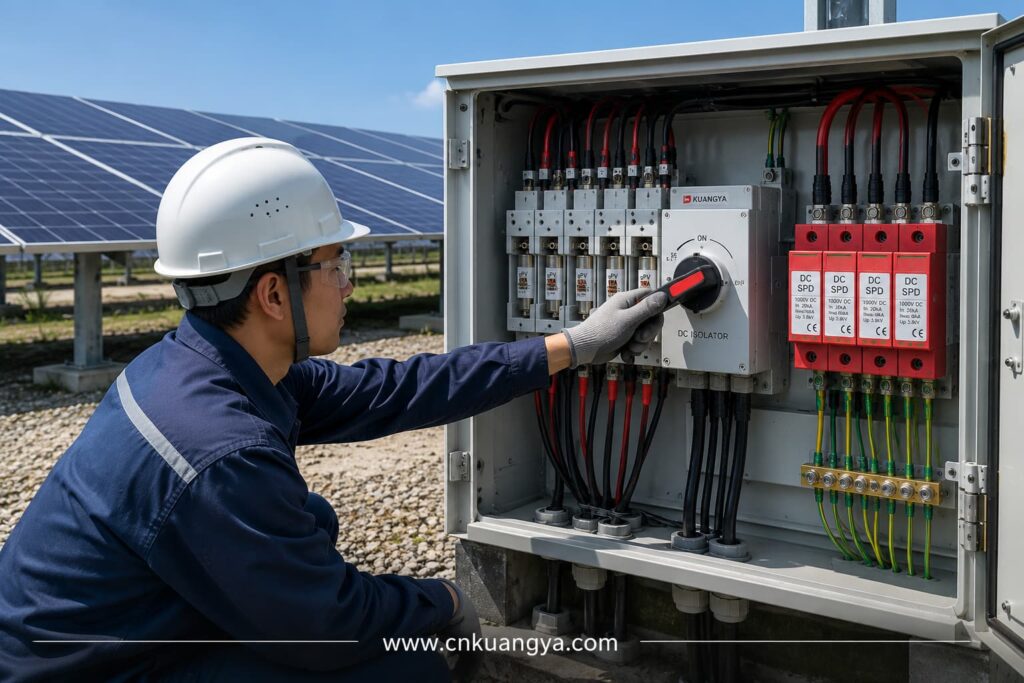

2.1 The DC Side Can Remain Energized

Opening the main AC breaker does not necessarily remove voltage from the PV array.

When sunlight reaches the modules, strings can continue to generate DC voltage.

Maintenance personnel may therefore encounter live conductors between:

• PV modules
• String cables
• Combiner boxes
• DC distribution equipment
• Inverter DC inputs

This is why appropriate isolation, labeling, equipment selection and maintenance procedures are essential.

2.2 DC Arcs Are More Difficult to Interrupt

Alternating current naturally passes through zero twice during each electrical cycle. This natural current zero can assist arc extinction.

DC current does not have the same periodic zero crossing.

As a result, switching devices intended for AC applications should not automatically be assumed suitable for high-voltage PV DC circuits.

A device used on a 1000V or 1500V DC system must be specifically designed and rated for the relevant DC voltage, current and switching duty.

This applies to:

• DC isolators
• DC circuit breakers
• Fuse holders
• Fuses
• Contactors
• Disconnectors
• Other switching equipment

Incorrect DC switch-disconnector selection can result in overheating, failure to interrupt current or sustained electrical arcing.

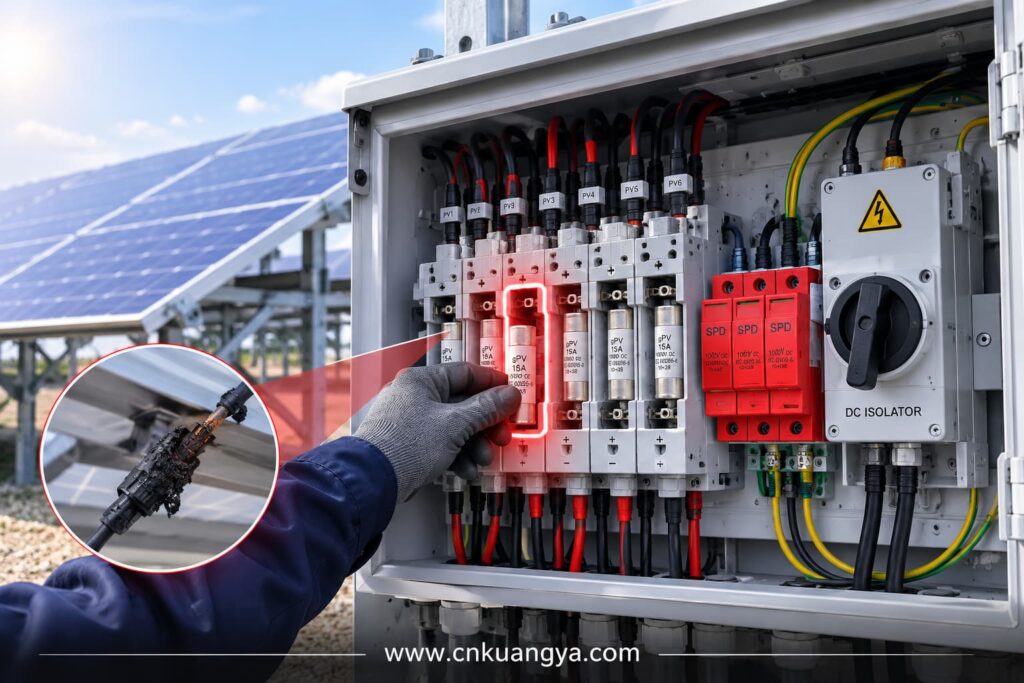

2.3 Parallel PV Strings Can Create Reverse Current

A single PV string has limited fault current.

However, when multiple strings are connected in parallel, healthy strings may feed current into a faulted string.

This reverse current can exceed:

• Cable current-carrying capacity
• Connector ratings
• Module protection limits

This is one of the main reasons gPV string fuses are used in larger PV arrays.

The engineering question is not simply:

“How much current does one solar panel produce?”

The more important question is:

“How much fault current could the other parallel strings deliver into one damaged string?”

That difference is central to proper fuse coordination.

2.4 PV Systems Are Highly Exposed to Lightning-Induced Surges

Solar installations often include:

• Large outdoor arrays
• Long DC cable routes
• Rooftop conductors
• Ground-mounted structures
• External communication cables
• Inverters connected to both DC and AC networks

These characteristics can increase exposure to transient overvoltages.

A nearby lightning event does not have to strike a solar panel directly to create damaging voltage impulses.

Electromagnetic coupling into long conductors can produce transient overvoltages capable of stressing:

• Inverter input circuits
• Monitoring systems
• Communication equipment
• Control electronics
• Insulation
• Other sensitive components

This is why surge protection must be considered as a system design issue rather than simply an optional accessory.

2.5 PV Equipment Operates Outdoors for Long Periods

Electrical components in PV systems may be exposed to:

• High ambient temperature
• Solar radiation
• Dust
• Humidity
• Condensation
• Salt mist
• Mechanical vibration
• Repeated thermal cycling
• Water ingress
• Insects and contamination

A protection device that is correctly rated electrically can still fail if the installation environment is ignored.

Reliable Solar PV Electrical Protection therefore depends on both electrical coordination and suitable environmental design.

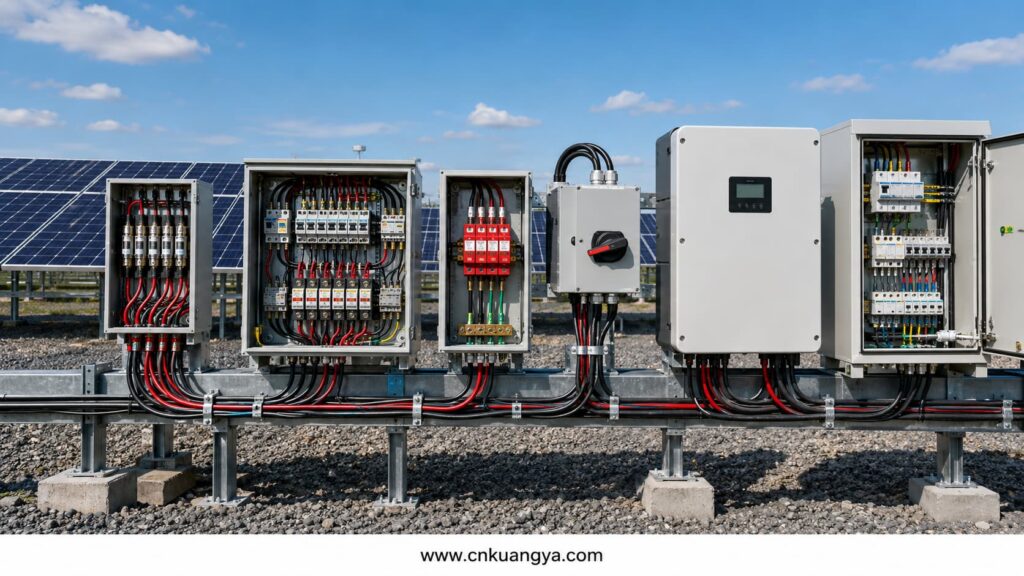

3. The Complete PV Electrical Protection Architecture

A simplified PV protection path can be represented as follows:

PV Modules
↓
PV Strings
↓
String Protection / gPV Fuses
↓
PV Combiner Box
↓
DC Surge Protection
↓
DC Isolation
↓
Solar Inverter
↓
AC Surge and Overcurrent Protection
↓
Distribution System / Grid

The exact architecture changes according to system size.

For example, a small residential string inverter system may not use a separate external combiner box.

A large commercial or utility-scale plant may include:

• Hundreds or thousands of PV strings
• Multiple combiner levels
• 1500V DC architecture
• Central inverters
• DC collection systems
• Multiple SPDs
• String monitoring
• Remote disconnect systems

The protection principle, however, remains the same.

Every risk should be assigned to the device designed to control it.

The most common design problems occur when these functions are confused, especially when engineers fail to distinguish between a DC fuse and DC SPD.

4. Layer 1: PV String and gPV Fuse Protection

4.1 What Does a gPV Fuse Protect?

A gPV fuse is specifically intended for photovoltaic applications.

Its purpose is primarily to protect:

• PV strings
• PV array conductors
• Associated DC equipment

against damaging overcurrents under the conditions that can occur in photovoltaic systems.

PV fuse-links are addressed by IEC 60269-6, which provides supplementary requirements for fuse-links used to protect PV strings and arrays in DC circuits up to 1500V.

The designation gPV is important.

A conventional AC fuse should not automatically be substituted for a fuse designed for photovoltaic DC applications.

PV systems can operate under:

• High DC voltage
• Relatively low but continuous current
• Reverse current from parallel strings
• High ambient temperatures
• Repeated daily thermal cycling

The fuse must be designed and tested for the application.

4.2 When Is String Fuse Protection Necessary?

Not every PV string automatically requires a fuse.

The need for string overcurrent protection depends on system design, including:

• Number of parallel strings
• Possible reverse current
• Module maximum series fuse rating
• Cable ampacity
• Equipment ratings
• Applicable standards and local codes

Consider a system with many parallel strings.

If one string develops a short circuit, the remaining strings may contribute reverse current into the faulted circuit.

The fuse should disconnect the faulted string before the current causes unacceptable thermal damage to cables, connectors or modules.

In a system with only one string, or in some limited parallel configurations, the available reverse current may not justify individual string fusing.

Therefore:

The number of PV strings alone should not be used as the only fuse-selection rule.

The engineer must evaluate the possible fault current and the withstand limits of the protected circuit.

4.3 Selecting the Correct gPV Fuse

A proper gPV fuse selection process should consider at least five parameters.

1. Rated DC Voltage

The fuse voltage rating must be suitable for the maximum possible system voltage.

Common PV fuse voltage classes include:

• 1000V DC
• 1500V DC

The selected rating must account for the maximum PV array voltage under expected operating conditions.

Cold weather is particularly important because PV module open-circuit voltage can increase as cell temperature decreases.

A system with a normal operating voltage below 1000V may still experience a higher maximum calculated voltage under low-temperature conditions.

For typical 1000V PV string applications, KUANGYA also provides 10×38 gPV fuse links for solar systems.

2. Rated Current

The fuse current rating should coordinate with:

• String operating current
• Module short-circuit current
• Expected environmental conditions
• Cable ampacity
• Module manufacturer limitations

Selecting a fuse only because its rated current is slightly above normal operating current is not a sufficient engineering method.

The selected fuse must carry legitimate operating current without nuisance operation while still providing meaningful protection during an abnormal overcurrent condition.

3. Maximum Series Fuse Rating of the PV Module

PV module manufacturers generally specify a maximum protective fuse rating or similar limitation.

The selected fuse must not exceed the protection limits established for the module and system design.

A larger fuse may appear to reduce nuisance operation, but oversizing can reduce protection effectiveness.

4. Breaking Capacity

The fuse must be capable of safely interrupting the available fault current.

Although PV string currents are often lower than industrial short-circuit currents on large AC networks, the breaking capacity should still be verified rather than assumed.

5. Environmental Conditions

Fuse performance can be influenced by:

• Enclosure temperature
• Solar heating
• Ventilation
• Grouping of multiple fuse holders
• Installation orientation
• Altitude

A combiner box installed outdoors in a hot climate may experience a much higher internal temperature than the surrounding ambient air.

Protection selection should reflect the actual installation environment.

4.4 Why Oversizing a PV Fuse Is Dangerous

One common mistake is increasing the fuse rating whenever nuisance operation occurs.

This may hide the actual problem.

Repeated fuse operation can indicate:

• Incorrect fuse sizing
• Excessive enclosure temperature
• Poor connection quality
• Mismatched strings
• Damaged modules
• Cable faults
• Incorrect system design

Simply installing a larger fuse can allow damaging current to continue for longer.

Correct protection requires investigation, not automatic upsizing.

5. Layer 2: Surge Protection Devices for Solar PV Systems

5.1 What Does a Solar SPD Do?

A surge protective device limits transient overvoltage by diverting surge current away from sensitive equipment.

On the DC side of a PV installation, SPDs may help protect:

• Inverter DC inputs
• MPPT circuits
• Monitoring equipment
• DC distribution equipment
• Other connected electronics

IEC 61643-31 covers SPDs intended for the DC side of photovoltaic installations up to 1500V DC, while IEC 61643-32 provides principles for SPD selection, installation and coordination in PV systems.

For an overview of the complete standard family, see our guide to IEC 61643 and Surge Protective Devices.

An SPD is not designed to perform the same function as a fuse.

It does not primarily protect against sustained overcurrent.

It responds to transient overvoltage events.

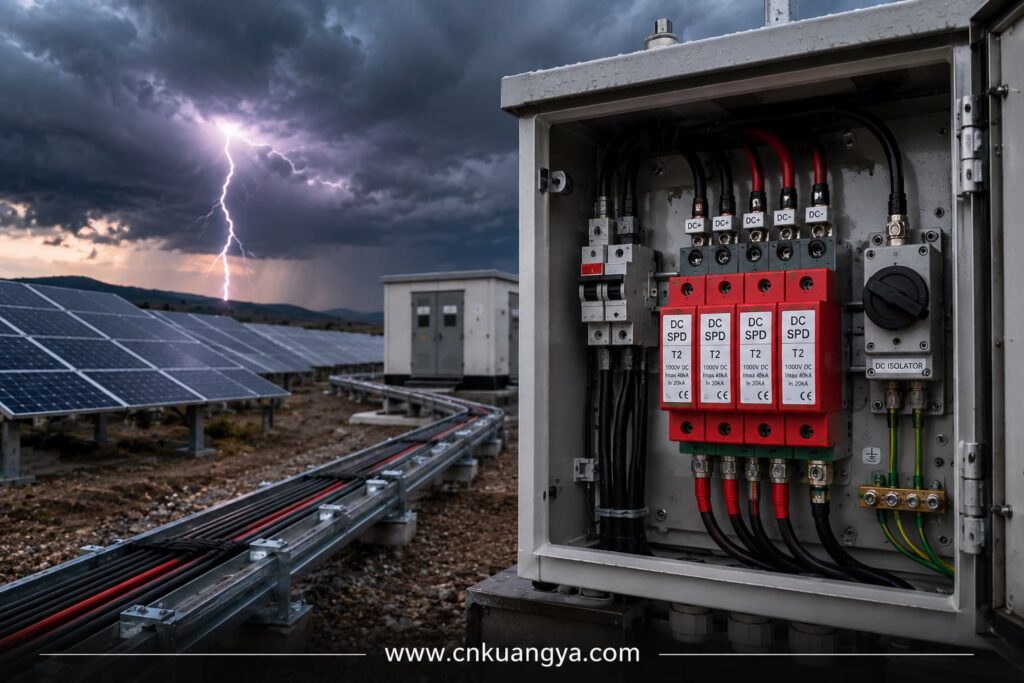

5.2 Where Do PV Surges Come From?

Transient overvoltages may result from:

Nearby Lightning

A lightning strike near a PV installation can induce a surge into long DC conductors through electromagnetic coupling.

Direct Lightning Effects

Systems exposed to direct lightning effects require a broader lightning protection assessment and appropriate coordination between the external lightning protection system and electrical SPDs.

Switching Events

Switching operations within electrical networks can also create transient overvoltages.

Long Cable Routes

Long DC cable routes can increase exposure to induced transient energy and create greater separation between protected equipment and the SPD.

5.3 Type 1 and Type 2 SPD: What Is the Difference?

A simplified distinction is:

Type 1 SPD

Used where the installation must manage partial lightning current or where the lightning protection design requires Type 1 capability.

Type 2 SPD

Used primarily to protect against induced and switching overvoltages.

Many PV installations use Type 2 DC SPDs where the risk assessment and system design do not require Type 1 capability.

However, device type should not be selected only by habit.

The correct choice depends on:

• Lightning protection system
• Installation location
• Risk assessment
• Cable routing
• Building configuration
• Applicable standards

5.4 The Most Important SPD Selection Parameters

Maximum Continuous Operating Voltage

The SPD must withstand the maximum expected DC voltage of the PV array without entering an unsafe operating condition.

An SPD should not be selected only because its label says “solar.”

Its voltage characteristics must match the system.

Engineers working with 600V to 1500V photovoltaic systems can also review KUANGYA’s Type 2 PV surge protective device for typical DC-side protection applications.

Voltage Protection Level

The SPD should limit the transient voltage to a level compatible with the withstand capability of downstream equipment.

Protection coordination matters.

An SPD with an unsuitable protection level may not provide the intended protection to sensitive inverter electronics.

Nominal Discharge Current

This parameter indicates the SPD’s capability under standardized surge-current conditions.

It should be selected according to the expected surge environment and system design.

Maximum Discharge Current or Impulse Current Capability

Depending on SPD type, the device may be characterized for different surge waveforms and current capabilities.

Engineers should compare actual standardized parameters rather than selecting products solely on marketing descriptions such as “heavy duty.”

Pole Configuration

The required SPD configuration depends on the PV system topology and earthing arrangement.

Common PV SPD configurations may include different numbers of poles or protective paths.

The system topology must be understood before the SPD is selected.

5.5 Why SPD Installation Location Matters

A correctly selected SPD can still provide poor protection if it is installed incorrectly.

Important factors include:

• Connection conductor length
• Cable routing
• Separation from protected equipment
• Earthing path
• Coordination between multiple SPDs

Long connecting conductors introduce additional inductive voltage during fast surge events.

As a practical engineering principle:

Keep SPD connection paths as short and direct as the installation permits.

When the PV array and inverter are separated by a long cable distance, a single SPD at only one end may not always provide the desired protection for both ends.

The system should be evaluated as a complete electrical path.

6. Layer 3: DC Isolator Switches

6.1 What Is the Function of a DC Isolator?

A DC isolator provides a means of disconnecting part of the PV DC circuit.

It supports:

• Maintenance
• Inspection
• Equipment replacement
• Emergency procedures
• Safe system segmentation

A DC isolator does not automatically replace:

• A fuse
• An SPD
• A circuit breaker

Its primary function is isolation.

This distinction is essential.

6.2 Why PV DC Isolation Is Technically Challenging

High-voltage DC switching can produce sustained electrical arcs.

A DC isolator used in a PV system must therefore be suitable for:

• DC voltage
• DC current
• Required utilization category
• Number of poles
• Switching configuration
• Environmental conditions

Using an AC-rated switch in a high-voltage DC application can be extremely dangerous.

The physical appearance of two switches may be similar, while their internal switching capability is very different.

6.3 Common Causes of DC Isolator Failure

Loose Terminals

A high-resistance connection creates localized heating.

Over time, thermal cycling can worsen the connection and damage:

• Terminal blocks
• Insulation
• Enclosure material
• Nearby conductors

Incorrect Device Rating

An isolator rated for a lower DC voltage may fail to interrupt the circuit safely.

Incorrect Wiring Configuration

Some multi-pole DC isolators depend on a specific pole arrangement to achieve their intended voltage rating.

Incorrect connection can reduce switching capability.

Water Ingress

Outdoor isolators may fail because of:

• Poor gland installation
• Damaged seals
• Incorrect enclosure orientation
• Condensation
• Inadequate ingress protection

Repeated Thermal Cycling

PV systems operate through daily heating and cooling cycles.

Mechanical connections that were initially acceptable can deteriorate if installation quality is poor.

6.4 Where Should the DC Isolator Be Installed?

The appropriate location depends on the system architecture.

Possible locations include:

• Near the PV array
• Inside a combiner box
• Near the inverter
• Integrated into the inverter
• At multiple points in large systems

The objective is to provide practical and safe isolation of the relevant circuit section.

A disconnect that is technically present but difficult to access during maintenance may provide limited operational value.

7. Layer 4: PV Combiner Box Protection

7.1 What Does a PV Combiner Box Do?

A PV combiner box collects the outputs of multiple strings and combines them into one or more larger DC output circuits.

Depending on the design, it may include:

• gPV string fuses
• Fuse holders
• DC SPD
• DC isolator
• DC circuit breaker
• Monitoring equipment
• Current sensors
• Communication modules
• Busbars
• Terminals

The combiner box therefore sits at one of the most important coordination points in the PV DC system.

7.2 A Combiner Box Is More Than an Enclosure

A common purchasing mistake is comparing combiner boxes mainly by:

• Price
• Number of strings
• Enclosure size

The actual engineering quality depends on what is inside.

Important questions include:

• Are the fuses correctly rated?
• Is the SPD suitable for the maximum DC voltage?
• Is the isolator correctly rated for the circuit?
• Are conductors properly sized?
• Are terminals suitable for the expected current?
• Is there sufficient thermal management?
• Is the enclosure appropriate for the environment?
• Is polarity clearly identified?
• Are creepage and clearance requirements addressed?
• Are internal connections mechanically secure?

A high IP rating alone does not guarantee electrical safety.

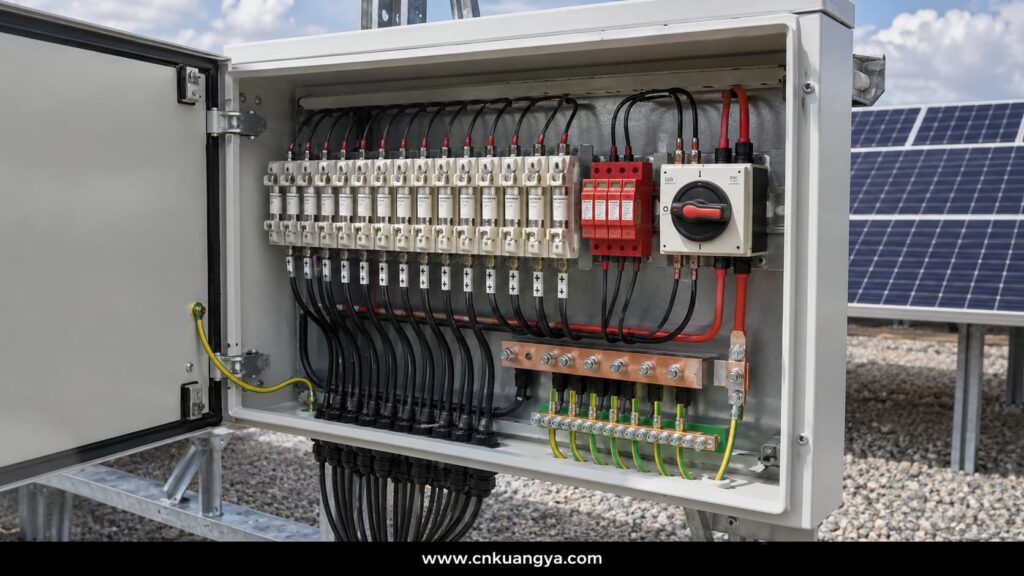

7.3 How the Fuse and SPD Work Together Inside the Combiner Box

The fuse and SPD have fundamentally different jobs.

gPV Fuse

Responds to sustained abnormal overcurrent.

SPD

Responds to short-duration transient overvoltage.

During normal operation:

• The fuse carries the string current.
• The SPD remains in a high-impedance state.

During an overcurrent fault:

• The correctly coordinated fuse should interrupt the affected circuit.

During a surge event:

• The SPD temporarily conducts surge current and limits voltage.

This is why describing an SPD as a “surge fuse” is technically misleading.

The two devices should be coordinated but should never be treated as interchangeable, and their position within a solar combiner box wiring diagram should reflect their different protection functions.

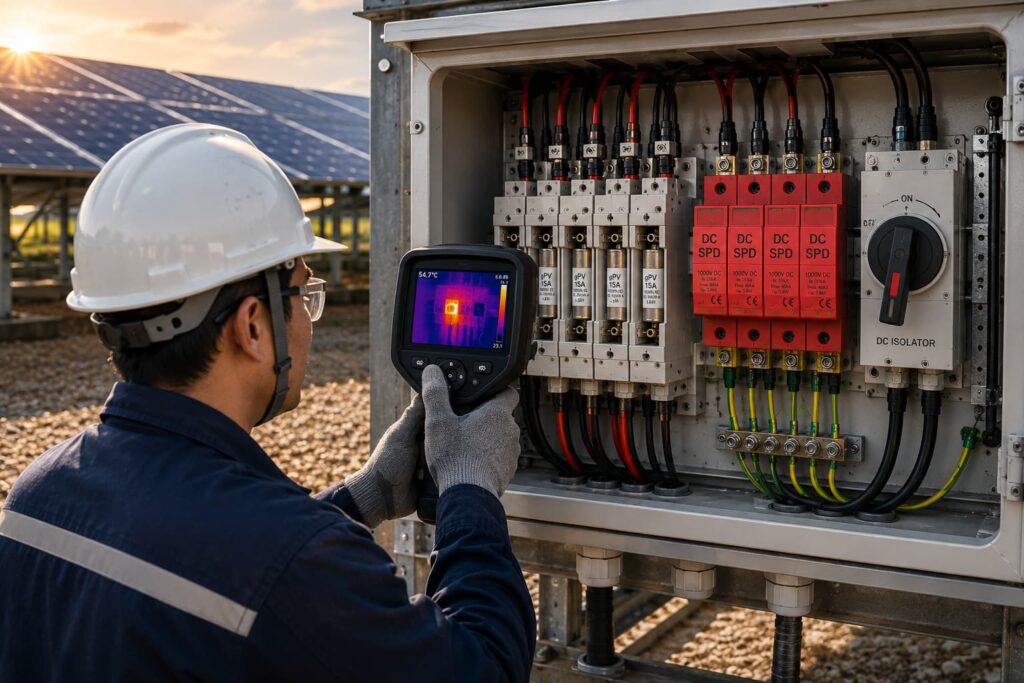

7.4 Thermal Management Inside the Combiner Box

A combiner box may contain many current-carrying components in a relatively small enclosure.

Heat can be produced by:

• Fuse resistance
• Fuse-holder contact resistance
• Busbars
• Terminals
• Disconnect devices
• Poor connections

Outdoor solar heating can increase the internal temperature further.

Designers should consider:

• Component derating
• Enclosure material
• Internal spacing
• Ventilation strategy
• Solar exposure
• Installation location
• Maximum ambient temperature

Thermal problems often develop gradually.

A connection may operate for months before increasing resistance leads to severe overheating.

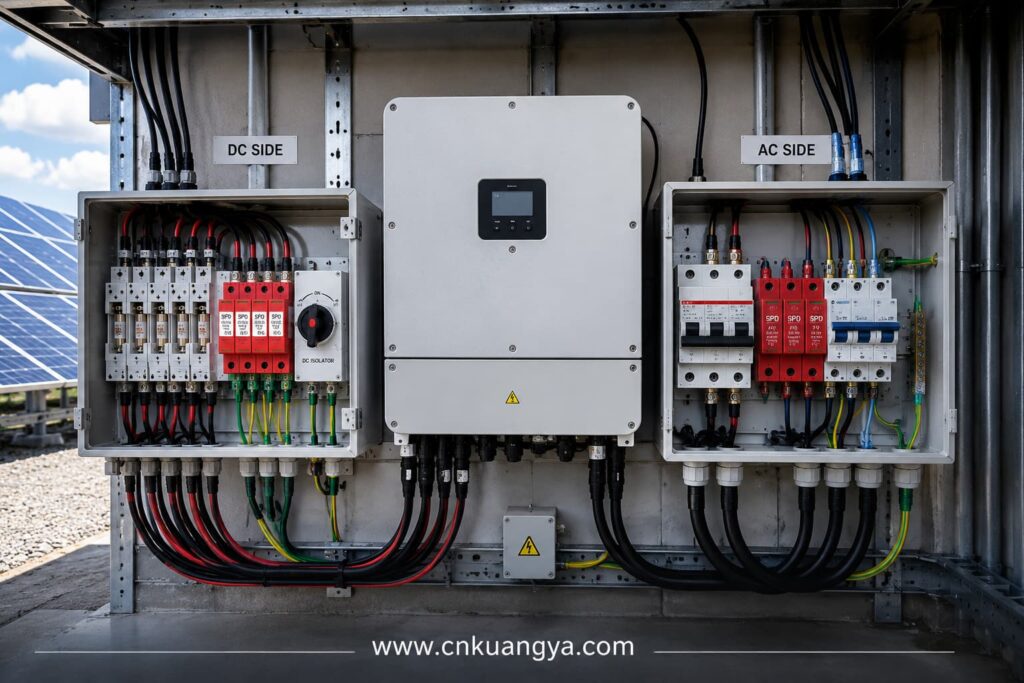

8. Layer 5: Protecting the Solar Inverter

Effective solar inverter protection is particularly important because the inverter is one of the most valuable and electronically sensitive components in the PV system.

It is also connected to two different electrical environments:

• The PV DC side
• The AC distribution or grid side

Protection should therefore be considered on both sides.

8.1 DC-Side Inverter Protection

Potential risks include:

• DC surge events
• Incorrect polarity
• Overvoltage
• Insulation faults
• Faults in incoming DC circuits

The upstream protection architecture may include:

• gPV fuses
• DC SPDs
• DC isolation
• DC breakers where required

The exact configuration depends on the inverter design and the PV array architecture.

8.2 AC-Side Inverter Protection

The AC side may require:

• Overcurrent protection
• Isolation
• Surge protection
• Earthing
• Additional protective devices according to the installation

Protecting only the DC side does not create a fully protected inverter.

Surges can reach connected equipment through more than one electrical path.

8.3 Communication and Monitoring Circuits

Modern PV plants may also include:

• RS485 networks
• Ethernet
• Weather stations
• Data loggers
• Remote monitoring systems
• Sensors

These circuits should not be ignored when assessing surge pathways.

A system can continue generating electricity while losing critical monitoring or communication capability.

For utility and commercial projects, that can create significant operational problems even when the main inverter remains functional.

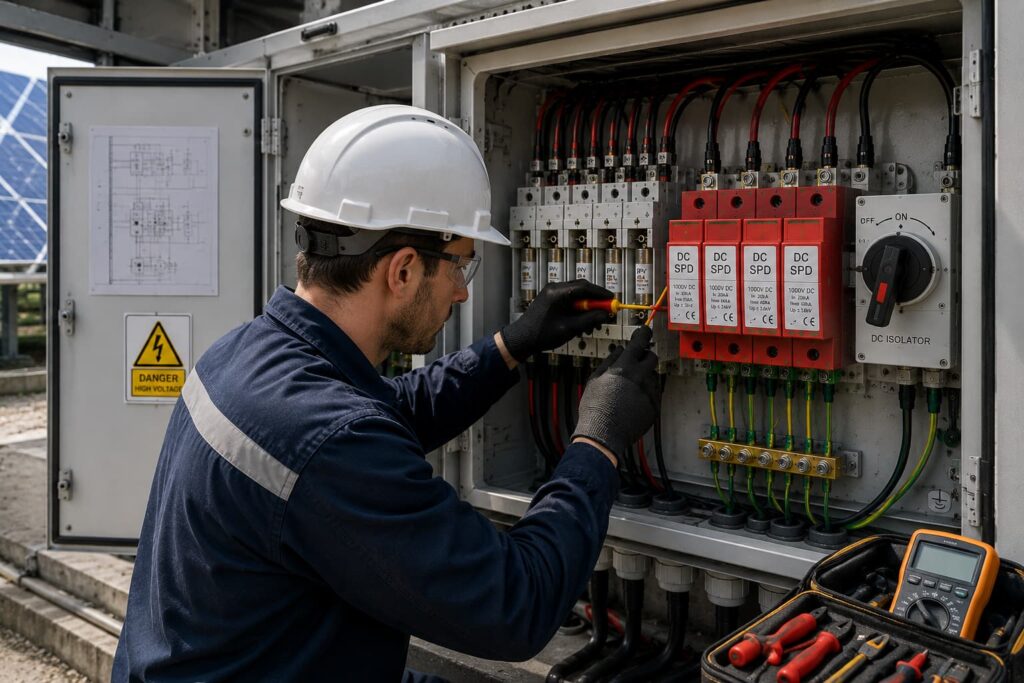

9. How SPD, Fuse, DC Isolator and Combiner Box Coordination Works

This is the central concept of Solar PV Electrical Protection.

Protection devices should not be selected independently.

They must function as a coordinated system.

Protection Layer 1: Prevent or Limit Overcurrent Damage

Use appropriate:

• gPV fuses
• Conductors
• Overcurrent protective devices

The goal is to protect the circuit against sustained abnormal current.

Protection Layer 2: Limit Transient Overvoltage

Use correctly selected:

• DC SPDs
• AC SPDs
• Additional surge protection where required

The goal is to prevent transient voltage from exceeding equipment withstand capability.

Protection Layer 3: Provide Safe Isolation

Use:

• DC isolators
• Disconnecting devices
• Suitable switching equipment

The goal is to allow safe separation of equipment and circuit sections.

Protection Layer 4: Integrate and Contain

Use properly designed:

• PV combiner boxes
• DC distribution enclosures
• Suitable environmental protection

The goal is to combine protection functions in an organized and maintainable architecture.

Protection Layer 5: Protect Critical Equipment

Coordinate upstream protection with:

• Inverter ratings
• Cable ratings
• Module ratings
• Downstream AC equipment

The goal is not merely to protect individual components.

The goal is to control how the entire system responds to abnormal electrical conditions.

Example: Reverse Current Fault in One PV String

Consider ten parallel PV strings connected to one combiner box.

One string develops a serious electrical fault.

Possible sequence:

1. The faulted string stops operating normally.
2. Healthy parallel strings may contribute reverse current toward the fault.
3. The current in the affected circuit increases.
4. The correctly selected gPV fuse operates.
5. The faulted string is disconnected from the parallel array.
6. The remaining strings continue operating, depending on system design.

The SPD does not perform the primary isolation function in this event.

The DC isolator does not automatically trip like a fuse.

Each device has a separate role.

Example: Lightning-Induced Transient

Now consider a nearby lightning event.

Possible sequence:

1. A fast transient is induced in the PV DC cable.
2. The surge propagates toward the inverter.
3. The DC SPD conducts transient energy.
4. The voltage reaching protected equipment is limited.
5. The system returns to normal operation if the SPD remains serviceable.

The gPV fuse may not operate because the event is not simply a sustained string overcurrent.

Again, the correct protection depends on the correct device.

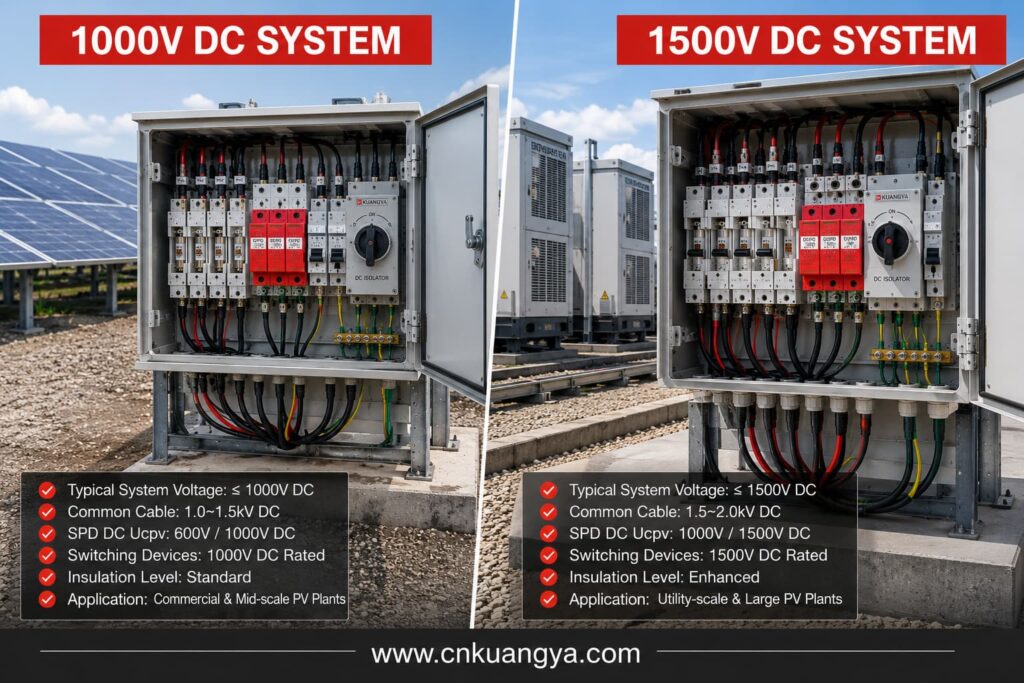

10. Solar PV Electrical Protection for 1000V and 1500V DC Systems

As PV plants move from 1000V to 1500V systems, protection-device coordination becomes increasingly important in large commercial and utility-scale projects.

Higher DC voltage can reduce current for a given power level and may reduce certain balance-of-system requirements.

However, increasing system voltage also increases protection demands.

10.1 Voltage Rating Must Be Verified Across the Entire Protection Chain

For a 1500V DC system, engineers must verify that all applicable components are suitable for the required voltage.

This may include:

• PV modules
• Connectors
• Cables
• Fuses
• Fuse holders
• SPDs
• Isolators
• Circuit breakers
• Combiner boxes
• Inverter inputs
• Terminals

A 1500V SPD does not make a combiner box a 1500V system if another internal component is rated for only 1000V.

The complete assembly is limited by its weakest relevant component.

10.2 Clearance and Insulation Become More Important

Higher voltage places greater demands on:

• Insulation
• Creepage distance
• Clearance
• Internal spacing
• Environmental control

Pollution and moisture can further influence insulation performance.

10.3 Switching DC at Higher Voltage Is More Demanding

Interrupting a high-voltage DC circuit requires equipment designed for that duty.

The correct isolator or breaker should be selected according to the actual circuit configuration.

10.4 Cold-Weather Voltage Must Be Considered

PV module voltage increases when module temperature decreases.

Designers should calculate the maximum array open-circuit voltage under the minimum expected temperature conditions.

Using only the module’s standard test condition voltage can lead to an underspecified protection system.

11. Common Solar PV Protection Design Mistakes

Mistake 1: Assuming the Inverter Provides All Protection

Many inverters include internal protective functions.

However, internal protection does not automatically eliminate the need for external:

• String protection
• Surge protection
• Isolation
• Combiner-box protection

The full system architecture must be evaluated.

Mistake 2: Using an AC Fuse in a PV DC Circuit

An AC fuse should not be assumed suitable for high-voltage DC interruption.

Use a fuse specifically designed and rated for the PV application.

Mistake 3: Selecting an SPD Only by “1000V” or “1500V”

System voltage is only one parameter.

Engineers should also review:

• SPD type
• Maximum continuous operating voltage
• Protection level
• Discharge capability
• System topology
• Installation position

Mistake 4: Installing the SPD with Long Connection Wires

Long conductors can reduce effective surge protection.

Connection paths should be designed to be short and direct.

Mistake 5: Treating the DC Isolator as a Circuit Breaker

An isolator and an overcurrent protective device are not automatically the same thing.

The device function must match the protection requirement.

Mistake 6: Oversizing the Fuse to Stop Nuisance Operation

A larger fuse may reduce protection.

The cause of repeated fuse operation should be investigated.

Mistake 7: Ignoring Combiner Box Temperature

High internal temperature can affect:

• Fuses
• Terminals
• SPDs
• Other components

Thermal design should be evaluated under realistic outdoor conditions.

Mistake 8: Mixing 1000V and 1500V Components

One lower-rated component can compromise the entire high-voltage assembly.

Mistake 9: Protecting Only the DC Side of the Inverter

The inverter is connected to both DC and AC electrical systems.

A complete protection assessment should consider both.

Mistake 10: Designing Without a Coordination Diagram

Large PV systems should have a clear protection architecture showing:

• Protection locations
• Device functions
• Voltage ratings
• Current ratings
• Cable sections
• Isolation points
• Earthing paths

Protection should be designed as a system rather than purchased as a collection of unrelated products.

12. A Practical PV Protection Selection Workflow

A structured engineering workflow reduces selection errors.

Step 1: Define the PV Array

Record:

• Module model
• Module electrical characteristics
• Number of modules per string
• Number of parallel strings
• Maximum series fuse rating
• Maximum system voltage

Step 2: Calculate Maximum System Voltage

Consider:

• Module open-circuit voltage
• Number of modules in series
• Temperature correction
• Project minimum temperature

Verify that the result remains within the rating of every relevant DC component.

Step 3: Evaluate String Overcurrent Risk

Determine:

• Number of parallel strings
• Potential reverse current
• Cable rating
• Module protection requirements

Decide whether individual string fusing is required.

Step 4: Select the gPV Fuse

Verify:

• DC voltage rating
• Current rating
• Module limitations
• Breaking capacity
• Environmental conditions

Step 5: Assess Surge Protection Requirements

Evaluate:

• Lightning exposure
• External lightning protection
• Cable length
• Equipment sensitivity
• Installation architecture

Then select the appropriate SPD type and ratings.

Step 6: Define Isolation Points

Determine where safe disconnection is required for:

• Maintenance
• Equipment replacement
• Emergency procedures

Select appropriately rated DC isolators.

Step 7: Design the Combiner Box

Coordinate:

• Number of inputs
• Fuse protection
• SPD
• Isolation
• Output current
• Enclosure
• Busbars
• Cable entry
• Thermal conditions
• Maintenance access

Step 8: Coordinate with the Inverter

Check:

• Maximum DC input voltage
• Maximum input current
• MPPT configuration
• Internal protection
• External protection requirements

Step 9: Review the AC Side

Do not stop at the inverter DC terminals.

Evaluate:

• AC overcurrent protection
• AC surge protection
• Isolation
• Earthing

Step 10: Verify the Entire Protection Chain

Before commissioning, confirm that no component creates a weak point.

This final system-level review is what transforms individual devices into coordinated Solar PV Electrical Protection.

13. Inspection and Maintenance

Protection devices require inspection throughout the life of the PV installation.

Inspect gPV Fuses and Fuse Holders

Look for:

• Discoloration
• Overheating
• Loose connections
• Damaged fuse holders
• Unexpected repeated fuse operation

Inspect SPDs

Check:

• Status indicators
• Remote signaling where available
• Signs of overheating
• Loose terminals
• End-of-life condition

SPDs can degrade after repeated surge exposure.

Inspect DC Isolators

Check for:

• Mechanical damage
• Water ingress
• Overheating
• Abnormal operating resistance
• Loose terminals
• Smooth switching operation

Inspect Combiner Boxes

Look for:

• Moisture
• Dust
• Corrosion
• Insect ingress
• Loose terminals
• Thermal damage
• Damaged cable glands
• Abnormal temperature

Thermal imaging can be useful for identifying developing high-resistance connections in operating equipment.

14. Solar PV Electrical Protection Checklist

Before approving a PV protection design, verify the following.

PV Array

• Maximum string voltage has been calculated.
• Minimum site temperature has been considered.
• Maximum system voltage is within all component ratings.
• Parallel string fault current has been evaluated.

gPV Fuse

• Fuse is designed for PV DC applications.
• Voltage rating is suitable.
• Current rating is coordinated with the circuit.
• Module maximum series fuse rating has been checked.
• Fuse holder rating is also suitable.

DC SPD

• SPD is designed for the PV DC system.
• Voltage characteristics are suitable.
• SPD type matches the protection strategy.
• Installation location has been reviewed.
• Connection conductors are appropriately routed.
• Earthing path has been considered.

DC Isolator

• Device is rated for the actual DC voltage.
• Current rating is suitable.
• Switching configuration is correct.
• Installation location supports safe maintenance.
• Environmental rating is appropriate.

Combiner Box

• Number of string inputs is correct.
• Internal component ratings are coordinated.
• Output current rating is sufficient.
• Thermal conditions have been considered.
• Enclosure is suitable for the environment.
• Cable entry and sealing are correctly designed.

Inverter

• Maximum DC input voltage is not exceeded.
• Input current limits are respected.
• DC and AC surge protection have been evaluated.
• External protection is coordinated with internal protection.

15. Frequently Asked Questions

What is Solar PV Electrical Protection?

Solar PV Electrical Protection is the coordinated use of fuses, SPDs, isolators, breakers, combiner boxes and other protective measures to reduce electrical risks throughout a photovoltaic system.

Does every solar string need a fuse?

No.

The requirement depends on the number of parallel strings, possible reverse current, conductor ratings, module limitations and applicable design rules.

The fault-current scenario should be evaluated rather than assuming that every string always requires a fuse.

Can a circuit breaker replace a gPV fuse?

Sometimes a correctly selected PV DC circuit breaker may perform an overcurrent protection function, but devices are not automatically interchangeable.

The correct solution depends on:

• Voltage
• Current
• Breaking capability
• System architecture
• Required protection characteristics

Can an SPD replace a fuse?

No.

An SPD protects mainly against transient overvoltage.

A fuse protects against sustained abnormal overcurrent.

They perform different functions.

Does a fuse protect against lightning?

A fuse is not the primary protective device for transient overvoltage.

An appropriately selected SPD is used for surge protection.

What is the difference between a DC isolator and a DC circuit breaker?

A DC isolator primarily provides safe disconnection.

A circuit breaker may provide switching and protective functions depending on its design and ratings.

The terms should not be used interchangeably without checking the actual device function.

Where should a DC SPD be installed in a solar system?

Possible locations include:

• PV combiner box
• DC distribution equipment
• Near the inverter

The correct arrangement depends on cable length, system architecture and surge protection design.

Is one SPD enough for an entire PV system?

Not always.

Long cable distances, multiple system zones and exposure conditions may require protection at more than one location.

The complete surge path should be evaluated.

Should I use a 1000V or 1500V DC SPD?

The SPD must be selected according to the actual maximum PV system voltage and its required electrical characteristics.

A 1500V system requires components suitable for the relevant maximum voltage, but simply choosing the highest voltage label is not automatically the best protection strategy.

What is the purpose of a PV combiner box?

A PV combiner box combines the outputs of multiple PV strings and may integrate:

• String fuses
• SPDs
• DC isolation
• Monitoring
• Other protection equipment

Can a high IP rating guarantee a safe combiner box?

No.

Ingress protection is important, but electrical safety also depends on:

• Component selection
• Internal wiring
• Thermal management
• Terminal quality
• Protection coordination

What standards are relevant to Solar PV Electrical Protection?

Depending on the project and jurisdiction, important references may include:

• IEC 62548-1 for PV array design requirements
• IEC 60364-7-712 for PV electrical installations
• IEC 60269-6 for PV fuse-links
• IEC 61643-31 for PV DC SPDs
• IEC 61643-32 for PV SPD selection and coordination

The applicable edition, national adoption and local electrical regulations should always be confirmed for the specific project.

16. Final Engineering Recommendations

Reliable Solar PV Electrical Protection is not achieved by adding more protective devices without a system plan.

It is achieved by giving every device a clearly defined responsibility.

Use the gPV fuse to address appropriate overcurrent and reverse-current risks.

Use the DC SPD to limit transient overvoltages.

Use the DC isolator to provide safe electrical disconnection.

Use the PV combiner box to integrate string collection and protection in a controlled electrical environment.

Then coordinate all of these elements with the inverter, cables, PV modules, AC system and project operating conditions.

The most important design question should never be:

“Which protection product should we add?”

The better question is:

“What electrical failure are we trying to control, which device is responsible for controlling it, and how does that device coordinate with the rest of the PV system?”

That system-level approach is the foundation of effective Solar PV Electrical Protection.

For modern 1000V and 1500V photovoltaic projects, protection coordination becomes increasingly important as system voltage, power density and equipment value increase.

A well-designed PV system should therefore treat protection as an integrated architecture:

Detect the risk.
Limit the fault.
Isolate the affected circuit.
Protect critical equipment.
Maintain safe operation.

That is the difference between installing individual protective components and engineering a complete solar PV electrical protection system.
