Why Does Condensation Form Inside an IP65 Electrical Enclosure? Causes & Solutions
An electrical enclosure is rated IP65. Its door is tightly closed, the cable glands appear properly installed, and there are no visible signs of rainwater leakage.
Yet, during a routine inspection, maintenance personnel discover water droplets on the inside of the enclosure door.
In more serious situations, moisture may appear around terminal blocks, metal mounting plates, or electronic components.
How can condensation form inside an IP65 electrical enclosure if the enclosure is designed to resist dust and water ingress?
The answer lies in the difference between water ingress protection and internal moisture control.
IP65 enclosure condensation can occur when humid air inside the cabinet contacts a surface below its dew point, even if no external water has entered.
This distinction is particularly important for outdoor electrical cabinets, photovoltaic combiner boxes, industrial control panels, and electrical equipment installed in tropical climates.
In this guide, we explain why condensation occurs, how to distinguish condensation from water leakage, what problems moisture can cause, and which prevention methods work for different applications.
1. Can Condensation Really Form Inside an IP65 Electrical Enclosure?
Yes. Condensation can form inside an IP65 electrical enclosure without any visible failure of its external waterproofing.
The IP rating and the risk of condensation describe two different aspects of enclosure performance.
According to IEC 60529: Degrees of Protection Provided by Enclosures, IP codes classify protection against access, solid foreign objects, and water ingress under defined test conditions.
For an IP65 enclosure:
- The first digit, 6, indicates dust-tight protection.
- The second digit, 5, indicates protection against water jets under the applicable test conditions.
Neither digit represents a guarantee that the air inside the enclosure will remain dry.
IP65 Protection vs Condensation Prevention
| Comparison | IP65 Protection | Condensation Prevention |
|---|---|---|
| Primary objective | Limit external ingress of dust and water | Limit moisture accumulation inside |
| Main concern | Environmental exposure | Humidity and temperature |
| Related standard | IEC 60529 | Application-specific thermal and humidity design |
| Prevents internal dew-point formation? | No | Can reduce the risk |
| Main solutions | Seals, enclosure design, suitable cable glands | Heating, moisture management, pressure-equalization vents |
| Typical problem | Rainwater or dust entering the cabinet | Water droplets forming on internal surfaces |
This is why upgrading an enclosure from IP65 to IP66 does not automatically solve internal condensation.
The higher rating may provide additional protection against a different form of external water exposure, but it does not directly address the physical process that causes water vapor to condense.
For more information about enclosure ingress protection, see our separate guide: IP65 vs IP66 vs IP67 for Solar Combiner Boxes.
2.What Causes IP65 Enclosure Condensation?
Condensation occurs when moisture-containing air contacts a surface whose temperature is at or below the air’s dew point.
The dew point is the temperature at which air becomes saturated with water vapor, assuming its moisture content remains unchanged.
When a surface cools below that point, water vapor can transform into liquid droplets.

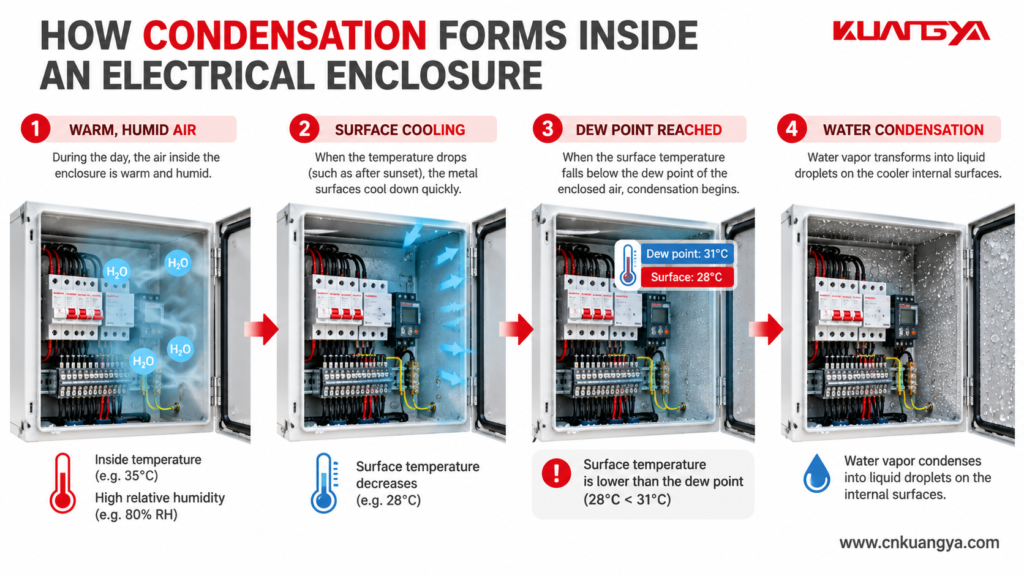

The process is straightforward:
Warm, humid air → Surface cooling → Dew point reached → Water condensation
For example, an outdoor electrical cabinet may be relatively warm during the afternoon.
After sunset, its metal enclosure walls can cool rapidly.
If the internal surfaces become colder than the dew point of the trapped air, moisture may begin collecting on those surfaces.
This condensation mechanism is based on the relationship between air temperature, relative humidity, and dew point. When an enclosure surface cools below the dew point, moisture can form even without external water ingress.
Example: A Hot Day Followed by a Cool Night
Consider an electrical enclosure with the following hypothetical conditions.
| Parameter | Example Value |
|---|---|
| Internal air temperature | 35°C |
| Internal relative humidity | 80% |
| Approximate dew point | 31°C |
| Internal enclosure wall temperature after cooling | 28°C |
| Condensation risk | High |
At 35°C and 80% relative humidity, the approximate dew point is 31°C.
If the wall temperature falls to 28°C while the enclosed air retains approximately the same moisture content, condensation can occur.
The enclosure does not need to develop a visible leak for this to happen.
The example is a psychrometric calculation, not a reported field failure. Real internal humidity and dew point change as the enclosure exchanges heat and moisture with its environment.
3. Seven Common Causes of Moisture Inside IP65 Electrical Enclosures
Although dew-point formation is the underlying physical process, several installation and environmental factors make condensation more likely.
3.1 Large Temperature Differences Between Day and Night
Outdoor electrical enclosures experience continuous temperature changes.
During daylight hours, solar radiation heats the enclosure surface. Internal electrical components may also contribute heat.
At night, the cabinet loses heat to the surrounding environment.
If the internal air remains humid while enclosure surfaces cool, condensation can form.
This pattern is especially relevant to exposed rooftop installations and ground-mounted photovoltaic systems.
3.2 High Relative Humidity
Humidity is a major factor in condensation risk.
The higher the moisture content of the internal air, the closer its dew point is likely to be to the actual air temperature.
An electrical enclosure installed in a humid environment may contain moist air from the moment its door is closed.
Even if the enclosure seals are correctly installed, that trapped moisture can condense when the enclosure cools.
3.3 Moisture Trapped During Installation
Not all moisture enters after commissioning.
Water vapor may become trapped inside during initial assembly, field wiring, inspection, or maintenance.
Possible circumstances include:
- Installing an enclosure during rainy weather.
- Closing the cabinet while the surrounding air is extremely humid.
- Leaving wet cables or internal surfaces inside.
- Installing components before they are fully dry.
- Reclosing the enclosure after maintenance without checking for residual moisture.
A correctly sealed enclosure can retain internal moisture if there is no suitable mechanism for removing it.
3.4 Repeated Heating and Cooling Cycles
When air inside an enclosure heats up, it expands. When the air cools, it contracts.
These changes produce pressure differences between the inside and outside of the enclosure.
If pressure differences occur repeatedly, enclosure seals and cable entries may experience additional mechanical stress.
Over time, weaknesses in those interfaces can contribute to moisture ingress.
A purpose-designed pressure-equalization vent may help reduce these pressure differences.
According to GORE’s technical guidance for protective vents, pressure equalization can reduce seal stress and help minimize condensation accumulation.
However, a vent does not guarantee that the enclosure interior will always remain dry.
3.5 Improper Cable Gland Installation
Cable glands are potential moisture-entry points if they are incorrectly selected or installed.
Common problems include:
- A cable diameter outside the gland’s specified sealing range.
- Loose or improperly tightened glands.
- Damaged sealing inserts.
- Unsealed unused cable openings.
- Water traveling along poorly routed cables.
- Unsuitable gland materials for the installation environment.
In these cases, the problem may be actual liquid-water ingress rather than condensation alone.
A cable gland carrying its own IP rating does not automatically make the completed enclosure assembly IP65.
The installed configuration must maintain the required protection.
3.6 Poor Enclosure Positioning
Installation position affects both solar heating and direct exposure to rain.
A cabinet installed in strong sunlight may experience higher daytime temperatures.
The same enclosure may subsequently cool during the evening.
Cable routing can also influence moisture movement.
For example, poorly positioned cable entries may allow water to collect around sealing interfaces or travel toward an entry point.
Suitable mounting positions, cable routing, and enclosure orientation should be included in the design.
3.7 Inadequate Internal Moisture Management
Some enclosure designs focus heavily on preventing external water from entering but provide little consideration for internal humidity.
Potential weaknesses include:
- No suitable moisture-management strategy.
- No pressure-equalization provision where needed.
- Insufficient consideration of internal heat generation.
- Unsuitable drainage arrangements.
- No humidity monitoring in sensitive installations.
- Components positioned where condensed water may drip onto energized parts.
The appropriate solution depends on the cabinet’s size, environmental conditions, electrical contents, and installation requirements.

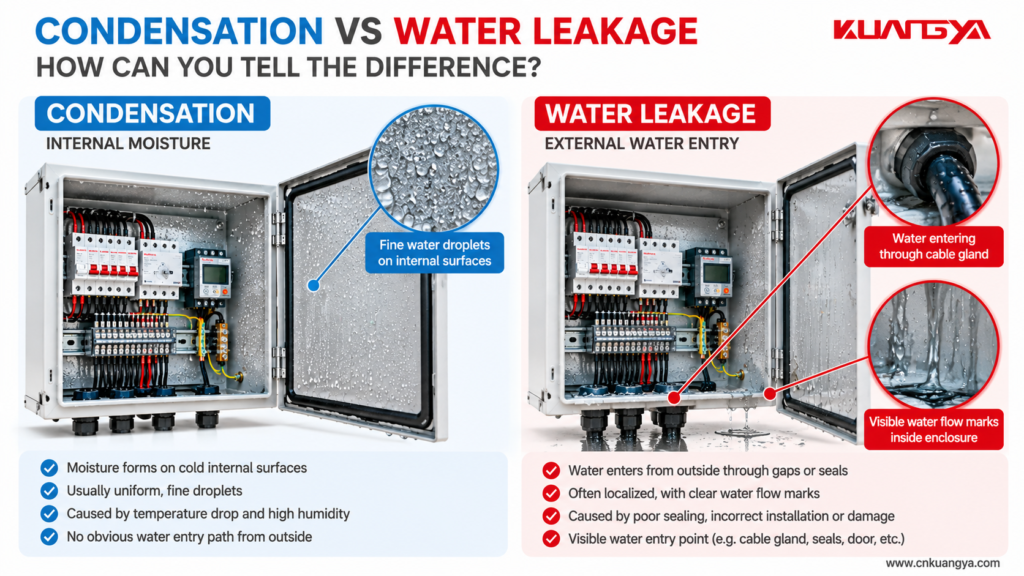

4. Condensation vs Water Leakage: How Can You Tell the Difference?
Finding water inside an enclosure does not automatically mean that its sealing system has failed.
Equally, it would be unsafe to assume that every moisture problem is harmless condensation.
The first troubleshooting task is to distinguish between condensation, external water ingress, and other possible moisture sources.
Diagnostic Comparison
| Observation | Possible Condensation | Possible Water Ingress |
|---|---|---|
| Fine droplets on cool internal surfaces | Common indication | Also possible |
| Moisture appears after nighttime cooling | Consistent with condensation | Not conclusive |
| Water concentrated below a cable entry | Less characteristic | Check cable gland or entry |
| Water appears immediately after heavy rain | Possible, depending on cooling | Leakage should be investigated |
| Visible water track from a door gasket | Less likely to be pure condensation | Strong leakage indication |
| Repeated moisture without rainfall | Possible | Also possible from trapped water or cable pathways |
| Corrosion concentrated near a penetration | Possible | Inspect for a local leak |
These observations are diagnostic clues, not definitive tests.
Practical Inspection Procedure
Step 1: Make the equipment safe.
Only qualified personnel should inspect electrical cabinets. Follow the applicable isolation, lockout/tagout, and verification procedures.
For photovoltaic installations, remember that DC circuits may remain energized whenever the solar array is illuminated, even if some switches are open.
Step 2: Inspect the enclosure exterior.
Look for damage to the housing, door seals, hinges, latches, cable glands, and unused openings.
Step 3: Inspect moisture distribution.
Check whether droplets are distributed across cool surfaces or concentrated around a specific penetration.
Step 4: Review environmental conditions.
Record ambient temperature, internal temperature, relative humidity, recent rainfall, and relevant operating conditions.
Step 5: Check the dew point.
Compare the calculated internal-air dew point with the measured temperature of the surfaces where moisture appears.
Step 6: Identify the source before modifying the enclosure.
Do not drill drainage or ventilation holes into an IP65 enclosure without a properly engineered solution. Unapproved modifications can compromise ingress protection.

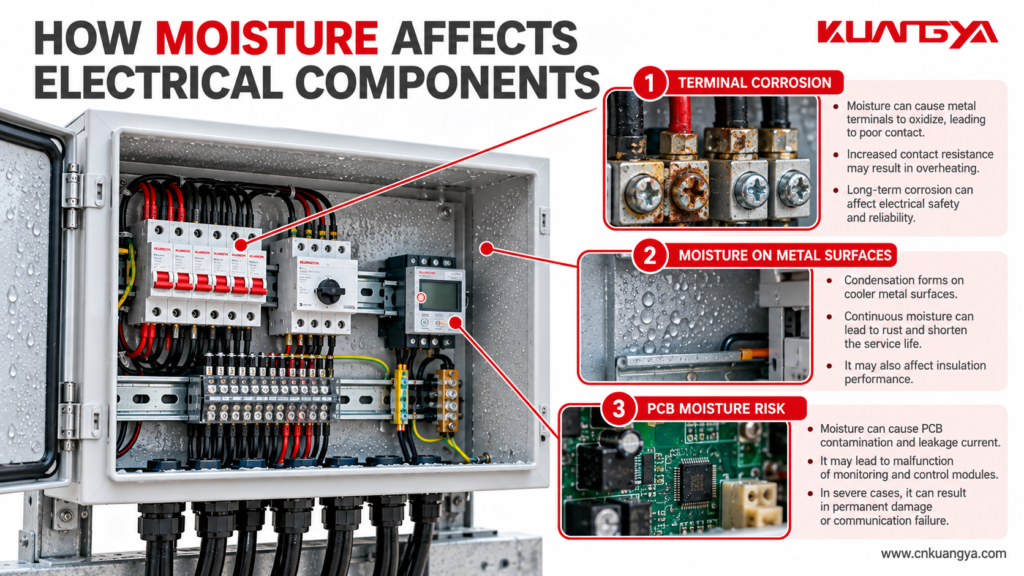

5. Why Condensation Is Dangerous for Electrical Equipment
Small water droplets may appear insignificant, but repeated moisture exposure can create serious reliability problems.
The consequences depend on the electrical system, contamination levels, component materials, and duration of exposure.
Main Failure Mechanisms
| Affected Component | Potential Moisture-Related Problem | Possible Consequence |
|---|---|---|
| Terminal blocks | Corrosion or contamination | Increased contact resistance |
| Metal mounting plate | Surface corrosion | Reduced service life |
| Electronic PCB | Leakage paths and corrosion | Malfunction or communication failure |
| Fuse holder connections | Contact degradation | Localized heating |
| DC SPD terminals | Corrosion or insulation deterioration | Reduced reliability |
| Monitoring module | Moisture-related electronic faults | Lost or unreliable monitoring |
| Door gasket | Aging or physical deterioration | Increased water-ingress risk |
| Cable gland interface | Seal deterioration | External moisture penetration |
5.1 Corrosion of Electrical Connections
Moisture can accelerate corrosion on susceptible metal surfaces.
Where corrosion affects current-carrying connections, contact resistance may increase.
Higher resistance can produce additional heat during operation.
This does not mean every corroded connection will overheat, but it is a failure mechanism that requires attention.
5.2 Insulation Problems
Moisture and conductive contamination can reduce surface insulation resistance.
Under unfavorable conditions, leakage currents or tracking can develop.
This is particularly important in high-voltage DC installations where appropriate insulation coordination and separation distances are essential.
5.3 Electronic Monitoring Failures
Modern electrical enclosures may contain sensors, communication interfaces, power supplies, and monitoring modules.
These components can be more sensitive to sustained moisture than simple mechanical structures.
In photovoltaic systems, electronic failures may interrupt data collection or remote monitoring.
For an example of a more complex PV enclosure architecture, see KUANGYA’s 16-String PV Combiner Box with Monitoring and Remote Control.

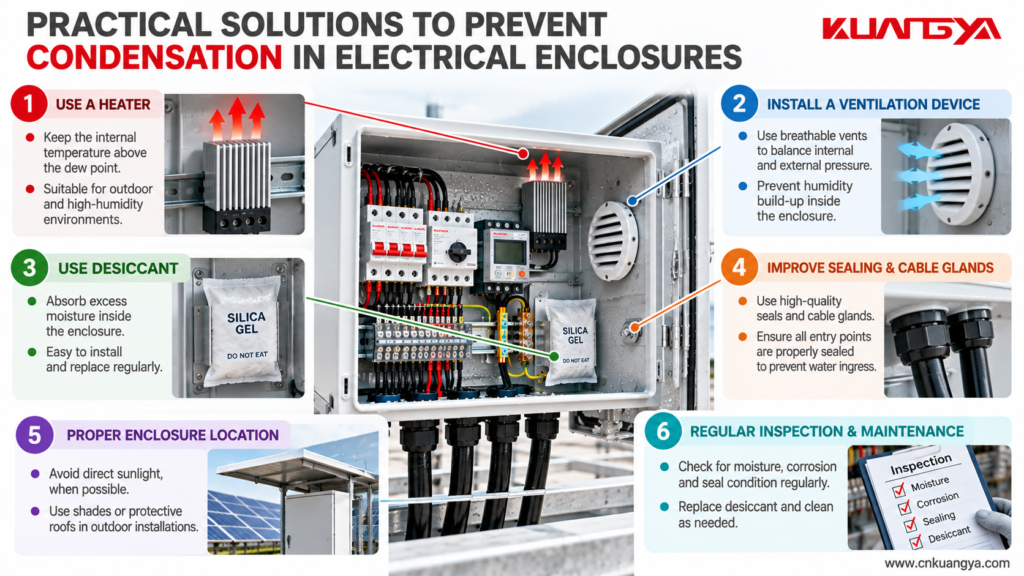

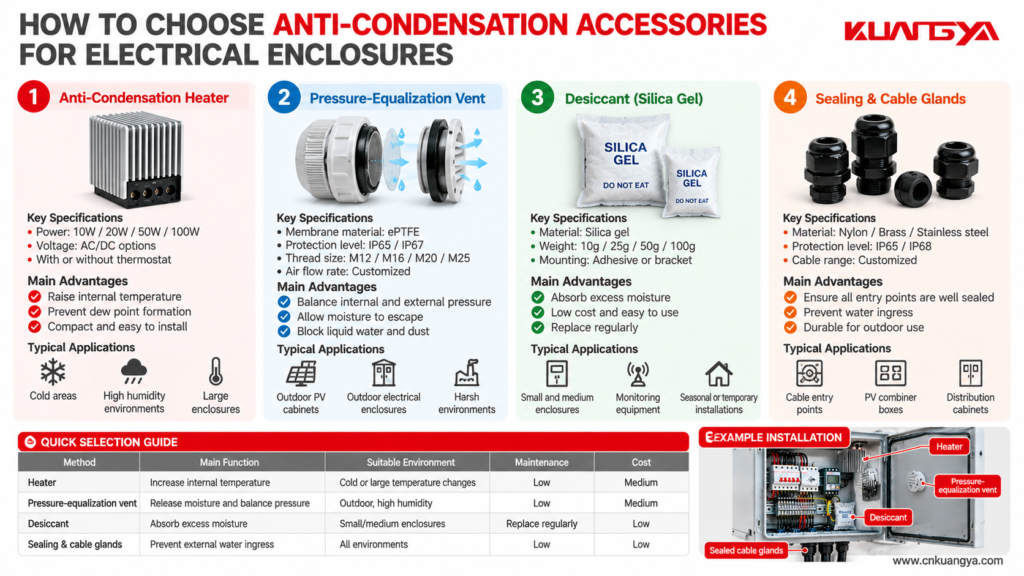

6. Seven Practical Ways to Prevent Condensation in IP65 Enclosures
No single method is suitable for every electrical enclosure.
The correct approach should address the actual moisture source, operating temperature, environmental conditions, and enclosure requirements.
Solution 1: Use a Suitable Pressure-Equalization Vent
A pressure-equalization vent allows controlled gas exchange between the enclosure interior and external environment.
Certain protective membrane vents can limit entry of liquid water and particles while permitting air and water vapor movement.
Potential benefits include:
- Reduced pressure differences.
- Lower mechanical stress on seals.
- Improved opportunity for trapped water vapor to dissipate.
- Reduced condensation accumulation under suitable conditions.
For photovoltaic applications, GORE Protective Vents for Solar Energy Systems explains how membrane vents can support pressure equalization and moisture management.
Important: Water vapor can pass in both directions. A vent is not a dehumidifier, and it does not guarantee a dry interior.
The entire enclosure-and-vent configuration must also be suitable for the required ingress protection.
Solution 2: Install an Anti-Condensation Heater Where Appropriate
An anti-condensation heater maintains selected internal surfaces at temperatures that reduce the likelihood of reaching the dew point.
Heaters may be controlled by thermostats, hygrostats, or combined temperature-and-humidity controllers.
For example, a heater can be activated when the enclosure reaches conditions associated with condensation risk.
Schneider Electric provides dedicated enclosure heating solutions in its ClimaSys CR range.
However, a heater must be correctly sized and controlled.
It also requires a suitable power supply and must not cause internal components to exceed their permitted operating temperatures.
Solution 3: Improve Cable Entry Sealing
All cable entries should use glands suitable for the cable diameter, enclosure material, and environmental exposure.
Check that:
- Glands are correctly sized.
- Sealing inserts are undamaged.
- Installation follows the gland manufacturer’s instructions.
- Unused holes are properly sealed.
- Cable routes do not encourage water to enter.
- The completed assembly maintains the required ingress protection.
This primarily addresses external water entry, which can otherwise be confused with condensation.
Solution 4: Manage Solar Heat Exposure
Direct sunlight can increase cabinet surface temperature.
Where practical, enclosure orientation, location, and suitable shading arrangements can reduce extreme thermal exposure.
However, shading should not obstruct required airflow, compromise maintenance access, or violate product installation requirements.
For enclosures containing significant electrical heat sources, thermal calculations are important.
Solution 5: Consider Humidity Monitoring
For critical installations, temperature and relative-humidity sensors can provide useful information.
Continuous or periodic monitoring may help identify conditions in which the internal dew point approaches the temperature of the enclosure walls.
Alarm settings should be based on the actual equipment and environment rather than a universal humidity threshold.
This is particularly useful for remote electrical cabinets that cannot be inspected frequently.
Solution 6: Use Suitable Drainage Where Engineered
In some applications, approved enclosure drainage devices may help manage liquid water accumulation.
However, drainage is not a universal solution.
A simple open hole can compromise dust and water protection.
Where drainage is needed, use components compatible with the enclosure design and verify the ingress-protection requirements of the completed assembly.
Solution 7: Establish a Maintenance Routine
Even a correctly designed enclosure benefits from periodic inspection.
Maintenance should include checking the condition of seals, glands, protective vents, internal moisture indicators, and vulnerable electrical connections.
Any evidence of corrosion, standing water, degraded insulation, or abnormal heating should be investigated.
For photovoltaic installations, additional maintenance information is available in the KUANGYA Solar Combiner Box Protection and Maintenance Guide.

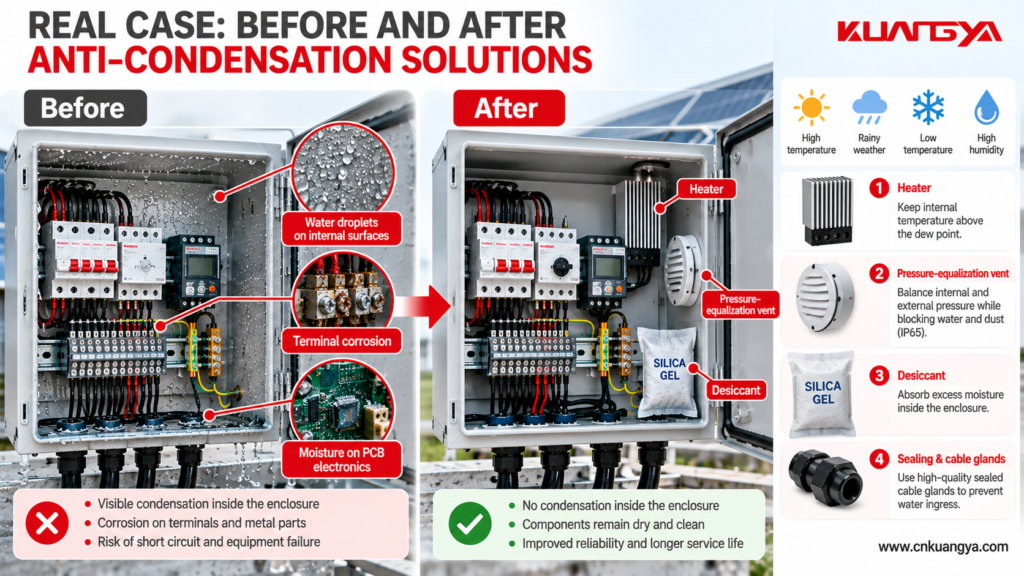

7. Comparing Condensation Prevention Methods
The following table summarizes the advantages and limitations of common solutions.
| Method | Main Purpose | Advantages | Limitations |
|---|---|---|---|
| Pressure-equalization vent | Reduce pressure differences and trapped moisture | Passive operation; no electrical power | Does not actively dry the air |
| Anti-condensation heater | Reduce dew-point formation on surfaces | Suitable for controlled thermal management | Requires power and correct sizing |
| Hygrostat or humidity controller | Control based on humidity conditions | Automatic operation | Requires compatible equipment |
| Improved cable sealing | Prevent external water entry | Essential for enclosure integrity | Does not remove trapped humidity |
| Suitable shading | Reduce solar heating effects | Passive thermal benefit | Site and design dependent |
| Humidity monitoring | Detect unfavorable internal conditions | Supports preventive maintenance | Monitoring alone does not remove moisture |
| Engineered drainage | Remove accumulated liquid water | Useful in selected designs | Must preserve required enclosure protection |
Which Method Is Best?
For a relatively small outdoor cabinet with moderate thermal cycling, a suitable pressure-equalization strategy may be worth evaluating.
For an enclosure exposed to low temperatures or persistent condensation risk, a controlled anti-condensation heater may be appropriate.
For complex enclosures containing electronic monitoring equipment, a combined approach involving environmental monitoring, sealing, and moisture control may be preferable.
The best solution is not necessarily the most expensive accessory. It is the solution that addresses the actual failure mechanism without creating a new electrical or environmental risk.
8. Engineering Examples: Condensation Problems in Different Environments
The following examples are illustrative engineering scenarios, not documented KUANGYA customer incidents. They demonstrate how environmental conditions can change the appropriate design response.
Example 1: Solar Combiner Box in a Tropical Climate
Application: Outdoor photovoltaic system in Southeast Asia.
Operating environment: High relative humidity, frequent rainfall, and daily temperature variations.
Observed condition: Fine moisture droplets appear on the inside of the enclosure after cooler nighttime conditions.
Possible explanation:
Humid air inside the enclosure cools below its dew point.
The source of the moisture could be trapped air, vapor exchange, or another route that requires investigation.
Recommended engineering evaluation:
- Measure internal relative humidity and temperature.
- Inspect cable glands and door seals.
- Calculate the internal dew point.
- Assess whether a compatible pressure-equalization vent would help.
- Check whether electrical components are positioned away from likely drip paths.
In this example, simply specifying a higher IP rating would not necessarily eliminate condensation.
Example 2: Outdoor Control Cabinet with Electronic Equipment
Application: Industrial control cabinet containing monitoring electronics.
Operating environment: Warm daytime conditions followed by substantial nighttime cooling.
Observed condition: Repeated moisture formation on internal metal surfaces.
Possible explanation:
Temperature cycling causes internal surfaces to fall below the dew point.
Recommended engineering evaluation:
A controlled anti-condensation heater may be considered, subject to power availability, internal temperature limits, and enclosure design.
A humidity sensor can also help determine whether the selected approach improves conditions.
Example 3: Electrical Enclosure Near the Coast
Application: Outdoor electrical control enclosure near a marine environment.
Observed condition: Moisture and corrosion around internal metal connections.
Possible explanations:
- Condensation.
- Salt-contaminated moisture entering through an unsuitable seal.
- A combination of water ingress and internal humidity.
Recommended engineering evaluation:
Inspect the enclosure carefully for ingress paths, evaluate material and corrosion resistance, and choose sealing and moisture-management components suitable for the coastal environment.
In a coastal installation, corrosion protection should be considered separately from IP rating.
9. Special Considerations for Solar PV Combiner Boxes
A solar PV combiner box is more than an outdoor enclosure.
It may contain DC fuse holders, surge protective devices, isolators, busbars, and electronic monitoring equipment.
These components have different thermal, electrical, and environmental requirements.
A moisture-control strategy must therefore be considered alongside the electrical design.
Key Design Considerations
| Design Area | What Should Be Checked? |
|---|---|
| Enclosure | Appropriate IP rating for actual exposure |
| Cable entries | Correctly installed and sealed |
| Internal temperature | Ambient heat, solar gain, electrical heat dissipation |
| Internal humidity | Dew-point risk and monitoring requirements |
| DC fuse holders | Contact integrity and operating temperature |
| DC SPD | Manufacturer’s environmental and installation requirements |
| Monitoring equipment | Humidity and temperature operating limits |
| Vent or heater | Compatibility with enclosure and electrical design |
| Maintenance | Accessibility and inspection intervals |
For example, a multi-string PV combiner box containing monitoring equipment may have a different thermal profile from a basic enclosure containing only fuse holders and a disconnect device.
Additional components can increase internal heat generation and introduce more environmental requirements.
For larger applications, see KUANGYA’s 16-String PV Combiner Box with Monitoring and Remote Control.
For a broader discussion of DC protection components, see Solar PV Electrical Protection: Complete Guide.
10. Can a Completely Sealed Electrical Enclosure Still Develop Condensation?
Yes.
A sealed enclosure can contain water vapor from the moment it is assembled or closed.
When the temperature changes, that moisture can condense on colder internal surfaces.
Sealing does not remove moisture already present.
Moreover, many practical electrical enclosures are not hermetically sealed.
Their long-term performance depends on the integrity of seals, cable entries, materials, and installation workmanship.
This is one reason why moisture management should be considered during enclosure design rather than treated only as a maintenance issue.
11. Electrical Enclosure Condensation Troubleshooting Checklist
Before replacing an enclosure, use a systematic inspection process.
| Inspection Item | What to Check | Possible Next Action |
|---|---|---|
| Door gasket | Damage, distortion, contamination | Replace or restore sealing as specified |
| Cable glands | Correct size, tightness, condition | Correct installation |
| Unused entries | Missing plugs or seals | Install approved sealing accessories |
| Internal water patterns | Droplets, streaks, pooling | Investigate condensation or leakage |
| Temperature | Internal and external conditions | Evaluate thermal management |
| Humidity | Internal RH and calculated dew point | Evaluate moisture-control strategy |
| Pressure-equalization vent | Condition, location, suitability | Inspect or select suitable component |
| Electrical connections | Corrosion, discoloration | Qualified electrical inspection |
| Electronic modules | Moisture damage or abnormal operation | Follow manufacturer guidance |
| Maintenance records | Recurring seasonal or weather-related patterns | Revise inspection plan |
Document inspection results before changing the enclosure.
If moisture has affected energized components, the equipment should be evaluated by qualified personnel before it is returned to service.
12. What Should Buyers Ask Before Ordering an Outdoor Electrical Enclosure?
For OEM buyers, distributors, EPC contractors, and electrical equipment purchasers, condensation prevention should be discussed before confirming the final enclosure specification.
Buyer Checklist
| Question | Why It Matters |
|---|---|
| Where will the enclosure be installed? | Determines environmental exposure |
| What is the required IP rating? | Defines relevant ingress-protection requirements |
| What is the ambient temperature range? | Supports thermal design |
| What humidity conditions are expected? | Helps evaluate dew-point risk |
| Will the enclosure be exposed to direct sunlight? | Influences temperature cycling |
| Are electronic monitoring components included? | Adds environmental requirements |
| Are additional cable entries required? | May affect completed enclosure protection |
| Is pressure equalization needed? | Can help with seal stress and moisture management |
| Is a heater or humidity controller required? | May reduce condensation risk |
| What tests and documentation are available? | Supports purchasing verification |
Buyers should request specifications for the complete assembly rather than relying solely on the nominal IP rating of an empty enclosure.
13. Frequently Asked Questions
FAQ 1: Does IP65 mean an electrical enclosure is waterproof?
IP65 indicates dust-tight protection and resistance to water jets under defined test conditions.
It does not mean that an enclosure is suitable for all water exposures, prolonged immersion, or every installation environment.
It also does not guarantee that condensation will never form inside.
FAQ 2: Why is there water inside my IP65 junction box?
Possible causes include internal condensation, damaged gaskets, unsuitable cable glands, unsealed openings, or water entering along a cable.
Inspect the enclosure before determining the cause.
FAQ 3: Can IP66 or IP67 prevent condensation?
Not automatically.
IP66 and IP67 describe particular external ingress-protection tests.
Condensation depends primarily on the relationship between internal moisture, dew point, and surface temperature.
FAQ 4: Can a breather vent prevent condensation completely?
No.
A suitable membrane vent can help equalize pressure and reduce trapped moisture, but it cannot guarantee zero condensation under every environmental condition.
Vent performance also depends on correct selection, positioning, and installation.
FAQ 5: Are anti-condensation heaters suitable for all electrical cabinets?
No.
Heaters require appropriate power, space, control, and thermal design.
They must be suitable for the enclosure contents and application environment.
FAQ 6: Can silica gel prevent condensation inside an electrical enclosure?
Desiccants such as silica gel can absorb a limited amount of moisture in suitable applications.
However, they have finite capacity and require replacement or regeneration.
They are not a universal substitute for proper sealing, pressure management, or engineered humidity control.
FAQ 7: Is condensation especially important in solar PV combiner boxes?
Yes.
Outdoor PV equipment may experience strong solar heating, cooler nighttime conditions, humidity, and weather exposure.
Condensation can affect internal electrical connections and electronic components.
The design should consider moisture risk alongside electrical protection.
FAQ 8: Should I drill a drainage hole in an IP65 enclosure?
Not without an engineered and approved design.
An uncontrolled opening may compromise ingress protection and introduce additional contamination or water-entry risks.
Use compatible drainage components where the application requires them.
14. Conclusion: IP65 Protection Is Only One Part of Moisture Management
Condensation inside an IP65 electrical enclosure is not necessarily evidence of defective waterproofing.
An enclosure may successfully resist external water jets while still containing enough internal water vapor to form droplets during temperature changes.
The key is to understand the actual moisture mechanism.
For reliable long-term operation:
- Select an enclosure with suitable ingress protection.
- Check cable entries and sealing interfaces.
- Evaluate temperature and humidity conditions.
- Consider appropriate pressure-equalization or thermal-management solutions.
- Protect moisture-sensitive electrical components.
- Establish a practical inspection and maintenance plan.
IP protection controls external exposure. Condensation prevention requires attention to the environment inside the enclosure.
Both are important for dependable outdoor electrical installations.
About KUANGYA
KUANGYA supplies electrical protection components and photovoltaic combiner box solutions for industrial and solar energy applications.
Our product scope includes DC surge protective devices, DC fuse holders, DC circuit breakers, and PV combiner box configurations.
For a project involving an outdoor solar combiner box, buyers can discuss environmental exposure, string count, system voltage, internal electrical components, monitoring requirements, and enclosure specifications before confirming the configuration.
If your project requires a customized photovoltaic combiner box, contact KUANGYA with your electrical and environmental requirements.
Website: www.cnkuangya.com
Email: Please use the contact information published on the official KUANGYA website.
Discuss your PV combiner box requirements with KUANGYA before finalizing your outdoor enclosure design.
Technical note: This article provides general engineering guidance. Final enclosure selection, thermal design, installation, inspection, and maintenance must comply with applicable electrical requirements and the instructions for the specific products used. Illustrative scenarios are not presented as documented field incidents.
