Visão Geral do Artigo (Resumo Executivo)

Solar PV systems are widely recognized as a safe and clean energy source. However, Solar PV Fire incidents still occur globally, particularly in utility-scale plants and commercial rooftop installations.

Most fire events are not caused by PV modules themselves, but by failures in DC-side electrical infrastructure, especially:

• PV distribution boxes (combiner boxes)
• Loose DC connections
• Surge protection failure (SPD)
• Overcurrent conditions
• Environmental degradation over time

Este artigo explica:

• The real engineering causes of Solar PV Fire incidents
• How fires develop step by step inside PV systems
• Documented global case patterns from EPC and insurance reports
• Why DC systems behave differently from AC systems in fire scenarios
• Early warning signs often ignored during operation

The goal is to provide a practical, engineering-based understanding of fire risk—not theoretical safety advice.

1. Why Solar PV Fire Still Happens in Modern PV Systems

Despite improvements in PV technology, fire risk has not been eliminated. In fact, as system voltage increases from 600V to 1500V DC, the consequences of electrical faults become more severe.

A PV system is not a single device—it is a distributed electrical network exposed to environmental stress for 20–25 years.

The highest risk area is not the solar module, but the balance-of-system (BOS) components, especially the distribution box.

PV Fire Risk Distribution (Engineering Observation)

Insight de Engenharia Fundamental

Most Solar PV Fire incidents originate at connection points, not energy generation components.

This is a critical distinction often missed in non-engineering discussions.

2. Electrical Mechanisms Behind Solar PV Fire

To understand fire prevention, we must first understand how fire actually develops inside PV systems.

A PV fire is almost never instant. It is usually the result of a progressive electrical degradation process.

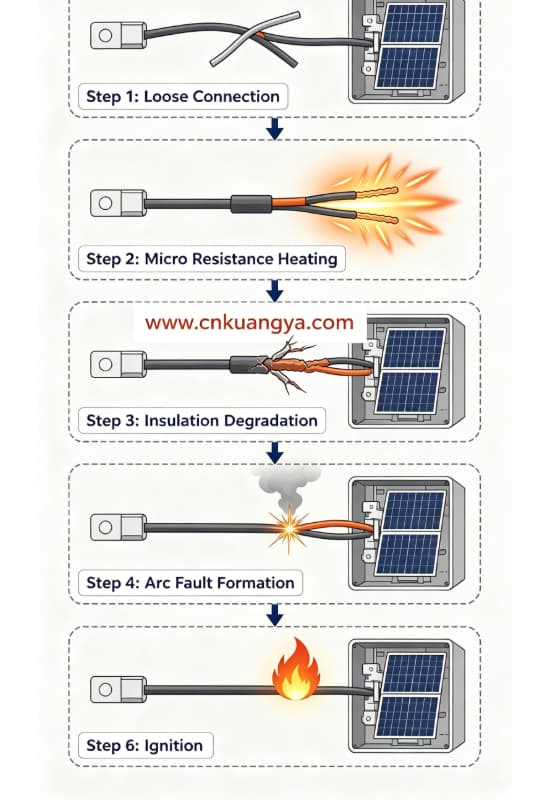

Fire Development Stages in PV Systems

Engineering Explanation

At early stages, the system still operates normally. This is why PV fire risk is often called a:

“Hidden degradation failure model”

Unlike mechanical failures, electrical degradation is not visible until thermal thresholds are exceeded.

3. Real-World Solar PV Fire Case Patterns (EPC & Insurance Data)

Across global EPC projects, fire investigations reveal consistent patterns. While each incident differs in detail, the root causes are surprisingly similar.

Observed Fire Scenarios

Studies on photovoltaic system safety indicate that DC-side electrical faults in balance-of-system components are a leading cause of fire incidents in solar installations, as documented in U.S. Department of Energy solar fire safety guidance.

Key Pattern Across All Cases

Fire origin is almost always located in DC junction or distribution components, not generation equipment.

Fatores de Aceleração Ambiental

PV fire risk increases significantly depending on environment:

4. Why DC Systems Are More Fire-Prone Than AC Systems

Understanding DC behavior is essential in analyzing Solar PV Fire mechanisms.

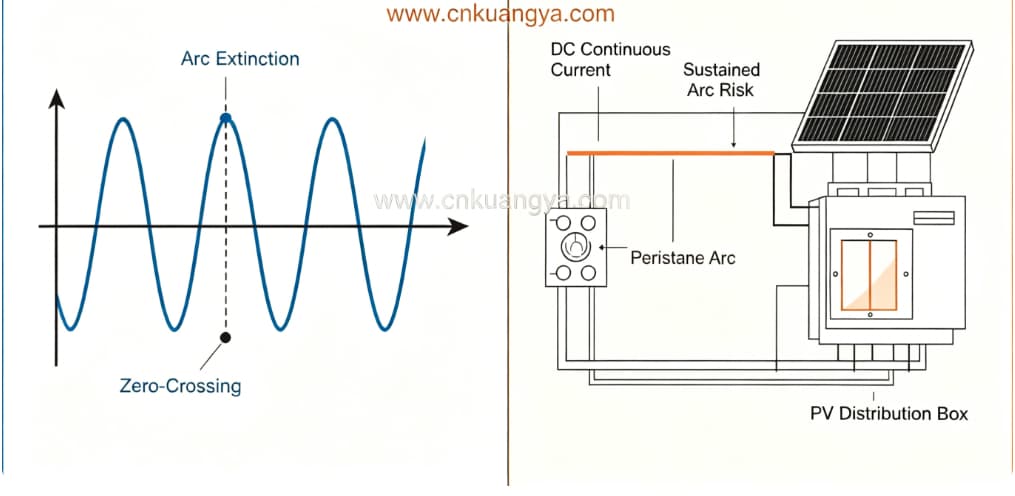

Comparação do comportamento de falha em CA vs CC

Engineering Explanation

In AC systems, current naturally drops to zero 50–60 times per second, helping extinguish arcs.

In DC PV systems:

• Current is continuous
• Arc is self-sustaining
• Heat accumulation is constant

This makes DC faults significantly more dangerous in fire scenarios.

5. Primary Causes of Solar PV Fire (Engineering Breakdown)

PV fire incidents are rarely caused by a single issue. Instead, they result from combined stress factors.

Root Cause Categories

1. Electrical Overstress

• Overcurrent conditions
• Incorrect fuse sizing
• String mismatch design

2. Connection Failures

• Conexões de terminais frouxas
• Poor crimping quality
• Afrouxamento induzido por vibração

Eventos de surto

• Queda de raios
• SPD miscoordination
• Transient voltage spikes

4. Environmental Degradation

• Entrada de umidade
• Corrosão salina
• Acúmulo de poeira

5. Component Aging

• Quebra de isolamento
• Fadiga por ciclo térmico
• Degradação do DPS

Perspetiva de Engenharia

Most PV fires are not sudden failures.

They are:

“Accumulated small defects reaching a thermal tipping point.”

6. Early Warning Signs Before Solar PV Fire (Often Ignored)

One of the most critical issues in real PV operation is that early warning signs are often visible—but ignored.

Indicadores Precoces Comuns

Realidade da engenharia

In most real EPC cases:

Systems operate normally until failure suddenly becomes visible.

But in reality, degradation has already been ongoing for weeks or months.

7. Transition to Protection Strategy (System-Level Perspective)

At this stage, understanding the causes is not enough. What matters is how to prevent escalation at each stage of failure development.

In real photovoltaic system design, surge protection and overcurrent protection must be coordinated to ensure a complete DC side protection strategy for solar PV systems.

Moderno Solar PV Fire prevention strategy is based on layered protection:

• Camada de proteção elétrica (fusíveis, disjuntores)
• Camada de proteção contra surtos (coordenação de DPS)
• Monitoring layer (temperature / arc detection)
• Isolation layer (DC disconnect systems)
• Suppression layer (fire extinguishing systems)

Each layer targets a different failure stage.

8. PV Distribution Box Design: Where Fire Risk Is Actually Decided

In real EPC engineering, many Solar PV Fire incidents are not caused during operation, but are already “pre-designed” at the engineering stage.

PV system design and installation safety should comply with international photovoltaic standards, especially regarding DC system protection and wiring safety requirements under IEC 62548 photovoltaic array design standard.

The PV distribution box is the central convergence point of DC strings, and its internal layout directly determines thermal behavior, electrical stability, and fault response capability.

A poorly designed box can create heat concentration zones even if all components are compliant.

Key Design Factors Affecting Fire Risk

Perspetiva de Engenharia

One of the most underestimated issues in PV design is thermal accumulation inside sealed enclosures.

Even when electrical load is within specification, lack of ventilation or poor heat dispersion can lead to:

• Internal temperature rise during peak irradiance
• Accelerated insulation aging
• Increased terminal resistance over time

This slow thermal accumulation often becomes the hidden trigger of Solar PV Fire incidents.

9. Installation Quality: The Most Common Real-World Failure Source

Across EPC projects worldwide, installation quality remains one of the most critical factors in fire prevention.

Even with high-quality components, improper installation can introduce permanent electrical weaknesses.

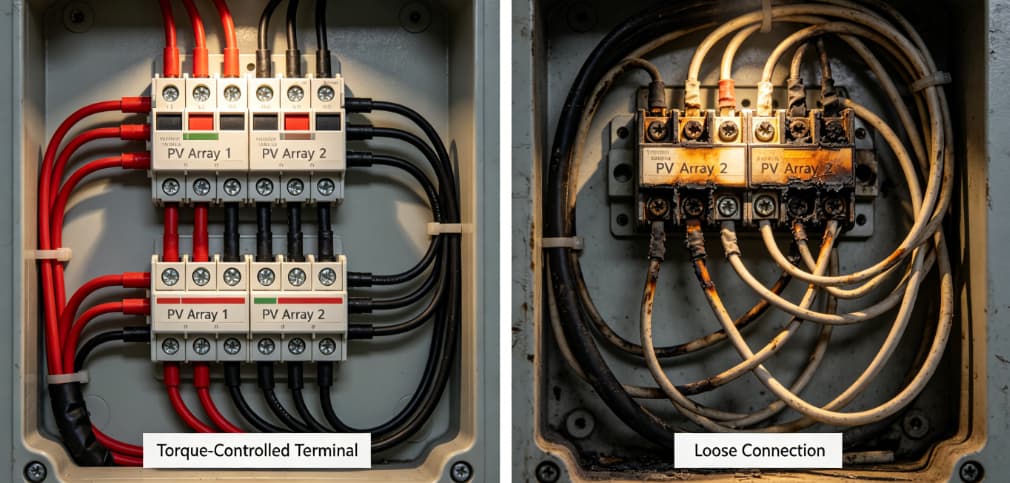

Common Installation Failures in PV Systems

1. Incorrect Torque Application

Terminals require precise torque values. However, in field installation:

• Under-tightening → micro-gap resistance → heating
• Over-tightening → conductor deformation → contact instability

Both conditions increase long-term thermal risk.

2. Poor Cable Management

Inside distribution boxes, wiring density is often underestimated.

Poor routing leads to:

• Localized heat accumulation
• Redução do fluxo de ar
• Mechanical stress on connectors

3. Improper Grounding

In many PV systems, grounding is treated as secondary.

However, incomplete grounding causes:

• Surge energy retention inside system
• SPD inefficiency
• Increased fire propagation risk

4. Lack of Commissioning Testing

Skipping proper testing leads to:

• Undetected reverse polarity
• Hidden resistance imbalance
• Early-stage arc faults

Resumo de Riscos da Instalação

10. Maintenance and Operation: Preventing Long-Term Degradation

PV systems are designed for long operational lifespans, typically 20 to 25 years. However, electrical components degrade continuously due to environmental exposure and thermal cycling.

Without proper maintenance, even a perfectly designed system will eventually develop fire risk conditions.

Recommended Maintenance Strategy

Why Thermal Imaging Matters

A termografia infravermelha é uma das ferramentas mais eficazes em Solar PV Fire prevention strategy.

Permite a detecção de:

• Abnormal heating at a single string level
• Early resistance increase
• Uneven load distribution inside box

Most importantly, it identifies problems antes que ocorram danos físicos.

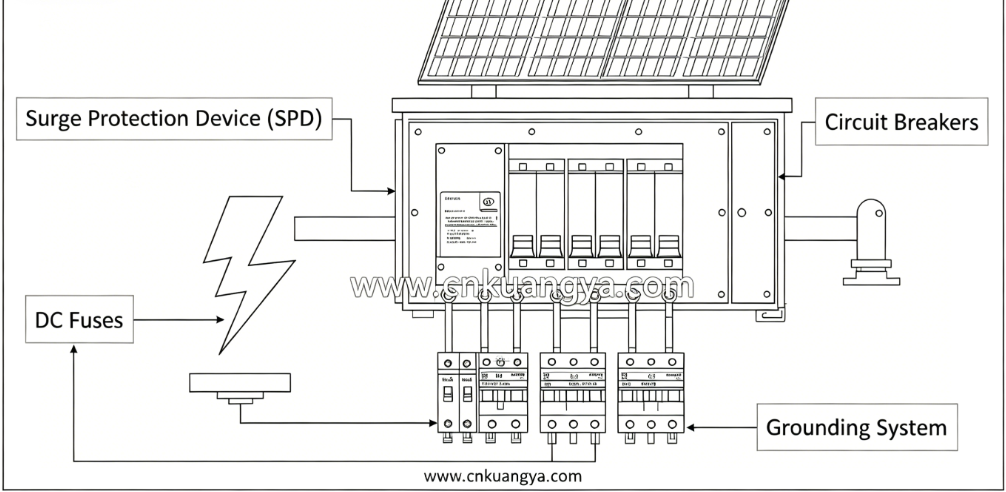

11. Role of Surge Protection Devices in Fire Prevention

Surge Protection Devices (SPDs) are critical in PV systems, especially in lightning-prone regions.

A surge event can introduce extremely high transient voltage into DC circuits. Without proper suppression, this energy can damage insulation inside distribution boxes and trigger arc formation.

Mecanismo de Proteção do DPS

Realidade da engenharia

SPDs do not fail instantly. Instead, they degrade gradually after multiple surge events.

If not monitored or replaced, they become a silent risk factor inside the system.

This is why SPD coordination is not optional—it is a core part of Distribution Box Fire Protection engineering design.

Surge Protection Devices play a critical role in reducing lightning-induced failure risks in photovoltaic systems. Proper coordination of DC surge protection devices for solar PV systems is essential to prevent insulation breakdown and fire ignition inside distribution boxes.

12. Advanced Solar PV Fire Protection Technologies

Modern PV systems are shifting from passive protection to intelligent active fire prevention systems.

1. Arc Fault Detection Systems (AFCI)

AFCI technology detects abnormal DC waveform patterns and identifies arc conditions before ignition occurs.

Once detected, the system automatically disconnects affected circuits.

Monitorização térmica baseada em IoT

IoT systems enable real-time monitoring of:

• Distribution box temperature
• String-level performance
• Abnormal resistance changes

This allows predictive maintenance rather than reactive repair.

Sistemas de supressão de incêndio por aerossol

Aerosol suppression is increasingly used inside PV distribution boxes.

Key advantages:

• No water damage to electrical components
• Automatic activation at ignition stage
• Effective in sealed electrical enclosures

It is particularly suitable for high-value EPC solar projects.

4. Sistemas de Desconexão Inteligentes

These systems allow remote or automatic disconnection of faulty strings or distribution boxes during abnormal events.

This significantly reduces fire escalation risk.

Industry Trend

Modern EPC projects are increasingly adopting a combined strategy:

Detection + Protection + Suppression + Remote Isolation

This reduces reliance on manual intervention, which is often too slow in DC fire scenarios.

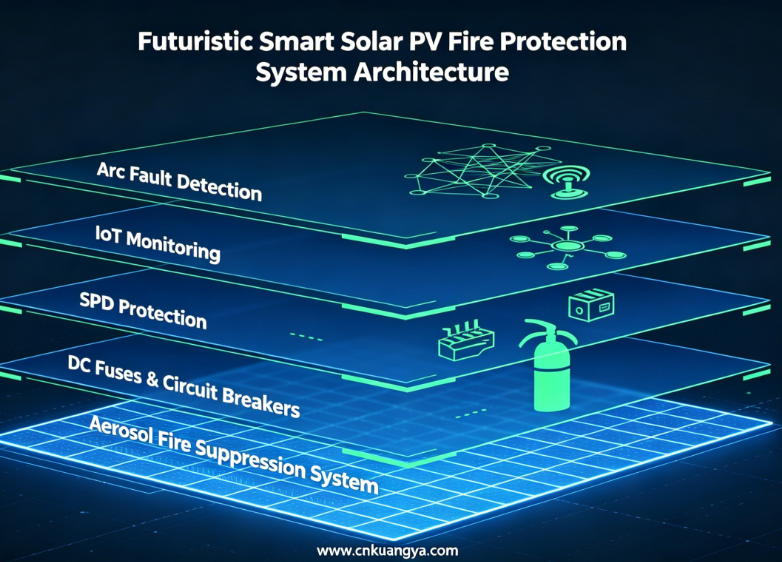

13. Arquitetura de Proteção Contra Incêndio em Sistemas Fotovoltaicos

A complete fire prevention system must integrate multiple layers into a unified architecture.

Layered Protection Model

Princípio de engenharia

The system is based on redundancy:

If one layer fails, another layer must still prevent escalation.

This is now considered standard practice in high-end PV EPC design.

14. Common Engineering Mistakes in Solar PV Fire Prevention

Despite advanced technology availability, many fire incidents still occur due to avoidable mistakes.

Frequent Mistakes in Real EPC Projects

Core Engineering Insight

Most Solar PV Fire incidents are not caused by sudden failure.

Eles são causados por:

“Small electrical and mechanical issues accumulating over time until system tolerance is exceeded.”

Fire protection strategies for photovoltaic systems should integrate both electrical fault prevention and early-stage suppression in enclosed electrical environments, as recommended by diretrizes de segurança solar fotovoltaica da NFPA.

Conclusão

Solar PV Fire risk is not the result of a single failure point, but a combination of electrical, mechanical, and environmental stress factors acting over time.

The most critical insight from real EPC projects is:

• Fires originate mainly in DC distribution infrastructure
• Failures develop gradually, not instantly
• Early warning signs are often visible but ignored
• Layered protection systems are essential for safety

Eficaz Solar PV Fire Prevention requires a full system approach combining:

• Proper design
• Correct installation
• Coordenação de proteção contra surtos
• Regular maintenance
• Intelligent monitoring systems

Only through this layered engineering strategy can long-term PV system safety be achieved.

FAQ – Solar PV Fire (Real EPC Pain Points)

1. What is the most common cause of Solar PV Fire?

Loose DC connections leading to arc faults inside distribution boxes.

2. Can SPDs fully prevent PV fires?

No. SPDs reduce surge-related risks but cannot prevent all fire causes such as loose connections or aging.

3. Why do PV fires often start in distribution boxes?

Because they are the convergence point of multiple DC strings under continuous electrical load.

4. How often should PV systems be inspected?

Thermal inspection should be conducted quarterly, especially in commercial and utility-scale systems.

5. O supressor de incêndio por aerossol é necessário em sistemas fotovoltaicos?

For high-value EPC installations, yes. It provides fast automatic suppression in enclosed electrical spaces.

6. What is the biggest EPC mistake in fire prevention?

Focusing only on equipment quality while ignoring installation torque control and long-term maintenance.
