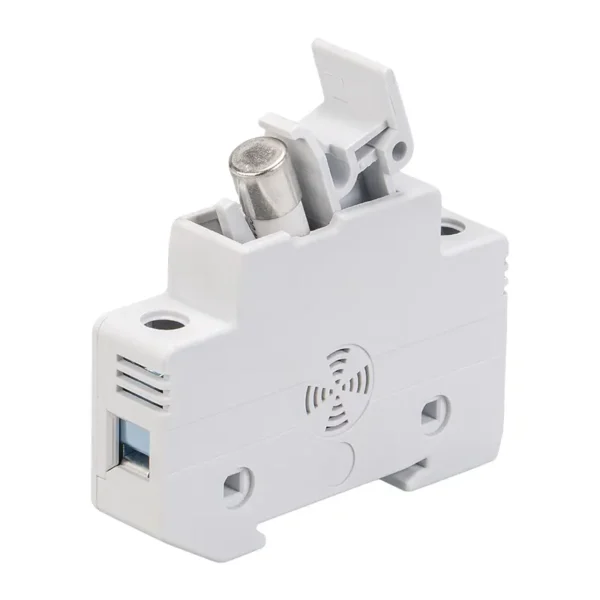

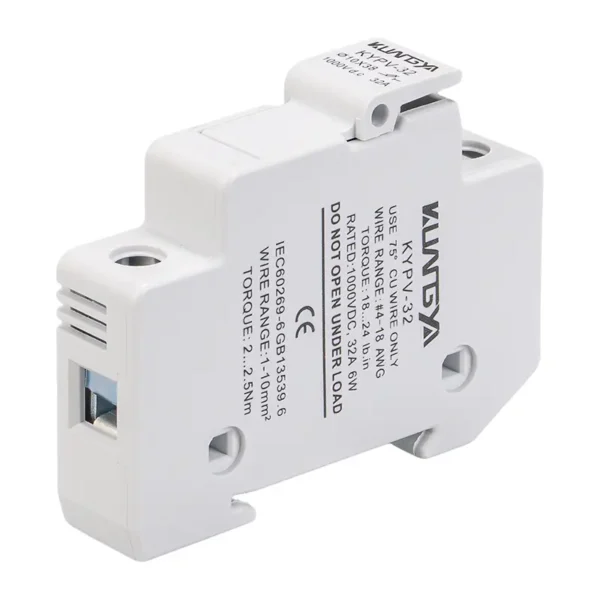

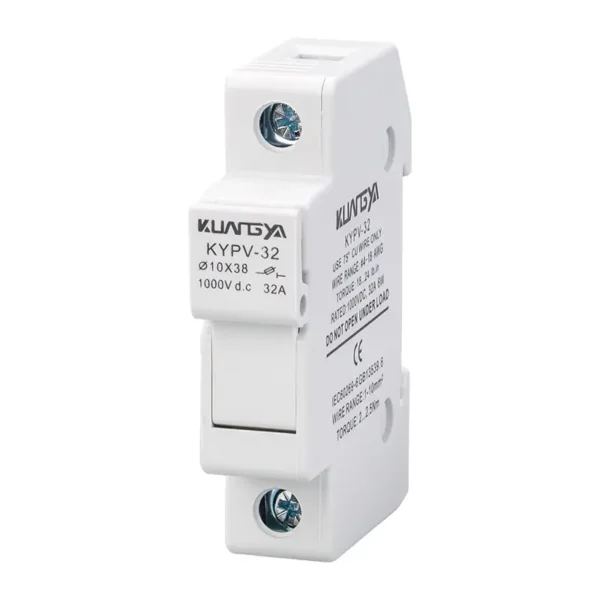

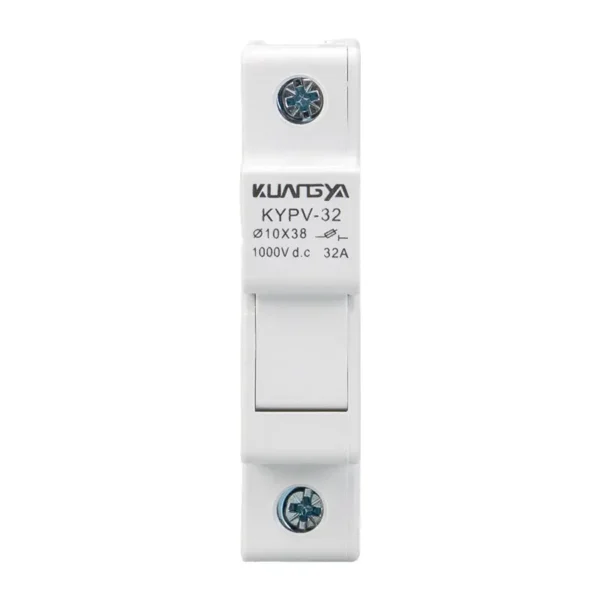

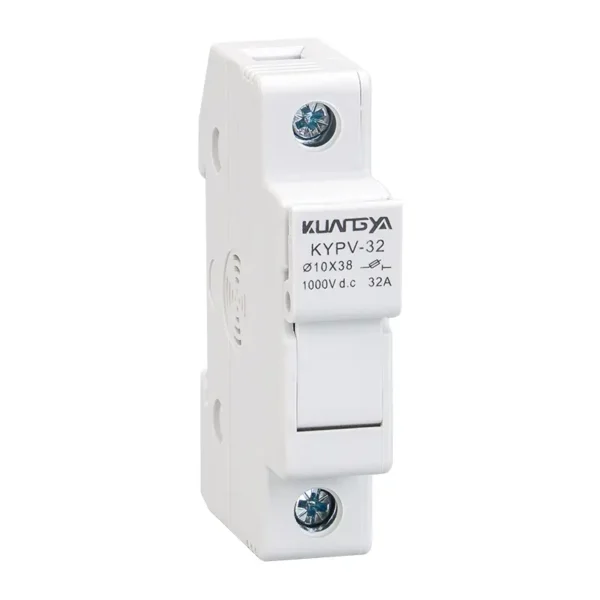

KYPV-32 - PVシステム用DCヒューズホルダー 1000V 10×38
1000V DC gPV protection, compatible with 10×38 mm fuse links up to 32A.
DIN-rail mounted fuse base with quick front latch, optional blown-fuse indicator.
IEC 60269-6 & UL 248-19 compliant, optimized for PV strings, combiner boxes, and DC circuits.
概要
について KYPV-32 is a DC fuse holder 1000V を想定している。
10×38 mm gPV fuse links with current ratings from 2–32A.
It provides reliable short-circuit and overload protection in PV strings, combiner boxes, and DC bus systems.
Featuring a flame-retardant body, ceramic fuse tube with quartz-sand arc quenching,
and a front quick-latch design, the KYPV-32 ensures safe operation and easy maintenance.
主な特徴
- Rated 1000V DC, current range up to 32A.
- Supports 10×38 mm gPV fuse links (replaceable).
- DIN-rail 35 mm installation, 1-pole compact design.
- オプション blown-fuse indicator for faster maintenance.
- 準拠 IEC 60269-6 そして UL 248-19.
仕様
| 定格電圧 | DC1000V |
|---|---|
| Fuse Size | 10×38 mm (gPV, 2–32A) |
| 取り付け | 35 mm DIN rail, 1 pole |
| Indicator | Available with / without light |
| Terminal Torque | 2.5 N·m (recommended) |
| Operating Temp | −40 °C … +90 °C (derating above 40 °C) |
| 規格 | IEC 60269-6; UL 248-19; GB/T 13539-6 |
Diagrams
アプリケーション
- PV string fuse protection (2–32 A circuits).
- PV combiner box input/output.
- ESS DCバスカップリング。
- Inverter and DC/DC converter protection.
よくあるご質問
Q1. What fuse size does KYPV-32 support?
It supports 10×38 mm gPV fuse links rated up to 32A.
Q2. Is there a blown-fuse indicator option?
Yes, with light / without light versions are available.
Q3. What standards does it comply with?
IEC 60269-6, UL 248-19, and GB/T 13539-6.
Q4. How is it mounted?
On a 35 mm DIN rail, single-pole holder with a front quick-latch.
Q5. What are the typical applications?
PV strings, combiner boxes, ESS, and inverter DC side protection.
お見積もり
Need help selecting the right DC fuse holder 1000V for your PV project?
Contact us today.
