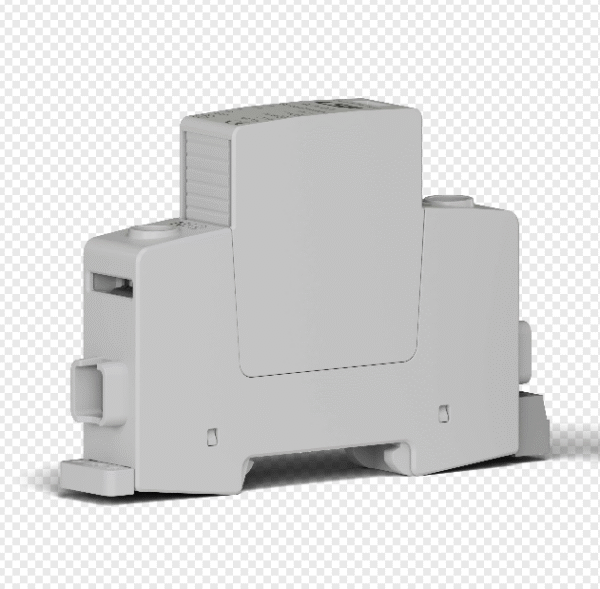

Type 1+2 Surge Protective Device 1P KYSPD-12.5T1+2-1P | Kuangya
Single-pole type 1+2 surge protective device 1P for residential and commercial boards.
Iimp 12.5 kA (10/350 μs); In 20 kA; Imax 40 kA.
Compact module with LED status window, pluggable cartridge, optional RC signaling.
Características principales
- Class I + II protection per IEC/EN 61643-11.
- Iimp 12.5 kA (10/350 μs); In 20 kA (8/20 μs); Imax 40 kA (8/20 μs).
- Nominal system voltage: 230 V AC; Uc: 275 V AC.
- Voltage protection level (Up): ≤ 1.5 kV.
- Fast response time < 25 ns.
- Pluggable module with thermal disconnector and green/red indicator window.
- Optional RC contacts for remote signaling.
- Compact size for single-pole boards requiring type 1+2 surge protective device 1P.
Especificaciones
| Parámetro | Value |
|---|---|
| Código del producto | KYSPD-12.5T1+2-1P |
| Categoría | Type 1+2 Surge Protective Device 1P |
| Tensión nominal del sistema | 230 V AC |
| Max. Continuous Operating Voltage (Uc) | 275 V AC |
| Impulse Discharge Current (Iimp, 10/350 μs) | 12.5 kA |
| Corriente nominal de descarga (In, 8/20 μs) | 20 kA |
| Max. Discharge Current (Imax, 8/20 μs) | 40 kA |
| Nivel de protección de tensión (arriba) | ≤ 1.5 kV |
| Tiempo de respuesta | < 25 ns |
| Backup Fuse (max) | 125 A gL/gG |
| Corriente nominal de cortocircuito (ISCCR) | 25 kA |
| Temperatura de funcionamiento | -40 °C … +70 °C |
| Montaje | 35 mm DIN rail (EN 60715) |
| Housing | Thermoplastic UL94 V-0 |
| Protection Degree | IP20 (built-in) |
| Remote Signaling | Optional RC contacts |
| Normas | CEI/EN 61643-11 |
This type 1+2 surge protective device 1P is ideal for residential and small commercial boards requiring compact but powerful SPD solutions.
Cableado y dimensiones

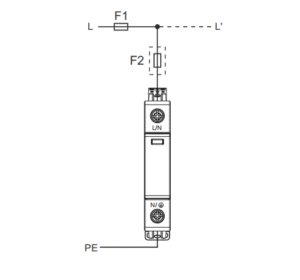

- Connection diagram: kyspd-12.5t1+2-1p-connection

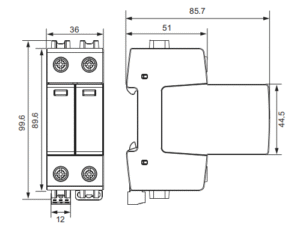

- Dimensions: kyspd-12.5t1+2-1p-dimensions
Aplicaciones
- Residential distribution boards.
- Commercial sub-panels needing type 1+2 surge protective device 1P.
- Small industrial equipment requiring coordinated SPD protection.
PREGUNTAS FRECUENTES
Where should KYSPD-12.5T1+2-1P be installed?
It should be installed in single-pole distribution boards as a type 1+2 surge protective device 1P.
What surges does it protect against?
This type 1+2 surge protective device 1P protects against lightning currents and transient surges.
Is it suitable for residential applications?
Yes, it is a compact type 1+2 surge protection device 1P ideal for residential and small commercial installations.
Does it support remote signaling?
Yes, RC contacts are available for remote monitoring of this type 1+2 surge protective device 1P.
What standards does it meet?
IEC/EN 61643-11 for surge protective devices.
