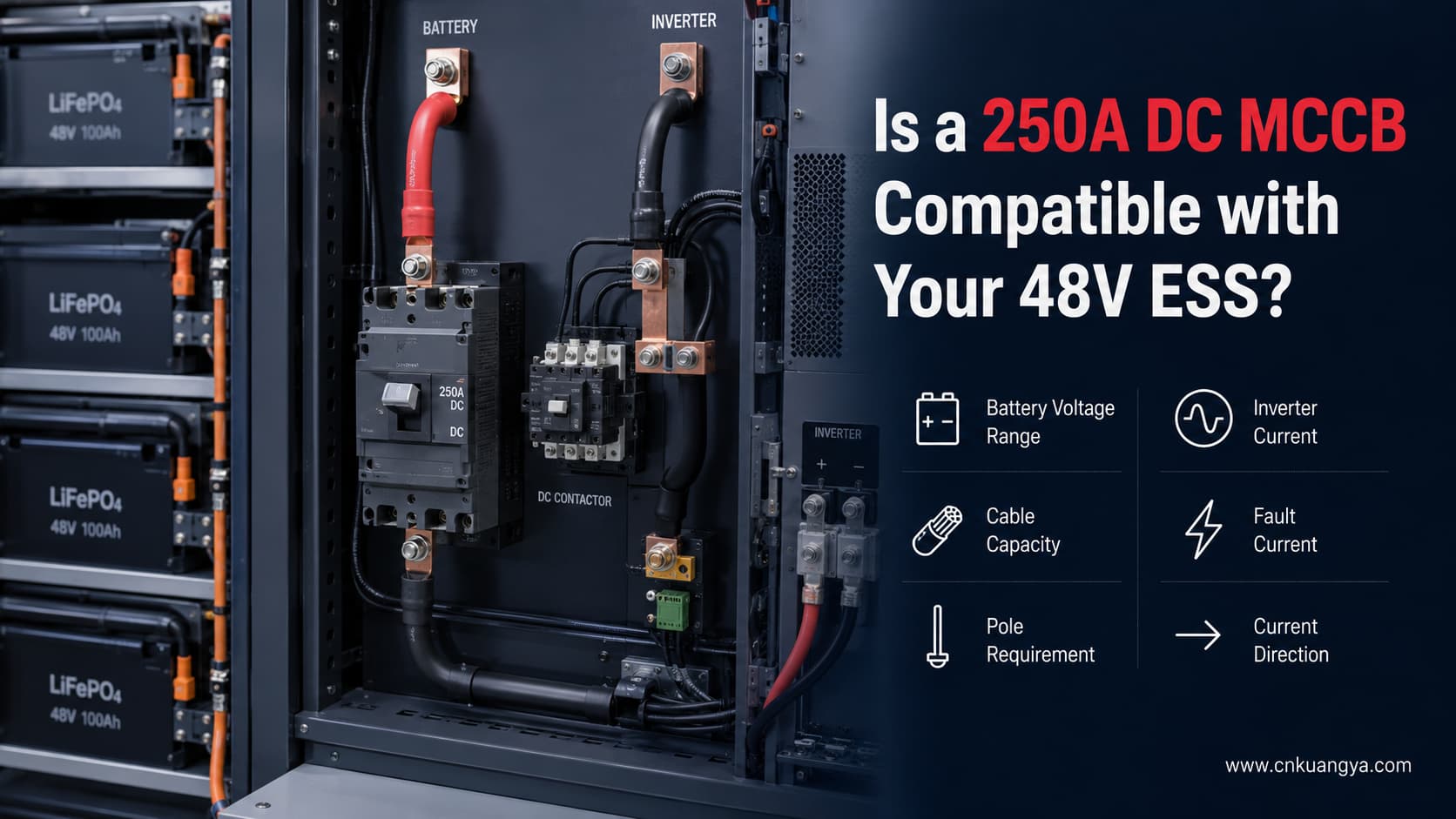

A 250A DC MCCB for 48V ESS can be a suitable choice for some battery energy storage systems, but the labels “48V” and “250A” alone are not enough to confirm compatibility.

Before selecting the breaker, you must verify the inverter’s real continuous power, minimum battery voltage, maximum charge and discharge current, cable capacity, available fault current, pole requirements, current direction, and the breaker’s documented DC performance.

If any of these parameters are unknown, the breaker should be treated as unconfirmed rather than assumed suitable.

Quick Compatibility Answer

Use the following table only as a preliminary screening tool.

Important: These categories are not IEC-defined breaker-selection ranges. They are only a practical first check.

A calculated current below 250A does not automatically confirm that a 250A MCCB is suitable.

Final selection must also verify:

• DC breaking capacity
• Cable and busbar protection
• Trip characteristics
• Temporary peak current
• Ambient-temperature derating
• Number of poles
• Grounding arrangement
• Current direction
• Manufacturer installation requirements

For the broader principles of voltage, current, breaking capacity, poles, and ESS breaker coordination, refer to our complete DC circuit breaker for ESS selection guide.

If you first want to understand why a low-voltage battery system still requires dedicated DC protection, read our guide explaining why a 48V ESS needs a dedicated DC circuit breaker.

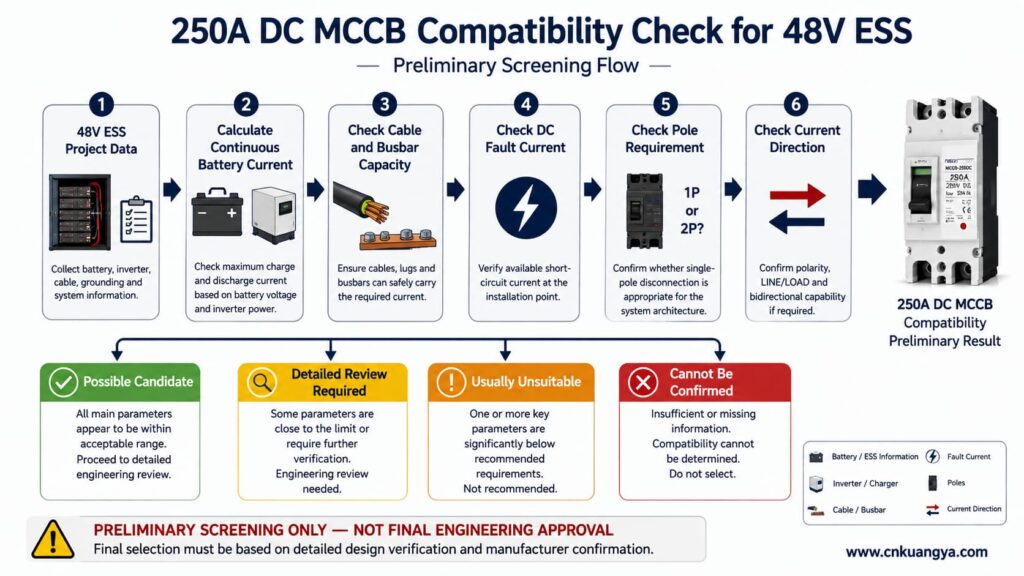

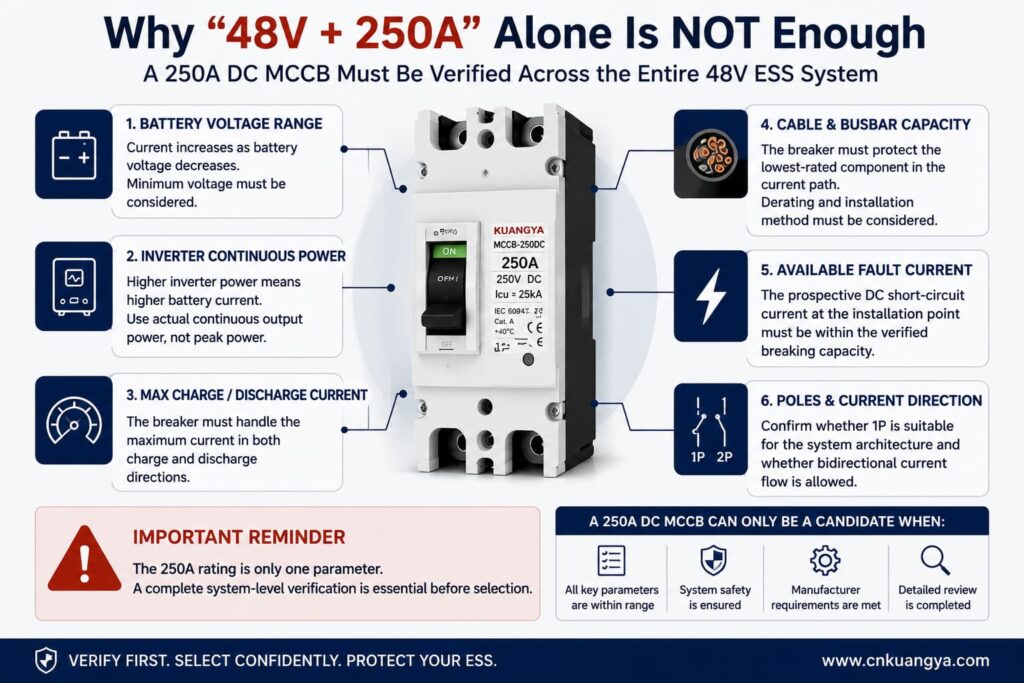

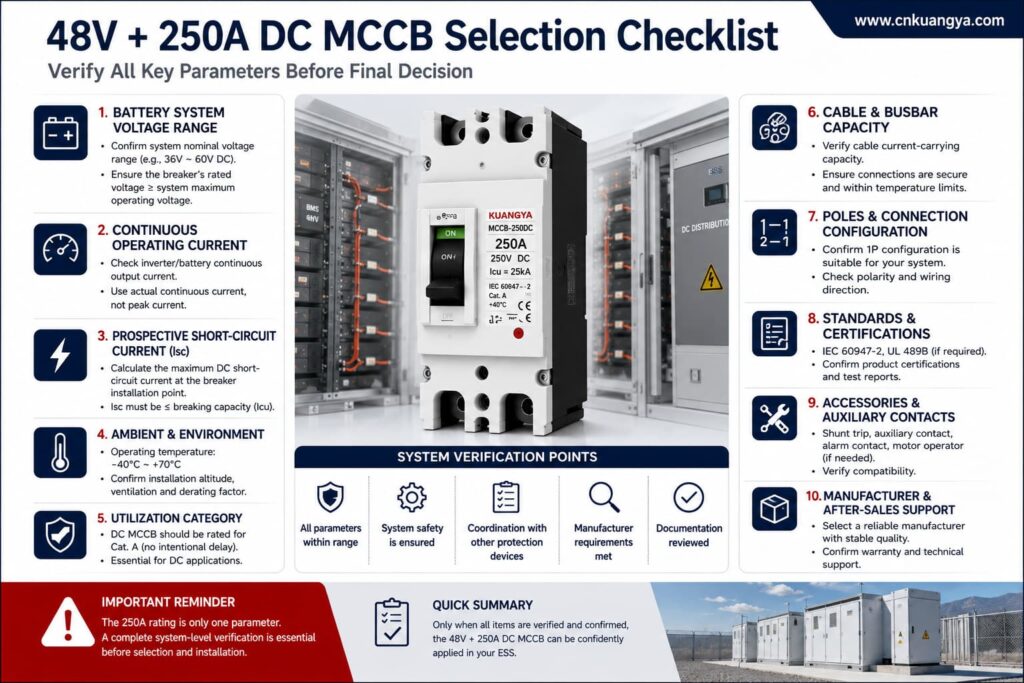

Check These Parameters Before Buying a 250A DC MCCB

A buyer should not send only:

“48V battery, 10kW inverter, need 250A breaker.”

That information is not sufficient for final model selection.

The following parameters should be provided before purchasing a 250A DC MCCB for 48V ESS.

The goal is not simply to find a breaker that can carry the expected current.

The goal is to find a protective device that can correctly protect the complete battery-side circuit.

Preliminary Battery Current Calculation

A useful starting point for estimating inverter battery-side current is:

I_DC = P_AC ÷ (V_battery × η)

Where:

• I_DC = estimated DC battery current in amperes
• P_AC = continuous real AC output power in watts
• V_battery = actual battery voltage under load
• η = inverter efficiency expressed as a decimal

For example:

95% efficiency = 0.95

This is a steady-state estimate only.

It does not automatically include:

• Inverter standby consumption
• Internal control-system consumption
• DC cable losses
• Temporary overload
• Motor starting current
• Transformer energisation
• Capacitor charging
• Current ripple
• Temperature effects
• Manufacturer-specific protection requirements

Use Watts, Not Just the VA Model Number

This distinction is important.

An inverter sold as a “10kVA” model does not automatically provide 10kW of continuous real output.

For example, a published 48V/10,000VA inverter/charger lists 8,000W continuous real output at 25°C, while its model designation is 10,000VA. The same manufacturer lists a maximum efficiency of 95%.

Therefore, always use the manufacturer’s continuous real power in watts when performing the current calculation.

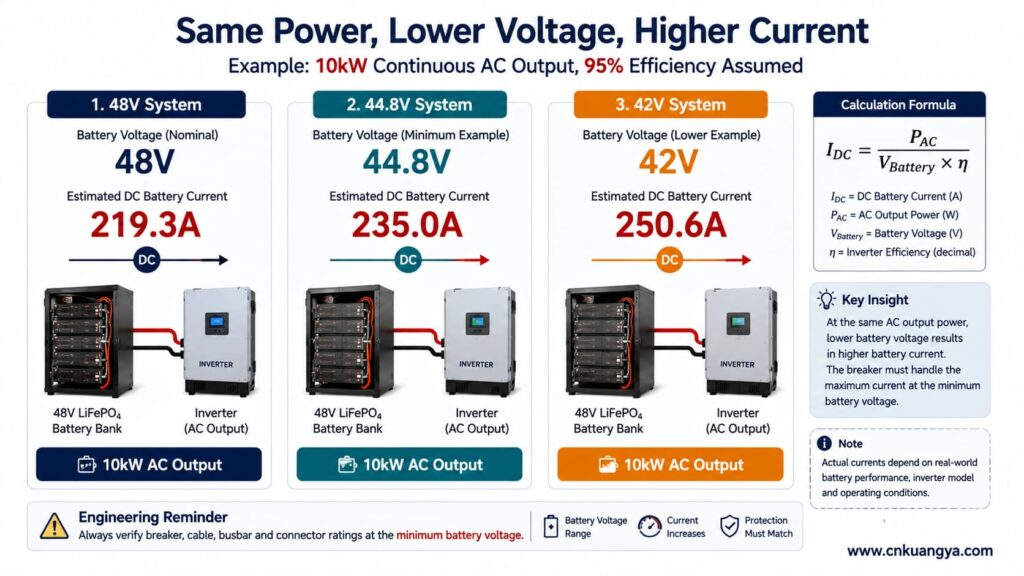

250A Compatibility Calculation Table

The following examples assume an inverter efficiency of 95%.

The 95% value is an assumption for comparison. Actual inverter efficiency varies with load, battery voltage, temperature, and product design.

Three different battery voltages are shown:

• 48V — nominal comparison point
• 44.8V — the published end-of-discharge voltage of one documented 51.2V LiFePO4 battery
• 42V — a generic lower-voltage example that applies only when the actual battery and inverter permit operation at 42V

These calculations do not prove whether the breaker is suitable.

They only answer one question:

Is the expected steady-state battery current obviously inconsistent with a 250A breaker?

If the result is already above 250A, the mismatch is clear.

If the result is below 250A, additional engineering checks are still required.

Why Minimum Battery Voltage Matters

A “48V battery system” does not remain at exactly 48.0V during operation.

Actual voltage changes with:

• Battery chemistry
• Number of cells in series
• State of charge
• Charge or discharge current
• Cell temperature
• Internal battery resistance
• Cable voltage drop
• BMS settings
• Inverter low-voltage limits

For the same output power:

Lower battery voltage means higher battery current.

That is why using only the nominal 48V value can underestimate the maximum continuous current.

Published 51.2V LiFePO4 Battery Example

Consider one documented 51.2V/100Ah LiFePO4 battery.

The manufacturer publishes the following values:

These values are listed in the manufacturer’s current technical data.

For this specific battery example, 44.8V is the published end-of-discharge voltage.

Therefore, if this battery is being used as the reference, the calculation should not silently substitute 42V.

Why 42V and 44.8V Must Not Be Mixed

A 42V calculation can still be technically useful—but only for a system whose actual manufacturer documentation permits operation at or near 42V.

For example:

Generic 42V System

10kW output, 42V battery voltage, 95% assumed efficiency:

10,000 ÷ (42 × 0.95) ≈ 250.6A

Published 51.2V Battery Example

10kW output, 44.8V end-of-discharge voltage, 95% assumed efficiency:

10,000 ÷ (44.8 × 0.95) ≈ 235.0A

These are two different operating assumptions.

The 250.6A result must not be presented as though it comes from the documented battery whose end-of-discharge voltage is 44.8V.

This distinction is particularly important when deciding whether a 250A DC MCCB is close to its expected continuous-current limit.

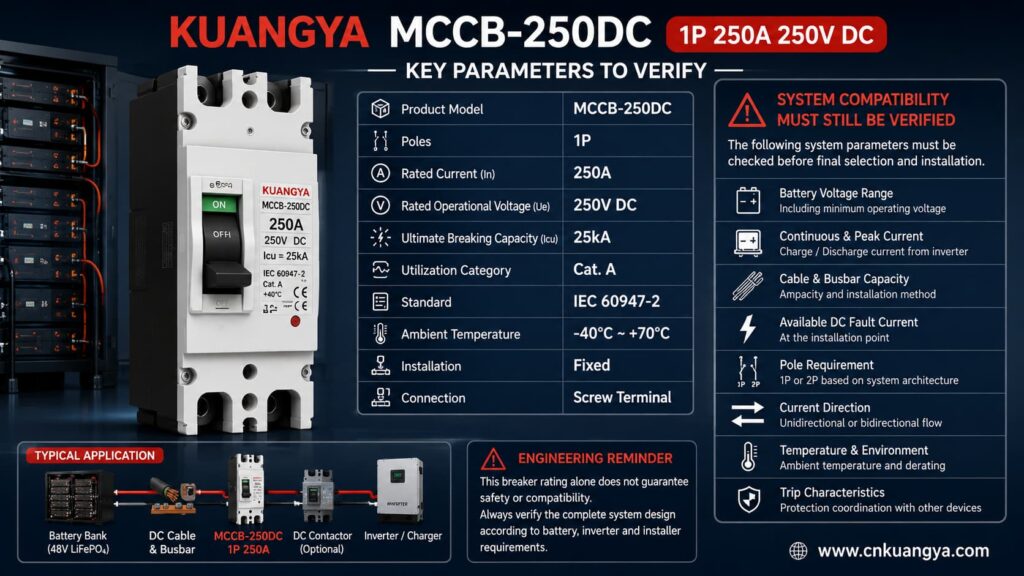

KUANGYA MCCB-250DC: Parameters to Verify

Before evaluating a specific 250A model, buyers who need a broader explanation of DC MCCB ratings, breaking capacity and application requirements can review our DC MCCB selection and standards guide.

For the KUANGYA 250A DC MCCB discussed in this application, the key product parameters used for compatibility review include:

These values describe the breaker.

Buyers can review the current MCCB-250DC 1P 250A 250V DC product specifications before submitting system data for compatibility confirmation.

They do not, by themselves, prove compatibility with a specific ESS.

For example:

A breaker may have a 250A rated current, but the cable may not safely carry 250A.

A breaker may have a high short-circuit rating, but the published value must be confirmed for the actual:

• DC voltage
• Pole arrangement
• Connection method
• Test standard
• Current direction
• Product version

For this reason, final selection should use the actual datasheet and technical documentation supplied with the offered product—not an AI-generated product image or recreated nameplate.

What Must Be Confirmed Beyond the Basic 250A Rating?

The words “250A, 250V DC” do not provide enough information for final engineering approval.

Before ordering, confirm the following where applicable.

If any of these parameters are critical to the project but unavailable, the product should remain unconfirmed until the manufacturer provides the required information.

When Can a 250A DC MCCB Be Considered?

A 250A DC MCCB for 48V ESS may be considered when the following conditions can be verified.

1. Maximum System Voltage Is Within the Breaker Rating

A nominal 48V or 51.2V battery system may operate at a considerably higher voltage while charging.

For example, the published 51.2V LiFePO4 battery discussed above specifies a charging voltage between 56V and 56.8V.

The breaker voltage rating must therefore be checked against maximum system voltage, not only nominal voltage.

A 250V DC breaker may appear to provide substantial voltage margin in a 48V-class ESS, but this only confirms one part of the compatibility check.

It does not confirm:

• Current suitability
• Breaking capacity
• Pole configuration
• Isolation
• Bidirectional operation

2. Continuous Current Must Be Compatible with the Trip Characteristic

Suppose the calculated battery current is 188A.

A 250A breaker may appear reasonable from the current rating alone.

But actual performance also depends on:

• Breaker thermal trip behaviour
• Installation temperature
• Terminal temperature
• Enclosure ventilation
• Mounting arrangement
• Duration of full-power operation
• Manufacturing tolerances

The same issue becomes more important when calculated current approaches 230–240A.

For example:

235A < 250A

is mathematically true.

But that does not automatically prove that the breaker can carry 235A continuously in a hot battery cabinet without approaching its thermal trip region.

The actual trip curve and manufacturer derating information are required.

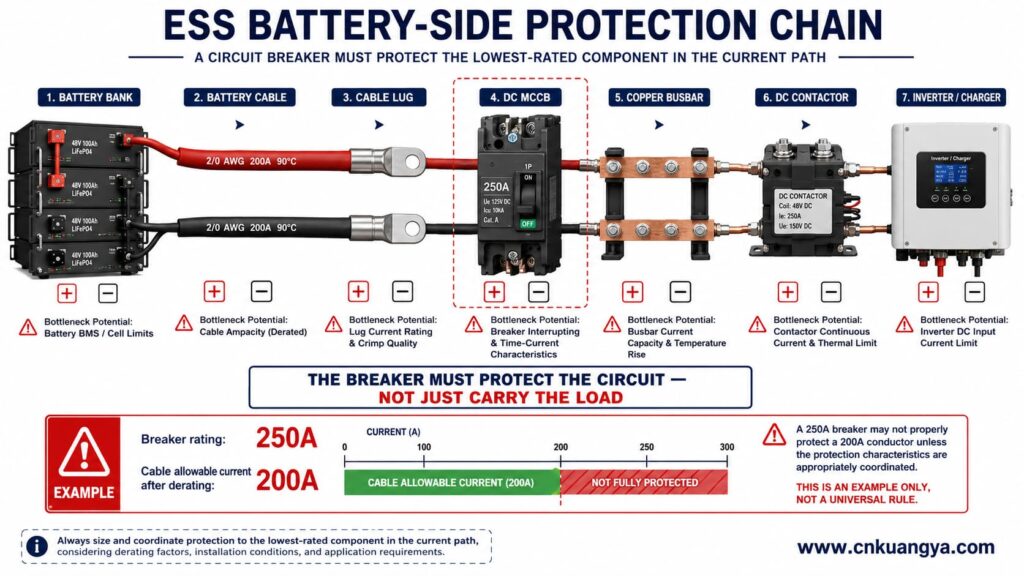

3. The Breaker Must Protect the Cable

One of the most important breaker-selection principles is often overlooked:

The breaker is not selected only to carry the load. It must also protect the conductors.

The complete current path can contain:

• Battery cable
• Cable lug
• Connector
• Copper busbar
• Contactor
• Shunt
• Distribution cable
• Inverter terminal

The lowest-rated component must be considered.

For example, if a cable can safely carry only 200A after temperature and installation derating, selecting a 250A breaker simply because the inverter may draw 180A does not automatically provide correct conductor protection.

The cable calculation must be reviewed separately.

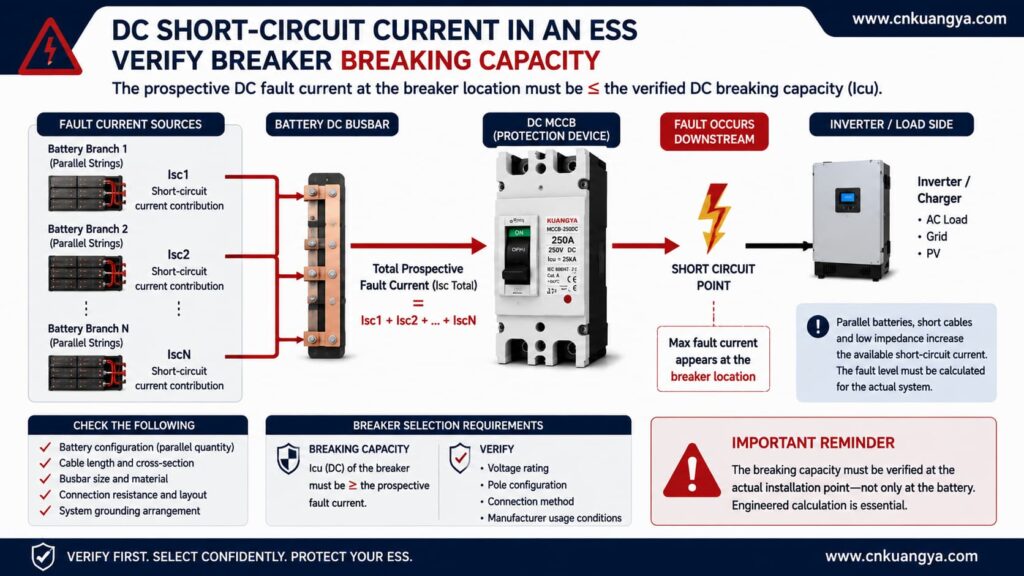

4. Available Fault Current Must Be Within the Verified DC Breaking Capacity

A battery bank can supply substantial short-circuit current.

Prospective fault current depends on:

• Cell internal resistance
• Number of parallel battery branches
• Cable resistance
• Busbar resistance
• Connection resistance
• BMS behaviour
• Contactors
• Fault location

The circuit breaker must be capable of interrupting the prospective DC fault current at its installation point.

ABB’s technical application guide on circuit breakers for direct current applications provides additional engineering guidance on DC network configurations, earthing arrangements, protective-device selection and short-circuit calculations.

Do not use a simple rule such as:

“Fault current is below 25kA, so the breaker is automatically suitable.”

A more accurate statement is:

The prospective fault current must not exceed the breaker’s verified DC breaking capacity at the applicable voltage, pole configuration, connection method, and test conditions.

IEC 60947-2:2024 applies to low-voltage circuit breakers with rated circuit voltages up to 1,000V AC or 1,500V DC. It does not mean every breaker covered by the standard has the same DC breaking capacity.

The product-specific data still control the final selection.

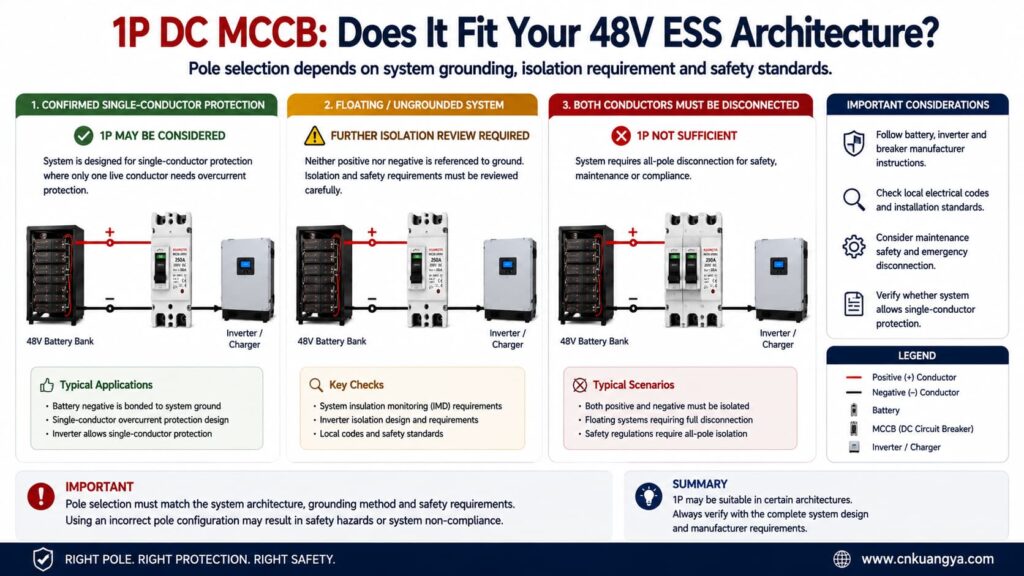

5. A 1P Breaker Must Match the System Architecture

For projects requiring UL certification, the UL molded-case circuit breaker marking and application guide also identifies dedicated markings and wiring requirements for circuit breakers evaluated for battery power-supply systems.

The KUANGYA product being evaluated is a 1P device.

That means the project must answer an important question:

Is single-conductor disconnection appropriate for this ESS?

A 1P breaker may be considered where:

• The system architecture permits only one conductor to be switched
• Grounding has been confirmed
• Manufacturer documentation permits the arrangement
• Full-pole isolation is not required at this location
• The breaker’s single-pole DC rating is sufficient

A 1P breaker should not automatically be selected where:

• Positive and negative conductors must both be disconnected
• The inverter manufacturer requires 2P isolation
• Local requirements require all-pole isolation
• The system is floating and the disconnection method has not been verified
• Insulation-monitoring architecture requires another arrangement

There is no universal rule that says:

“Every 48V ESS needs 1P.”

There is also no universal rule that says:

“Every 48V ESS needs 2P.”

The system architecture determines the answer.

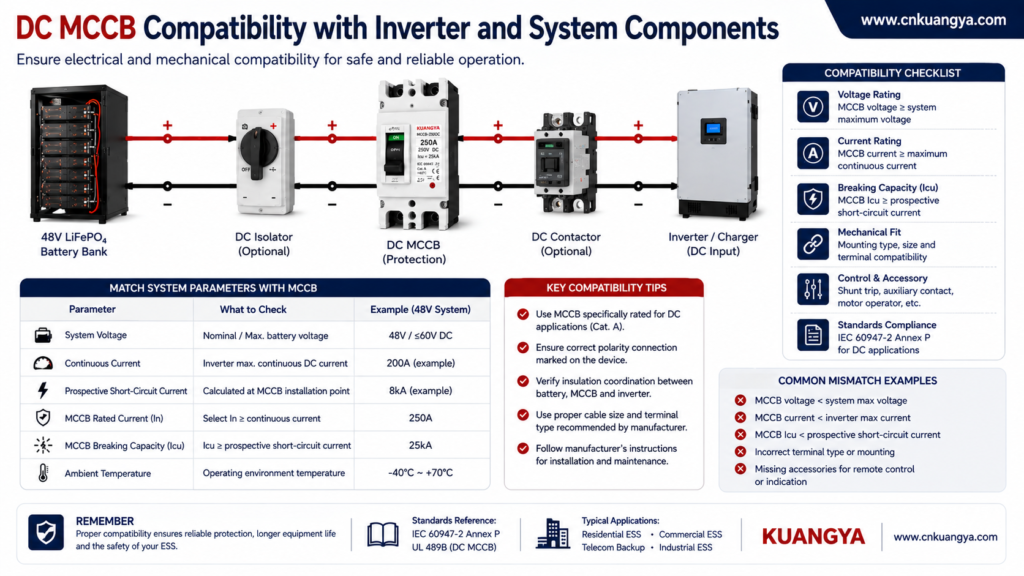

6. Charging and Discharging Current Must Both Be Considered

Battery energy storage systems can operate in two directions.

During discharge:

Battery → Inverter → AC load

During charging:

Charger/Inverter → Battery

That means the same battery cable may carry current in opposite directions at different times.

Some DC protection devices are designed for bidirectional operation.

Others may have:

• Polarity requirements
• LINE/LOAD requirements
• Direction-sensitive arc-control arrangements

Therefore, the words:

250A / 250V DC

do not automatically prove that a breaker can interrupt fault current safely in both directions.

Before using the MCCB in a bidirectional ESS circuit, confirm:

• Polarity requirements
• LINE and LOAD terminals
• Normal charging direction
• Normal discharging direction
• Fault interruption direction
• Approved wiring diagram

If the manufacturer has not documented bidirectional interruption capability, do not claim that capability in the project specification.

When Should This 250A MCCB Not Be Selected?

A useful compatibility guide should explain not only when a product may work, but also when it should not be selected.

Do not approve this 250A 1P DC MCCB solely because the system is described as “48V”.

Further review or another protective device is required when:

• Continuous current reaches or exceeds 250A
• Cable capacity is below the required breaker protection level
• Both positive and negative conductors must be disconnected
• The inverter manufacturer specifies a 2P device
• Grounding arrangement is unknown
• Prospective fault current exceeds verified DC breaking capacity
• Breaker trip data are unavailable
• Cabinet temperature is outside confirmed operating conditions
• Bidirectional operation is required but not documented
• The inverter manufacturer specifies a fuse that cannot be substituted
• Required certification does not cover the offered model
• The buyer supplies only “48V + inverter power” without other system data

Missing information should not be treated as permission to assume compatibility.

Purchase Scenario 1: 5kW Inverter

Assume:

Calculation:

I_DC = 5,000 ÷ (44.8 × 0.95)

I_DC ≈ 117.5A

Preliminary Result

The estimated continuous current is substantially below 250A.

However:

A 250A breaker is not automatically better simply because its rated current is much higher than 117.5A.

The real questions are:

• What size cable is installed?
• What current must the cable be protected against?
• What does the inverter manufacturer recommend?
• What is the battery branch current limit?
• What is the breaker trip characteristic?
• What fault current is available?

For a relatively small 5kW system, a 250A breaker may be oversized for some designs.

Purchase Scenario 2: 8kW Inverter

Assume:

Calculation:

I_DC = 8,000 ÷ (44.8 × 0.95)

I_DC ≈ 188.0A

Preliminary Result

A 250A breaker may enter the candidate range.

But before approving it, verify:

• Maximum inverter overload
• Maximum discharge current
• Maximum charge current
• Peak-current duration
• Cable size
• Busbar capacity
• Breaker trip curve
• Ambient-temperature derating
• Available fault current
• 1P compatibility
• Current direction

The 188A calculation is a useful screening result—not a final selection.

Purchase Scenario 3: 10kW Inverter at 44.8V

Assume:

Calculation:

I_DC = 10,000 ÷ (44.8 × 0.95)

I_DC ≈ 235.0A

Preliminary Result

The calculated current is below 250A but relatively close to the breaker rating.

This is a case where simply saying:

“235A is below 250A, so use a 250A breaker.”

would be too simplistic.

The project must determine:

• Can the breaker carry this current continuously at the expected cabinet temperature?
• What is its thermal trip characteristic?
• Can the battery bank continuously supply 235A?
• Is the cable safely rated above the protected current?
• Does the inverter operate continuously at 10kW?
• What happens during temporary overload?
• What device does the inverter manufacturer specify?

A detailed engineering review is required.

Purchase Scenario 4: Generic 10kW System at 42V

Now consider a different system where the battery and inverter documentation actually permit operation at 42V.

Calculation:

I_DC = 10,000 ÷ (42 × 0.95)

I_DC ≈ 250.6A

Preliminary Result

The estimated steady-state current already slightly exceeds 250A.

Under these assumptions, a 250A breaker should not simply be selected for continuous 10kW operation.

The project may need to reconsider:

• Breaker current rating
• Minimum operating voltage
• Continuous inverter power
• Battery architecture
• Cable configuration
• Manufacturer recommendations

Again, this 42V example is a generic system example.

It is not the published lower-voltage limit of the 51.2V battery discussed earlier.

Real Manufacturer Example: Why the Formula Is Only the Starting Point

A published 48V/10,000VA inverter/charger demonstrates why a simple current calculation cannot determine the final protection device.

The manufacturer lists approximately:

These values are published in the current installation manual.

At 44.8V and an assumed 95% efficiency, 8,000W produces an estimated current of approximately:

188A

Yet the manufacturer recommends a 400A battery fuse for the relevant model.

That does not mean the inverter continuously consumes 400A.

It demonstrates that final protective-device selection can also depend on:

• Peak power
• Temporary overload
• Inrush behaviour
• Fuse time-current characteristics
• Cable configuration
• Internal equipment design
• Manufacturer testing
• Nuisance-operation prevention

Most importantly, the manufacturer explicitly instructs installers to use the correct protective device and not substitute a different type without referring to the documentation.

Therefore:

A manufacturer-specified 400A fuse cannot automatically be replaced by a 400A MCCB—or a 250A MCCB—simply because the ampere numbers appear reasonable.

Parallel Battery Example

Now consider two identical 51.2V/100Ah batteries connected in parallel.

Each published battery has:

• 100A maximum continuous discharge current
• 200A maximum 10-second discharge current
• 100A maximum continuous charge current
• 44.8V end-of-discharge voltage

Assuming correct and balanced parallel operation:

100A + 100A = 200A

So the theoretical combined continuous discharge capability is 200A.

Does that automatically mean one 250A main breaker is correct?

No.

The main breaker must still be coordinated with the total output conductors, but each battery branch must also be evaluated separately.

If one battery branch develops a fault, the healthy parallel branch may contribute current into that fault.

Therefore, branch protection may be required according to:

• Battery manufacturer requirements
• Branch cable capacity
• Terminal limits
• Available reverse fault current
• System architecture

Do not publish a specific branch fuse rating such as “125A” unless the rating is supported by the actual battery, cable, and protection calculation.

A technically safer description is:

Individual Branch Protection — Size According to Battery, Cable and System Limits

1P Compatibility Checklist

Because the breaker under consideration is a 1P product, current calculation alone is not enough.

The important principle is:

Pole selection is determined by system architecture, not simply by system voltage.

Is a Fuse Still Needed If an MCCB Is Installed?

Possibly.

A battery protection system can use different architectures, including:

• Main MCCB
• Main fuse plus switch-disconnector
• Individual battery branch fuses
• Branch fuses plus main MCCB
• BMS-controlled contactor plus independent overcurrent protection

A fuse and an MCCB are not identical devices.

For a more detailed comparison of reset capability, interruption behavior, maintenance and typical applications, read our DC circuit breaker vs DC fuse guide.

They may differ in:

• Time-current characteristics
• Short-circuit interruption
• Current limitation
• Let-through energy
• Reset capability
• Maintenance requirements
• Coordination behaviour

For that reason, do not assume:

250A fuse = 250A MCCB

or:

400A fuse = 400A MCCB

A manufacturer-specified fuse rating should only be replaced by another protective device after the protection coordination has been reviewed.

Documents Buyers Should Request Before Ordering

For a serious ESS project, the purchasing decision should not depend only on a product-page headline.

Ask for the documentation relevant to your installation.

Document availability should be confirmed before ordering.

Do not assume that every document is available simply because a parameter appears in an online listing.

Final 250A MCCB Compatibility Checklist

Before approving a 250A DC MCCB for 48V ESS, every item below should have a clear answer.

If one of the critical items is unknown, the correct result is:

Compatibility not yet confirmed.

Information to Send for Model Confirmation

To reduce back-and-forth communication with the breaker supplier, send the following information with your enquiry:

Battery Information

• Battery chemistry
• Battery manufacturer and model
• Nominal battery voltage
• Minimum operating voltage
• Maximum charging voltage
• Number of batteries in series
• Number of batteries in parallel
• Maximum continuous charge current
• Maximum continuous discharge current
• Peak current and duration

Inverter / PCS Information

• Manufacturer
• Exact model
• Continuous real output in watts
• Maximum overload
• Efficiency
• Manufacturer-recommended fuse or breaker

Cable and Busbar Information

• Cable cross-section
• Number of parallel conductors
• Cable length
• Installation method
• Busbar continuous-current rating

Protection System Information

• Grounding arrangement
• Required poles
• Isolation requirement
• Current direction
• Prospective short-circuit current
• Ambient cabinet temperature

Commercial Information

• Quantity
• Destination country
• Required certification
• OEM brand requirement
• Packaging requirement

For a project form, a stronger CTA than a generic “Submit” button is:

Check 250A MCCB Compatibility

FAQ

Is a 250A DC MCCB suitable for every 10kW 48V inverter?

No.

Using a 95% assumed efficiency:

At 48V:

10,000 ÷ (48 × 0.95) ≈ 219.3A

At 44.8V:

10,000 ÷ (44.8 × 0.95) ≈ 235.0A

At 42V:

10,000 ÷ (42 × 0.95) ≈ 250.6A

The result changes significantly with battery voltage.

Final selection also depends on the actual inverter continuous power, manufacturer requirements, cable size, trip characteristics, battery limits, and fault current.

Is 235A low enough for a 250A breaker?

It is numerically below 250A, but the margin is small.

A detailed review is required for:

• Continuous operating time
• Breaker thermal trip behaviour
• Cabinet temperature
• Cable ampacity
• Battery capability
• Temporary overload

Do not approve the breaker based only on the difference between 235A and 250A.

Can a 250A MCCB replace a 250A fuse?

Not automatically.

The two devices can have different:

• Time-current curves
• Short-circuit performance
• Let-through energy
• Current limitation
• Protection coordination

Use the equipment manufacturer’s specified protective device unless an alternative has been properly verified.

Can a 1P 250A MCCB be used in every 48V battery system?

No.

A 1P device may be suitable in an approved single-conductor protection architecture.

It may not be appropriate where:

• Both conductors require isolation
• The system is floating
• The inverter manufacturer requires 2P
• Local rules require all-pole disconnection

Does a 48V ESS breaker need bidirectional capability?

If charging and discharging use the same circuit, normal current can flow in both directions.

The breaker must therefore be checked for:

• Polarity
• LINE/LOAD requirements
• Approved current direction
• Fault interruption direction

Do not infer bidirectional capability from the rated current and voltage alone.

Does a 25kA Icu mean the breaker can interrupt any 48V battery fault below 25kA?

Not automatically.

The published breaking capacity must be verified for the actual:

• DC voltage
• Pole configuration
• Wiring arrangement
• Product version
• Test conditions

Prospective fault current at the installation point must also be established.

Can breaker size be selected from battery Ah?

No.

Battery ampere-hour capacity describes stored charge.

It does not directly define:

• Maximum continuous current
• Short-circuit current
• Cable capacity
• Correct breaker rating
• Required breaking capacity

Use the battery manufacturer’s current limits and complete electrical design.

Is a larger breaker always safer?

No.

An oversized breaker can fail to adequately protect:

• Battery cable
• Battery branch
• Connector
• Terminal
• Busbar

The protective device must be coordinated with the protected circuit.

Final Decision

A 250A DC MCCB for 48V ESS may be a valid candidate for some battery energy storage systems, but it should never be selected from “48V + 250A” alone.

A proper compatibility decision verifies:

• Maximum and minimum battery voltage
• Continuous current
• Charge current
• Discharge current
• Peak current
• Cable capacity
• Busbar capacity
• Prospective short-circuit current
• Breaker DC breaking capacity
• Trip characteristics
• Pole configuration
• Grounding
• Isolation requirements
• Current direction
• Temperature derating
• Battery manufacturer instructions
• Inverter manufacturer instructions

The current calculation is a useful first filter.

It is not the final engineering answer.

If your continuous-current estimate approaches the breaker’s 250A rating, or if fault current, trip data, grounding, cable capacity, or current direction is unknown, the correct next step is to verify the complete system rather than assume compatibility.

Review the KUANGYA DC MCCB range for available configurations and technical parameters, then check the MCCB-250DC product specifications and provide your actual ESS project data before requesting final model confirmation and quotation.
