Surge protective device type 2 KYSPD-40T2-2P | Kuangya
Type 2 surge protective device for 230 V AC single-phase systems with L+N protection (2P).
Rated discharge current In 20 kA (8/20 µs), maximum discharge Imax 40 kA (8/20 µs); voltage protection level Up ≤ 1.3–2.0 kV depending on Uc.
Pluggable design, thermal disconnector with fault indicator, optional RC remote contacts, DIN-rail mounting.
designed for single-phase AC systems at 230 V. It provides coordinated protection
for L and N conductors against transient overvoltages from switching operations
and indirect lightning strikes.Built with high-energy MOV technology, this SPD delivers reliable protection in
residential, commercial, and light industrial applications. It features pluggable
modules for easy maintenance, a thermal disconnector with green/red fault indicator,
and optional remote contacts for monitoring integration with BMS or PLC systems.
Key Features
- Class II / Type 2 surge protective device (2P, L+N).
- Nominal discharge current (In): 20 kA (8/20 μs).
- Maximum discharge current (Imax): 40 kA (8/20 μs).
- Voltage protection level (Up): ≤ 1.3–2.0 kV depending on variant.
- Response time < 25 ns for fast transient suppression.
- Max back-up fuse: 125 A gL/gG; ISCCR 25 kA AC.
- Pluggable, serviceable cartridges with visible fault indicator (green/red).
- Optional RC signaling contacts: AC 250 V / 0.5 A; DC 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A.
- Thermoplastic UL94-V0 housing, IP20; operating temperature -40 °C to +80 °C.
- DIN rail mounting (35 mm, EN 60715); complies with IEC/EN 61643-11.
Specifications
| Product Code | KYSPD-40T2-2P |
|---|---|
| Category | Surge protective device type 2 |
| Nominal System Voltage | 230 V AC |
| Poles | 2P (L+N) |
| Continuous Operating Voltage (Uc) | 230 V / 320 V / 385 V |
| Nominal Discharge Current (In, 8/20 μs) | 20 kA |
| Maximum Discharge Current (Imax, 8/20 μs) | 40 kA |
| Voltage Protection Level (Up) | ≤ 1.3–2.0 kV |
| Response Time | < 25 ns |
| Back-Up Fuse (max) | 125 A gL/gG |
| Short-Circuit Current Rating (ISCCR) | 25 kA AC |
| Operating Temperature | -40 °C to +80 °C |
| Mounting | 35 mm DIN rail, EN 60715 |
| Enclosure / Protection | Thermoplastic UL94 V-0 / IP20 |
| Remote Signaling (RC) | Optional; AC 250 V / 0.5 A; DC 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Standards | IEC/EN 61643-11 |
Wiring & Dimensions

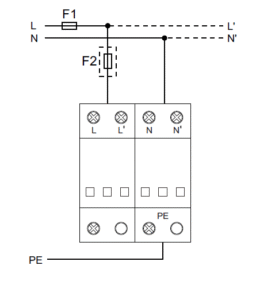

Connection diagram surge protective device type 2 KYSPD-40T2-2P

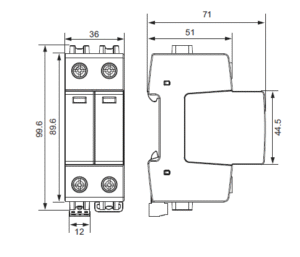

Dimensions surge protective device type 2 KYSPD-40T2-2P
Applications
- Single-phase 230 V AC distribution panels in residential and commercial sites.
- Coordination with upstream Type 1 arresters in TT/TN networks.
- Panels requiring reliable 2P surge protection with optional RC monitoring.
FAQ
- What class of SPD is KYSPD-40T2-2P? It is Class II, Type 2 according to IEC/EN 61643-11.
- What is its discharge capacity? In 20 kA, Imax 40 kA.
- Can it be used in single-phase systems? Yes, it is designed for 230 V AC L+N applications.
- Does it support remote signaling? Yes, optional RC contacts are available.
- What is the maximum backup fuse rating? 125 A gL/gG.
