Surge Protection Device for Elevators KYSPD-7T1+2-3P+1 | Kuangya
Four-pole (3+1) surge protection device for elevators, protecting both phase and neutral conductors.
Iimp 7 kA (10/350 μs) per pole, In 20 kA, Imax 40 kA.
Pluggable design with LED status indicator, thermal disconnector, and optional RC remote signaling.
Key Features
- Complies with IEC/EN 61643-11, offering both Class I and Class II protection.
- 3+1 configuration: three-phase plus dedicated neutral-to-earth protection.
- Iimp 7 kA (10/350 μs) per pole; In 20 kA; Imax 40 kA.
- Uc: 275 V AC; nominal system voltage: 230/400 V AC.
- Voltage protection level (Up): ≤ 1.5 kV.
- Fast response time < 25 ns.

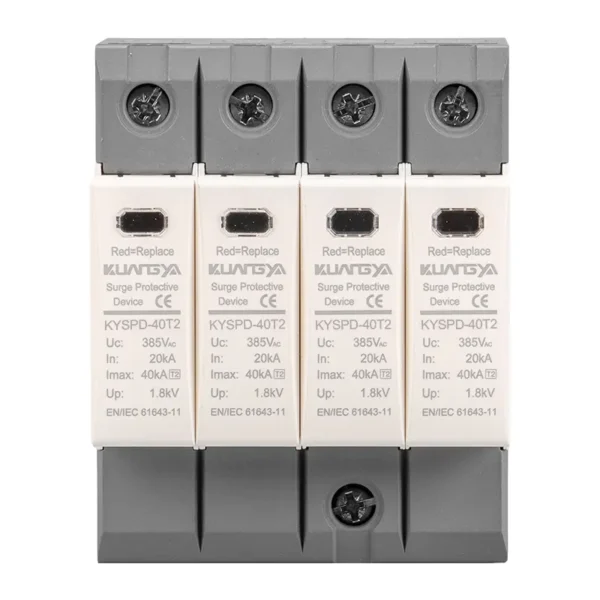

- Compact pluggable cartridge with thermal disconnector and visual status window.
- Optional RC contacts for remote status monitoring in elevator control rooms.
- Housing: UL94 V-0 thermoplastic; IP20 built-in; DIN 35 mm rail mount.
- Reliable surge protection device for elevators in residential, commercial, and high-rise buildings.
Specifications
| Parameter | Value |
|---|---|
| Product Code | KYSPD-7T1+2-3+1 |
| Category | Surge Protection Device for Elevators |
| Nominal System Voltage | 230/400 V AC |
| Max. Continuous Operating Voltage (Uc) | 275 V AC |
| Impulse Discharge Current (Iimp, 10/350 μs) | 7 kA per pole |
| Nominal Discharge Current (In, 8/20 μs) | 20 kA |
| Max. Discharge Current (Imax, 8/20 μs) | 40 kA |
| Voltage Protection Level (Up) | ≤ 1.5 kV |
| Response Time | < 25 ns |
| Backup Fuse (max) | 125 A gL/gG |
| Short-Circuit Current Rating (ISCCR) | 25 kA |
| Operating Temperature | -40 °C … +70 °C |
| Mounting | 35 mm DIN rail (EN 60715) |
| Housing | Thermoplastic UL94 V-0 |
| Protection Degree | IP20 (built-in) |
| Remote Signaling | Optional RC contacts |
| Standards | IEC/EN 61643-11 |
This surge protection device for elevators ensures safe and continuous operation of elevator drives, controllers, and communication circuits by eliminating transient overvoltages.
Wiring & Dimensions
- Connection diagram: kyspd-7t1+2-3+1-connection
- Dimensions: kyspd-7t1+2-3+1-dimensions
Applications
- Main distribution boards feeding elevator systems.
- Dedicated surge protection device for elevators in residential towers and commercial buildings.
- Ensures uninterrupted lift operation in high-rise and industrial facilities.
FAQ
Why do elevators need surge protection?
Elevators include sensitive controllers and drives that are vulnerable to overvoltages. A surge protection device for elevators prevents damage and downtime.
Where should KYSPD-7T1+2-3+1 be installed?
It should be installed in the distribution board that powers the elevator system.
Does it protect both phase and neutral conductors?
Yes, the 3+1 design makes this surge protection device for elevators effective for both phase-to-neutral and neutral-to-earth protection.
Can it be monitored remotely?
Yes, optional RC contacts allow integration into building management systems for elevator monitoring.
What standards does it meet?
IEC/EN 61643-11 for surge protective devices.
