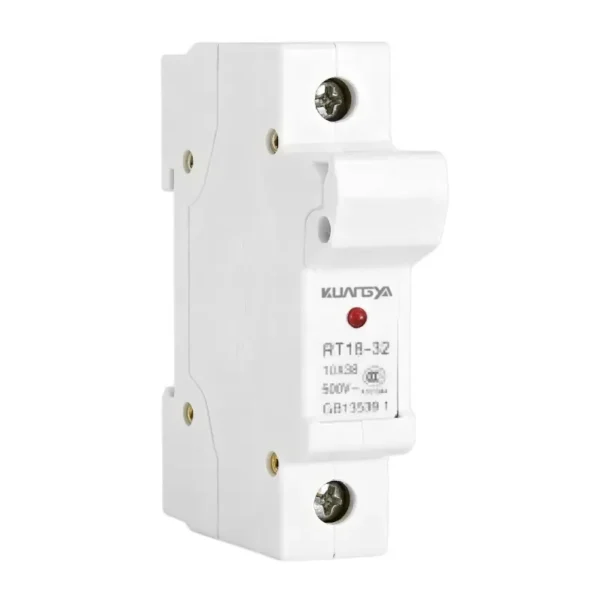

RT18-32 Fuse Holder — 32A Panel Mount / DIN Rail 690V
Compact panel mount fuse holder for RT18-32 links, up to 32A / AC690V
High breaking capacity 100kA, suitable for industrial applications
DIN rail TH35 and panel mounting design, 82×78×18 mm
Overview
The RT18-32 fuse holder is designed for safe installation of RT18-32 fuse links
in low-voltage distribution and control circuits. Rated up to 32A and AC500/690V, this
panel mount fuse holder combines compact design with reliable electrical performance.
It is suitable for both TH35 DIN rail and panel mounting.
Key Features
- Panel mount fuse holder for RT18-32 links (Ø10×38 mm).
- Rated current: 32A; voltage: AC500/690 V.
- High breaking capacity: 100 kA.
- Supports DIN rail TH35 or direct panel mounting.
- Complies with IEC 60269 standards.
Specifications
| Rated current | 32 A |
|---|---|
| Rated voltage | AC500/690 V |
| Breaking capacity | 100 kA |
| Mounting | Panel mount / TH35 DIN rail |
| Dimensions | 82 × 78 × 18 mm |
| Packing | 3 / 90 |
| Compatible fuse link | RT18-32 (Ø10×38 mm) |
Dimensions & Drawings
Applications
- Industrial control cabinets
- Low-voltage distribution panels
- PV combiner sub-circuits
- General electrical protection systems
See also: PV Combiner Box ·
DC Switch Disconnector ·
Contact Us
FAQ
What fuse links fit into the RT18-32 holder?
It supports RT18-32 fuse links in Ø10×38 mm size.
Can it be mounted on a DIN rail?
Yes, this panel mount fuse holder is also suitable for TH35 DIN rail mounting.
What is the maximum breaking capacity?
The rated breaking capacity is 100 kA at AC voltage.
