What Is an AFDD? How It Works, Requirements & Selection Guide

AFDD explained: An Arc Fault Detection Device monitors the electrical waveform for patterns associated with dangerous series or parallel arcing and disconnects the circuit when its detection criteria are met. It complements—not automatically replaces—MCB, RCD or RCBO protection.

AFDD requirements depend on the country, installation type and risk assessment. They are particularly relevant where an arc could create a high fire consequence, but describing an AFDD as mandatory for every circuit in every building is inaccurate.

What Is an AFDD?

An Arc Fault Detection Device (AFDD) detects characteristic current patterns produced by certain arc faults. In North America, related devices are commonly called AFCIs, but AFDD and AFCI requirements, test standards and product configurations are not always identical.

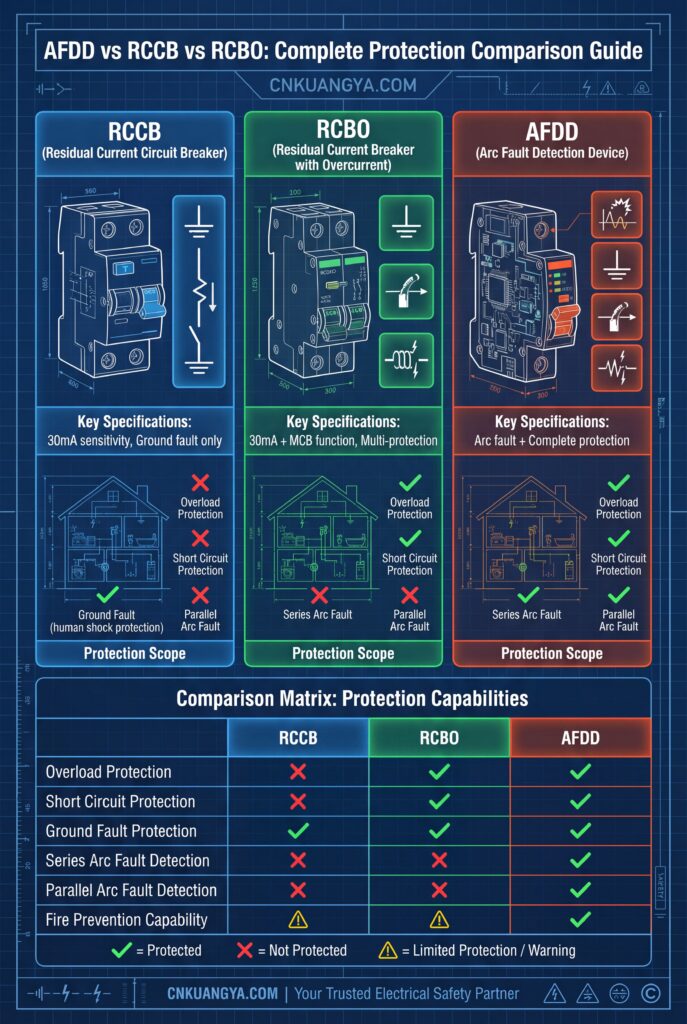

Device	Main function	Does it replace the others?
MCB	Overload and short-circuit protection	No arc-fault or residual-current protection
RCD/RCCB	Residual-current protection	No overload protection in an RCCB; no dedicated arc-pattern detection
RCBO	Residual-current plus overcurrent protection	Normally no dedicated AFDD function
AFDD	Arc-fault pattern detection	Check whether the product is standalone or combined with MCB/RCBO functions

Think of it this way: If a standard circuit breaker is like a pressure relief valve that opens when flow exceeds capacity, an AFDD is like a sophisticated monitoring system that listens for the “electrical signature” of arcing—the irregular, high-frequency bursts that indicate damaged or deteriorating wiring.

The Arc Fault Problem: Why Traditional Protection Falls Short

Arc faults occur when electrical current jumps across a gap in a conductor or flows through an unintended path. Common causes include:

• Damaged cable insulation from rodents, nails, or deterioration
• Loose connections at terminals or junction boxes
• Worn appliance cords with internal wire breaks
• Improper wiring installations with inadequate connections
• Age-related degradation of electrical components

The dangerous characteristic of arc faults? They can draw less current than the overcurrent device’s trip threshold, allowing local heating and carbonisation to develop without an MCB necessarily operating. The actual current and temperature depend on the fault and circuit conditions.

Pro-Tip: Arc faults are particularly dangerous because they can be intermittent. The arcing might occur only when a cable flexes or a connection vibrates, making them nearly impossible to detect during standard electrical inspections.

How Does an AFDD Work? The Technology Behind Arc Detection

Understanding AFDD operation requires looking at the electrical “fingerprint” of different fault conditions.

1. Monitor: the device continuously observes current waveform characteristics.
2. Analyse: internal electronics compare the signal with detection criteria for hazardous arcing.
3. Discriminate: the algorithm distinguishes likely arc faults from normal switching, motor and electronic-load signatures.
4. Disconnect: when the required criteria are satisfied, the AFDD opens the circuit and the cause must be investigated.

The Four-Stage Detection Process

Stage 1: Continuous Waveform Monitoring

AFDDs analyse current-waveform characteristics using product-specific electronics and algorithms. Sampling rates and detection methods vary by manufacturer and should not be assumed from a generic description.

Stage 2: Arc Signature Identification

Unlike steady-state currents, arc faults produce distinctive high-frequency noise patterns (typically 1-100 kHz). The AFDD’s algorithm distinguishes these from:

• Normal motor startup transients
• Dimmer switch operation
• Power tool commutator noise
• Other benign electrical events

Stage 3: Intelligent Discrimination

This is where modern AFDDs excel. They must avoid nuisance tripping while maintaining sensitivity. Advanced devices use:

• Pattern recognition algorithms trained on thousands of real-world arc fault signatures
• Time-domain analysis to distinguish sustained arcing from momentary events
• Current magnitude correlation to filter out harmless phenomena

Stage 4: Rapid Circuit Interruption

When the product’s detection and time criteria are satisfied, the AFDD activates its trip mechanism. Actual operating behaviour must be verified against the applicable product standard and manufacturer data.

Key Takeaway: An AFDD doesn’t replace your circuit breaker—it complements it. While the breaker handles overloads and short circuits, the AFDD specifically targets the arc fault hazard that breakers can’t detect.

AFDD vs Circuit Breaker: Understanding the Critical Differences

Many engineers and facility managers ask: “If I already have circuit breakers, why do I need AFDDs?” The answer lies in understanding what each device is designed to protect against.

Comprehensive Protection Comparison

Protection Feature	Standard MCB/RCBO	AFDD / Combined AFDD
Overload Protection	✅ Yes (thermal)	Only when integrated in the selected product
Short Circuit Protection	✅ Yes (magnetic)	Only when integrated in the selected product
Ground Fault Protection	✅ Yes (if RCBO)	Only when integrated in the selected product
Series Arc Fault Detection	❌ No	✅ Yes
Parallel Arc Fault Detection	❌ No	✅ Yes
Ground Arc Fault Detection	⚠️ Limited	✅ Yes (enhanced)
Response to Low-Current Arcing	❌ No response	Operates according to applicable product criteria
Detection Method	Current magnitude	Waveform analysis
Typical Trip Current	1.13-1.45× rated	Waveform-based criteria; see product standard
Fire Prevention Capability	Limited	Comprehensive

Real-World Scenario Comparison

Scenario 1: Damaged Cable Behind Wall

A cable has been compromised by a screw penetration, creating intermittent arcing at 8 amperes on a 16A circuit:

• Standard MCB Response: No action. Current is below trip threshold. Arc continues, gradually heating surrounding wood framing until ignition.
• AFDD Response: Detects arc signature within 150ms, trips circuit immediately. Fault is identified and repaired before fire can develop.

Scenario 2: Worn Appliance Cord

A vacuum cleaner cord has internal conductor breaks from repeated flexing, creating series arcing:

• Standard MCB Response: No detection. Appliance continues to work intermittently while arcing intensifies.
• AFDD Response: Identifies series arc pattern, disconnects circuit, preventing potential fire in appliance housing.

Pro-Tip: The most dangerous electrical faults are those that draw just enough current to sustain combustion but not enough to trip a standard breaker. This “danger zone” (typically 5-15A) is precisely where AFDDs provide their greatest value.

AFDD Protection Benefits: Beyond Basic Fire Prevention

1. Comprehensive Electrical Fire Protection

The primary benefit is obvious but worth quantifying: AFDDs can address certain arc-fault fire risks that conventional overcurrent protection may not detect that standard protection cannot detect. This translates to:

• Lives saved: Early detection prevents injuries and fatalities
• Property protection: Millions in potential fire damage prevented
• Business continuity: Avoiding catastrophic equipment and inventory loss

2. Early Warning System for Electrical Deterioration

An AFDD acts as an early diagnostic tool. When it trips due to arc detection, it’s telling you:

• “There’s a connection problem developing”
• “Cable insulation is compromised”
• “Equipment is failing and needs attention”

This predictive capability allows maintenance teams to address issues before they become emergencies.

Key Takeaway: Every AFDD trip is valuable information. Rather than simply resetting, always investigate the cause. You’re catching problems early.

3. Insurance and Liability Benefits

Forward-thinking insurance companies recognize AFDD value:

• Potential insurance recognition, depending entirely on the insurer and policy
• Liability protection for property managers and electrical contractors
• Documented risk assessment and device selection for safety audits and inspections

4. Regulatory Requirements Vary by Market

AFDD rules must be checked against the current national wiring regulations and the installation category. Avoid assuming that one international document makes AFDDs mandatory on every circuit.

• IEC 60364-4-42: provides installation-level measures addressing thermal effects; national adoption and requirements vary.
• BS 7671: Regulation 421.1.7 requires AFDDs for specified single-phase AC final circuits in particular higher-risk premises and recommends them for certain other situations. It does not mean every existing UK residential circuit automatically requires an AFDD.
• Germany: apply the current DIN VDE installation requirements and project-specific risk assessment.
• United States: AFCI requirements under NEC Article 210.12 are jurisdiction- and circuit-specific; AFCI terminology and certification should not be treated as automatically identical to European AFDD products.

Use a product tested to the applicable standard, commonly IEC/EN 62606 for AFDDs in IEC markets, and confirm local approvals with the authority, designer and manufacturer.

5. Protection for Modern High-Risk Loads

Today’s electrical loads create unique challenges:

• LED drivers and power supplies with switch-mode electronics
• Solar PV systems with DC arc fault risks
• EV charging installations with high-power, long-duration loads
• Smart home devices with complex electrical signatures

AFDDs provide protection specifically designed for these modern applications.

AFDD Installation Requirements: The 4-Step Implementation Framework

Installing AFDDs effectively requires more than simply replacing circuit breakers. Follow this systematic approach:

Step 1: Risk Assessment and Circuit Prioritization

Not all circuits require equal protection urgency. Prioritize based on:

High Priority (Install First):

• Bedroom and sleeping area circuits
• Circuits serving older wiring (>20 years)
• Circuits with history of nuisance trips or problems
• Areas with concealed wiring in combustible materials
• Circuits feeding portable appliances via extension cords

Medium Priority:

• Living area and common space circuits
• Kitchen small appliance circuits
• Home office and entertainment circuits

Lower Priority (but still recommended):

• Dedicated appliance circuits (HVAC, water heater)
• Outdoor and garage circuits
• Lighting-only circuits

Step 2: Technical Specification Selection

Choose AFDDs based on these critical parameters:

Parameter	Consideration	Typical Values
Rated Current (In)	Must match or exceed circuit load	6A, 10A, 16A, 20A, 32A
Breaking Capacity (Icu)	Must exceed prospective fault current	6kA, 10kA (typical)
Voltage Rating	Match system voltage	230V AC / 400V AC
Number of Poles	1P+N (most common), 2P, 3P+N	Depends on system
Curve Type	B, C, or D (match load characteristics)	C-curve (typical)
Standards Compliance	IEC 62606, UL 1699, BS EN 62606	Region-specific

Pro-Tip: Always verify that your selected AFDD is certified for the specific loads in your installation. Some devices have restrictions on certain appliance types or motor loads.

Step 3: Installation Best Practices

Critical Installation Points:

1. Torque Specifications: Use calibrated screwdrivers. Terminal torque typically 2.5-3.5 Nm. Over-tightening damages terminals; under-tightening creates resistance and heat.
2. Neutral Connection: AFDDs require proper neutral connection for arc detection. Never share neutrals between AFDD-protected circuits.
3. Upstream/Downstream Coordination: Verify selectivity with upstream protection devices. Time-current curves must coordinate to prevent nuisance tripping.
4. Environmental Conditions: Most AFDDs are rated for 40°C ambient. In hot enclosures, derate or provide ventilation.

Step 4: Commissioning and Testing

Don’t skip this critical verification phase:

Immediate Tests:

1. Function Test: Press test button. Device should trip immediately and reset.
2. Load Test: Apply normal circuit load. AFDD should remain stable.
3. Neutral Integrity: Verify neutral continuity through device.

Advanced Testing (with appropriate equipment):\

4. Arc Fault Simulation: Use certified arc fault generator to verify trip at 5A parallel arc.\
5. Immunity Testing: Verify no nuisance trips with power tools, dimmers, and motors.\
6. Response Time: Confirm trip time <0.3 seconds using test equipment.

Key Takeaway: A properly installed AFDD should be virtually “invisible” during normal operation. If you experience frequent trips, don’t disable the device—investigate the underlying electrical problem it’s detecting.

Real-World Applications: Where AFDDs Deliver Maximum Value

Residential Applications

New Construction: Modern building codes increasingly require AFDD protection for:

• All bedroom circuits (sleeping areas)
• Family room and living area circuits
• Any circuit with outlets serving cord-and-plug connected loads

Renovation and Retrofit:

• Upgrading older homes (pre-1980) with deteriorating wiring
• Adding protection when installing new loads (EV chargers, home offices)
• Addressing insurance requirements for high-value homes

Case Study: A residential retrofit project in Manchester installed AFDDs on all bedroom and living area circuits (12 circuits total). Within six months, three separate arc fault conditions were detected:

1. Damaged cable from picture hanging nail
2. Loose connection in aging receptacle
3. Failing power cord on space heater

Result: Three potential fires prevented. Total investment in AFDDs: £480. Estimated value of property and life safety protection: Incalculable.

Commercial and Industrial Applications

Office Buildings:

• Open office environments with flexible furniture and frequent reconfigurations
• Server rooms and IT equipment areas
• Conference rooms with high-power presentation equipment

Hospitality:

• Hotel guest rooms (especially older properties)
• Restaurant kitchen circuits
• Back-of-house areas with aging infrastructure

Healthcare:

• Patient sleeping areas
• Equipment storage rooms
• Administrative areas

Educational Facilities:

• Dormitory rooms
• Classrooms with portable equipment
• Laboratory spaces

Specialized Applications

Solar PV Systems:\
AFDDs designed for DC applications protect against the unique risks of DC arc faults, which can be even more dangerous than AC arcs due to sustained energy.

EV Charging Installations:\
High-power, long-duration loads create extended exposure to potential arc faults. AFDD protection is increasingly recommended for EV charging circuits.

Historic Buildings:\
Older properties often have wiring installed decades ago, making them prime candidates for arc fault issues. AFDDs provide modern protection without requiring complete rewiring.

Troubleshooting and Maintenance: Keeping Your AFDD Protection Effective

Common Issues and Solutions

Issue 1: Nuisance Tripping

Symptoms: AFDD trips repeatedly with no apparent fault

Causes & Solutions:

Cause	Solution
Incompatible load (e.g., older power tool with brush motors)	Replace with AFDD-compatible equipment or use dedicated circuit without AFDD
Multiple inductive loads on one circuit	Redistribute loads across multiple circuits
Neutral shared between circuits	Correct wiring—each AFDD needs dedicated neutral
AFDD sensitivity too high for application	Verify correct model for load type; consider different manufacturer

Issue 2: AFDD Won’t Reset

Symptoms: After trip, reset button won’t latch

Troubleshooting Steps:

1. Verify power is present at line side
2. Disconnect all loads and attempt reset
3. If resets with loads disconnected, reconnect loads one by one to identify problem
4. Check for sustained fault condition (damaged cable or equipment)
5. Verify neutral connection integrity

Issue 3: Test Button Doesn’t Trip Device

Symptoms: Pressing test button produces no response

Action Required: This indicates AFDD failure. Device must be replaced immediately as it cannot be verified functional.

Pro-Tip: Schedule annual testing of all AFDDs using the test button. Document test dates. This simple procedure verifies the device remains functional and satisfies insurance and safety audit requirements.

Maintenance Schedule

Monthly:

• Visual inspection for damage, overheating, or discoloration
• Verify no unusual buzzing or humming sounds

Quarterly:

• Function test using test button
• Verify proper operation under normal loads

Annually:

• Comprehensive testing with arc fault generator (if available)
• Connection inspection and torque verification
• Coordination review with other protective devices

Every 5 Years:

• Professional assessment of continued suitability
• Consider technology upgrades (AFDD technology improves continuously)

Frequently Asked Questions About AFDDs

1. What is an AFDD and how is it different from a regular circuit breaker?

An Arc Fault Detection Device (AFDD) is an advanced protective device that detects dangerous electrical arcing and disconnects the circuit before fires can start. Unlike standard circuit breakers that only respond to overcurrent (too much amperage), AFDDs analyze the electrical waveform to identify the high-frequency “signature” of arcing—which can occur at current levels too low to trip a regular breaker. Think of it this way: a circuit breaker is like a flow meter that shuts off when volume exceeds capacity; an AFDD is like a quality analyzer that detects contamination even at normal flow rates.

2. Do I really need an AFDD if I already have RCBO protection?

Yes. While RCBOs (Residual Current Circuit Breakers with Overcurrent protection) provide excellent protection against ground faults, overloads, and short circuits, they offer limited protection against series and parallel arc faults. An arc fault can occur entirely within the circuit’s normal current path, meaning no ground fault current flows to trigger the RCBO. AFDDs detect these dangerous arcs by analyzing waveform characteristics, not just current magnitude or ground leakage. For comprehensive protection, modern installations should include both technologies—either as separate devices or as combination AFDD+RCBO units now available from major manufacturers.

3. Will an AFDD protect against all electrical fires?

AFDDs significantly reduce electrical fire risk but cannot prevent all fires. They excel at detecting and interrupting arc faults—one possible cause of electrical fires. However, they don’t prevent fires caused by:

• Excessive heat from proper operation of high-wattage equipment placed near flammable materials
• External heat sources igniting wiring insulation
• Lightning strikes (though surge protection can help)
• Intentional misuse or tampering

Key Takeaway: AFDDs are a critical layer in a comprehensive electrical safety strategy that should also include proper circuit design, quality installation, appropriate overcurrent protection, ground fault protection, and regular maintenance.

4. How much do AFDDs cost and are they worth the investment?

AFDD pricing varies by manufacturer, rating, and features:

• Basic AFDD (no overload protection): £45-80 per device
• AFDD with integrated MCB: £65-120 per device
• AFDD+RCBO combination: £85-150 per device

For a typical home requiring 8-12 protected circuits, total investment ranges from £520-1,800. This might seem significant, but consider:

• Fire damage costs: Average electrical fire causes £47,000 in property damage
• Insurance benefits: Premium reductions can offset costs over 3-5 years
• Property value: Modern protection increases home value and marketability
• Peace of mind: Priceless protection for your family

Pro-Tip: If budget is limited, prioritize bedroom circuits first (where fires during sleeping hours pose greatest risk), then expand protection to other circuits over time.

5. Can I install AFDDs myself or do I need a qualified electrician?

In most jurisdictions, AFDD installation must be performed by a qualified, licensed electrician. This isn’t just a legal requirement—it’s essential for safety and effectiveness:

• Proper device selection requires understanding load types, coordination, and standards
• Correct wiring especially neutral connections, is critical for AFDD function
• Testing and verification require knowledge and often specialized equipment
• Certification and documentation are required for insurance and building compliance

Attempting DIY installation risks:

• Improper operation (nuisance trips or failure to detect faults)
• Fire hazard from incorrect connections
• Code violations and insurance coverage issues
• Voided product warranties

Key Takeaway: AFDD protection is too important to risk with improper installation. Always use qualified professionals.

6. How do I know if my AFDD is working properly?

AFDDs include a test button that simulates an arc fault condition. Monthly testing procedure:

1. Press and hold test button (usually marked with “T” or “TEST”)
2. Device should trip immediately (within 1 second)
3. Reset the AFDD by switching to OFF then ON position
4. Normal operation should resume

If the test button doesn’t trip the device, or if it won’t reset after testing, the AFDD has failed and must be replaced immediately.

Warning signs of AFDD problems:

• Frequent unexplained trips (investigate—may indicate real electrical problems)
• Buzzing or humming sounds
• Visible discoloration or heat damage
• Test button failure
• Inability to reset after trip

Pro-Tip: Document your test dates. Most electrical codes and insurance policies require periodic testing—having records proves compliance.

7. Are AFDDs required by electrical codes?

Requirements vary by region and continue to evolve:

United Kingdom: BS 7671 (18th Edition) Amendment 2 requires AFDDs for:

• Single-phase AC circuits supplying socket outlets ≤32A in certain locations
• Higher-risk premises (HMOs, student accommodation, care homes)
• Implementation became mandatory from March 2023 for new installations

European Union: IEC 60364-4-42 recommends AFDDs for residential premises, particularly for:

• Sleeping areas
• Locations with combustible building materials
• Fire-risk environments

United States: NEC Article 210.12 has required AFCI protection for dwelling unit circuits since 1999, with expanding requirements in each code cycle.

International: Many countries are adopting or considering AFDD requirements based on IEC standards.

Pro-Tip: Even if not yet required in your area, insurance companies increasingly recognize AFDD value. Installing AFDDs proactively demonstrates due diligence and may qualify for premium reductions.

Conclusion: AFDDs as Essential Modern Protection

The question is no longer “Do I need an AFDD?” but rather “How quickly can I implement this critical protection?”

Arc faults can create a fire risk that conventional overcurrent protection may not detect. AFDDs can add useful protection where required by local rules or justified by the installation risk assessment, but they must be selected and coordinated as part of the complete protection system.

Final Key Takeaways:

✅ AFDDs detect and prevent electrical fires that standard breakers miss\
✅ They complement, not replace, existing overcurrent and ground fault protection\
✅ Installation should prioritize high-risk circuits (bedrooms, older wiring, high-use areas)\
✅ Regular testing using the test button ensures continued protection\
✅ Regulatory trends globally are moving toward mandatory AFDD requirements

Whether you’re designing a new installation, upgrading an existing facility, or simply reassessing your electrical safety strategy, incorporating AFDD protection represents a sound investment in safety, compliance, and peace of mind.

The technology exists. The standards are clear. The benefits are proven. The only question remaining: When will you make the switch to comprehensive arc fault protection?

---

For more information on AFDDs, circuit protection, and electrical safety solutions, visit CNKUANGYA.COM or contact our technical support team. Our application engineers are ready to help you design the optimal protection strategy for your specific installation.
