Why Proper SPD Selection Matters

Modern solar PV systems contain sensitive electronic equipment that can be damaged by transient overvoltages.

While solar panels themselves are relatively robust, components such as inverters, monitoring systems, communication devices, and battery storage equipment are highly vulnerable to surge events.

A single surge event may result in:

• Inverter failure
• Communication interruptions
• System downtime
• Reduced energy production
• Expensive maintenance costs

Many project owners focus on module efficiency and inverter brands but overlook surge protection during system design.

This can become a costly mistake.

The purpose of a DC SPD is not simply to satisfy electrical requirements. Its primary role is to improve system reliability and reduce the risk of equipment damage throughout the lifetime of the solar installation.

Why Solar PV Systems Are Vulnerable to Surges

Unlike many indoor electrical installations, solar systems are often installed in exposed locations.

Examples include:

• Residential rooftops
• Commercial buildings
• Industrial facilities
• Utility-scale solar farms

These locations increase the likelihood of surge exposure.

Even when lightning does not strike a solar array directly, nearby lightning activity can induce high transient voltages into DC cables and connected equipment.

In addition to lightning, switching operations within the electrical network may also generate transient overvoltages.

Without proper protection, these events can damage sensitive components and shorten equipment lifespan.

This is why surge protection has become a standard design requirement in modern photovoltaic systems.

The rapid growth of solar installations worldwide has increased the importance of electrical protection and system reliability. Research organizations continue to study best practices for improving photovoltaic system performance and resilience.

What Factors Should Be Considered When Selecting a DC SPD?

Choosing a DC SPD should never be based solely on price.

Instead, engineers and buyers should evaluate several technical parameters.

The most important factors include:

1. System Voltage
2. SPD Voltage Rating (Uc)
3. Nominal Discharge Current (In)
4. Maximum Discharge Current (Imax)
5. Voltage Protection Level (Up)
6. Installation Environment
7. Applicable Standards

Let’s examine each factor in detail.

Step 1: Determine the Maximum System Voltage

The first step in selecting a DC SPD is understanding the operating voltage of the photovoltaic system.

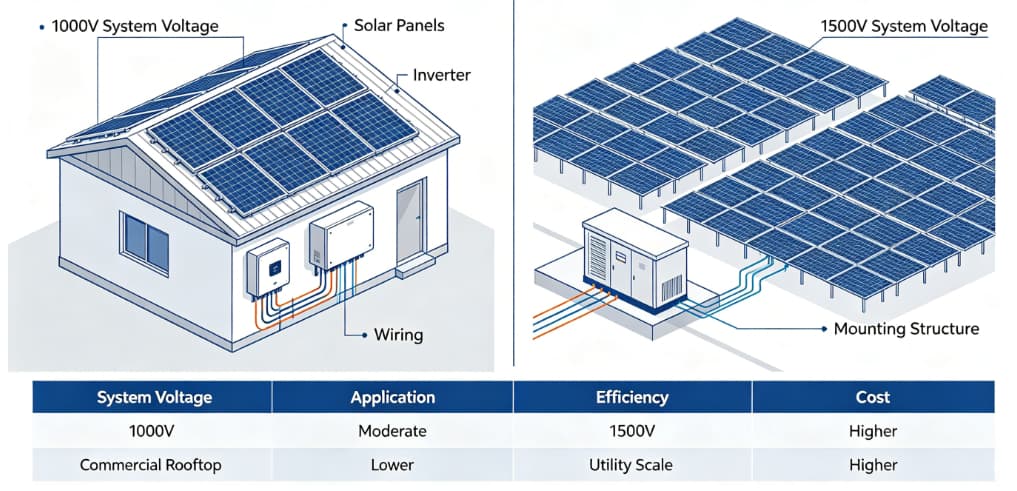

Typical solar installations operate at:

The selected SPD must be compatible with the maximum voltage that may occur within the PV system.

Many installers make the mistake of considering only nominal voltage values.

However, solar array voltage can increase under low-temperature conditions.

For this reason, the maximum open-circuit voltage of the PV array should always be considered during SPD selection.

Selecting an SPD with an insufficient voltage rating may result in premature failure and reduced protection performance.

Step 2: Select the Appropriate Uc Value

Uc refers to the Maximum Continuous Operating Voltage of the SPD.

This value indicates the highest voltage that the SPD can withstand continuously without entering protection mode.

A suitable Uc value is essential for long-term reliability.

If the Uc value is too low, the SPD may experience constant electrical stress and eventually fail.

When selecting Uc, consider:

• Maximum PV open-circuit voltage
• Environmental temperature conditions
• Future system expansion

A safety margin is generally recommended to ensure reliable operation.

Step 3: Evaluate Nominal Discharge Current (In)

The nominal discharge current, known as In, represents the surge current that an SPD can safely handle multiple times throughout its service life.

This parameter is particularly important in regions where thunderstorms occur frequently.

Higher In ratings generally provide:

• Better endurance
• Longer service life
• Improved protection against repeated surge events

When comparing different SPD models, In should always be considered together with other electrical characteristics.

It should not be used as the sole selection criterion.

Step 4: Consider Maximum Discharge Current (Imax)

Imax represents the maximum surge current that an SPD can safely withstand during a single surge event.

This value reflects the device’s ultimate surge-handling capability.

Projects located in high-risk lightning regions often require SPDs with higher Imax ratings.

Examples include:

• Solar farms in tropical regions
• Mountain installations
• Open-field PV plants
• Coastal solar projects

Selecting an inadequate Imax value may leave the system vulnerable during severe lightning events.

Step 5: Evaluate the Voltage Protection Level (Up)

Another important parameter when selecting a DC SPD is the Voltage Protection Level (Up).

Up indicates the maximum residual voltage that remains after the SPD diverts a surge.

In simple terms, the lower the Up value, the better the protection provided to connected equipment.

Sensitive components such as:

• Solar inverters
• Monitoring systems
• Communication devices
• Battery management systems

can all benefit from lower residual voltage levels.

However, Up should not be evaluated independently.

The best SPD selection always involves balancing:

• Uc
• In
• Imax
• Up

to match the actual requirements of the project.

Step 6: Consider the Installation Environment

The installation environment plays a significant role in SPD selection.

A residential rooftop system and a utility-scale solar farm face very different operating conditions.

When evaluating environmental factors, consider:

• Lightning density
• Geographic location
• Cable lengths
• Building structure
• Grounding quality
• System size

For example, a rooftop solar installation in a city may face lower lightning exposure than a large ground-mounted solar farm located in an open rural area.

Similarly, coastal projects may experience harsher environmental conditions that require higher-quality protection devices.

Understanding the installation environment helps ensure the selected SPD provides appropriate protection throughout its service life.

Do You Need Type 1 or Type 2 SPD?

This is one of the most frequently asked questions in photovoltaic projects.

The answer depends on the lightning protection strategy of the installation.

Generally speaking:

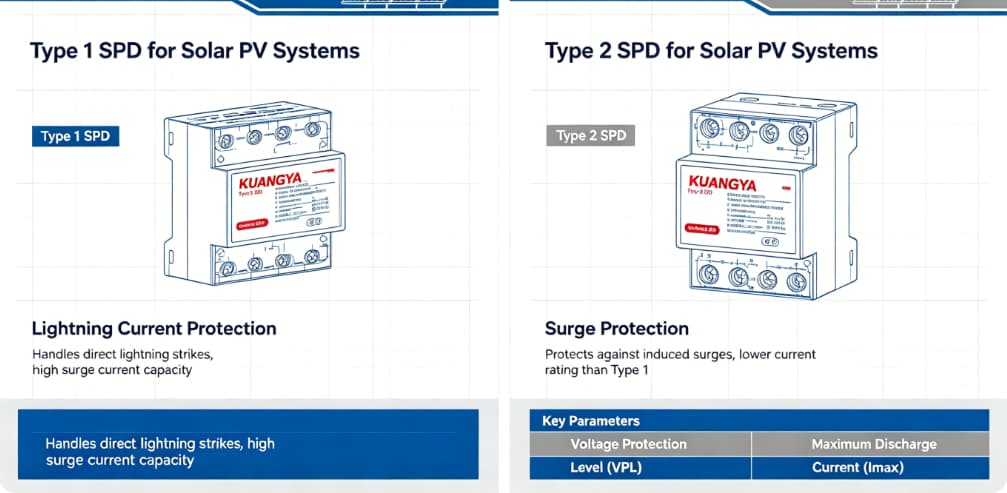

Type 1 SPD

Designed to handle high-energy lightning currents associated with direct lightning events.

Typically used in:

• Buildings equipped with lightning protection systems
• High-risk lightning areas
• Utility-scale projects

Type 2 SPD

Designed to protect against indirect lightning surges and switching transients.

Commonly used in:

• Residential solar systems
• Commercial rooftop projects
• Standard industrial PV installations

For many solar projects, Type 2 SPDs are the most common choice.

However, the final selection should always be based on the project’s specific requirements and local regulations.

For a detailed comparison, see our guide:

Type 1 vs Type 2 SPD for Solar Systems

Common SPD Selection Mistakes

Even experienced installers occasionally make mistakes when selecting surge protection devices.

Understanding these common errors can help avoid costly failures.

Choosing an SPD Based Only on Price

Price is important, but it should never be the primary selection criterion.

A low-cost SPD may appear attractive initially, but inadequate protection can lead to expensive equipment damage later.

When evaluating products, focus on:

• Technical specifications
• Standards compliance
• Manufacturer reputation
• Long-term reliability

rather than price alone.

Ignoring Future System Expansion

Many photovoltaic systems are expanded after installation.

Additional PV strings, larger inverters, or battery storage systems may increase operating voltage and system complexity.

Selecting an SPD with sufficient design margin can reduce future replacement costs.

Overlooking Environmental Conditions

Lightning activity varies significantly between regions.

An SPD suitable for one project may not be adequate for another.

Factors such as:

• Thunderstorm frequency
• Terrain
• Building height
• Cable routing

should always be considered during product selection.

Poor Coordination Between Protection Devices

A complete photovoltaic protection strategy often includes:

• Fuses
• Circuit breakers
• SPDs
• Grounding systems

These components should work together as a coordinated protection system.

Selecting an SPD without considering other protective devices can reduce overall system effectiveness.

Example: SPD Selection for a Commercial Solar Project

To better understand the selection process, consider the following example.

Project Overview

System Type:

Commercial Rooftop Solar Installation

System Voltage:

1000V DC

Location:

Industrial Facility

Lightning Exposure:

Moderate

Selection Process

The project engineer evaluated:

• Maximum system voltage
• Expected surge exposure
• Installation environment
• Local electrical requirements

After reviewing these factors, a photovoltaic DC SPD specifically designed for 1000V systems was selected.

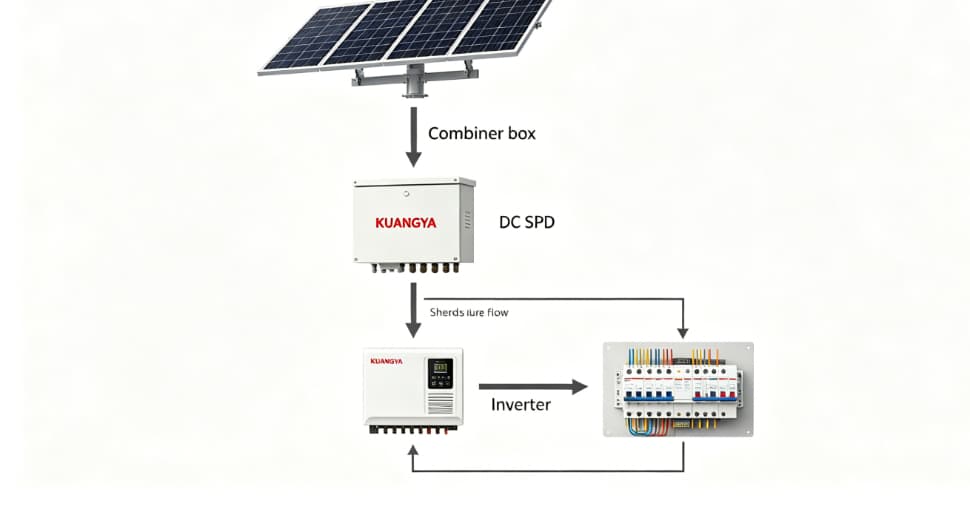

The protection solution was installed within the DC combiner box and coordinated with the project’s fuse protection devices.

Result

The system achieved:

• Improved surge protection
• Increased inverter reliability
• Reduced maintenance requirements
• Better long-term operational stability

This example demonstrates that proper selection is not based on a single specification but rather on the overall characteristics of the installation.

DC SPD Selection Checklist

Before finalizing your SPD selection, review the following checklist.

Using a structured checklist can help reduce design errors and improve overall protection performance.

Frequently Asked Questions

Why can’t I use a standard AC SPD in a solar DC system?

AC and DC circuits behave differently.

Solar photovoltaic systems require SPDs specifically designed for direct current applications to ensure safe and reliable operation.

What is the most important factor when selecting a DC SPD?

There is no single factor.

Proper selection requires evaluating voltage, surge current ratings, installation environment, and system design together.

Do small residential solar systems need SPD protection?

Yes.

Even small rooftop systems can be affected by lightning-induced surges and switching transients.

Proper surge protection helps reduce the risk of equipment damage.

How long does a DC SPD typically last?

Service life depends on:

• Lightning activity
• Surge frequency
• Installation quality
• Product quality

Regular inspection is recommended as part of routine maintenance.

Can one SPD protect an entire solar installation?

Not always.

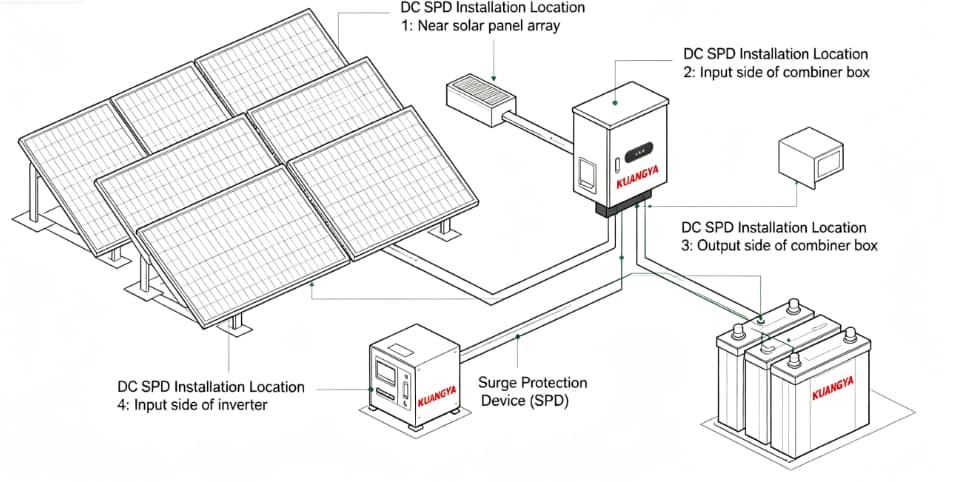

Large photovoltaic systems often require protection at multiple locations, such as combiner boxes, inverter inputs, and distribution panels.

Does a higher Imax always mean a better SPD?

Not necessarily.

A suitable SPD should be selected according to the actual project requirements.

Choosing specifications that greatly exceed system needs may increase costs without providing significant additional benefits.

What standards should a solar SPD comply with?

Standards and Compliance Requirements

When selecting a DC SPD, it is important to ensure compliance with internationally recognized standards. The International Electrotechnical Commission (IEC) publishes key standards related to surge protection and photovoltaic systems, helping engineers and buyers verify product safety and performance requirements.

Applicable standards vary by region and project requirements.

Always verify that the selected SPD meets the relevant standards and certification requirements for the intended market.

Should SPDs be inspected after a lightning storm?

Yes.

After major lightning activity, it is good practice to inspect surge protection devices and confirm they remain operational.
