2026 DC vs AC Circuit Breakers: Key Differences to Ensure Safe Solar Systems

In the world of electrical systems, circuit breakers are crucial for safety, protecting the wiring and components from faults such as short circuits or overloads. However, not all circuit breakers are created equal. There are distinct differences between the breakers used for Direct Current (DC) systems and those used for Alternating Current (AC) systems.

This post will explore the differences between DC and AC circuit breakers, particularly in the context of solar energy systems, and provide insights on why the right circuit protection is essential to prevent potential hazards.

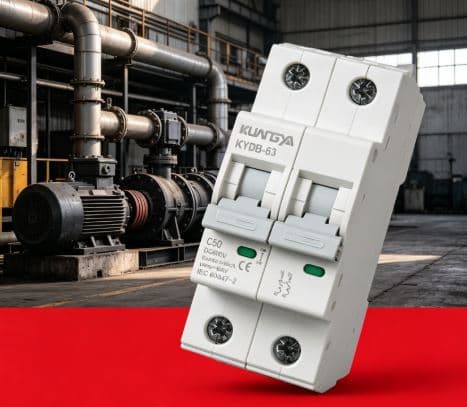

What is a DC Circuit Breaker?

A DC circuit breaker is a device designed specifically to protect electrical systems that use direct current (DC). These systems are commonly found in solar power installations, battery storage, and other renewable energy technologies. The main characteristic of DC is that the current flows in one direction, from the negative to the positive terminal.

In a typical DC-powered system, like a solar panel, the current generated is unidirectional. This flow of electricity presents unique challenges in terms of circuit protection. DC systems are more prone to arc faults, making it crucial for the circuit breaker to handle these more effectively than its AC counterpart.

The function of a DC circuit breaker is to interrupt the flow of current when it exceeds safe levels. It is especially important in solar installations, where DC current is generated from the photovoltaic (solar) panels. If an issue arises, such as a short circuit or overload, the breaker must act fast to prevent damage to the system or create a fire risk due to persistent arcs.

Learn more about DC circuit breakers for solar systems from the International Electrotechnical Commission (IEC).

What is an AC Circuit Breaker?

An AC circuit breaker is designed for protecting electrical systems that use alternating current (AC). AC systems are common in household appliances, grid power distribution, and large industrial systems.

AC systems differ from DC in that the current changes direction periodically. This phenomenon, known as the “zero crossing” of current, happens multiple times per second depending on the frequency of the AC source. This natural reversal of current direction makes arc extinction easier because when the current passes through zero, the arc extinguishes by itself.

AC circuit breakers are designed to interrupt current flow during an overload or fault condition, but their design takes advantage of the inherent properties of AC power, making arc quenching simpler compared to DC systems. These breakers are ideal for applications such as home electrical circuits, industrial systems, and grid power, where alternating current is the standard.

Learn more about the role of AC Circuit Breakers on Energy.gov.

Key Differences Between DC and AC Circuit Breakers

Below is a comparison of the key features that differentiate DC and AC circuit breakers, specifically in the context of their use in solar power systems and other electrical applications:

Why DC Circuit Breakers are Critical in Solar Systems

In solar energy systems, the generation of direct current is a fundamental aspect. Solar panels convert sunlight into DC electricity, which is then either stored in batteries or converted to AC for use in homes and businesses. However, the nature of DC creates specific challenges for circuit protection.

1. Arc Faults and Fire Hazards:
   DC arcs are more persistent and harder to extinguish compared to AC arcs. If a fault occurs in a DC system, such as a short circuit, the arc created by the continuous flow of electricity can continue to burn long after the fault has occurred. This sustained arc can lead to significant damage to the components or even cause a fire. DC systems, being used in solar applications, are more susceptible to this type of hazard due to the high voltage and continuous current.
2. Specialized Design:
   DC circuit breakers are specifically engineered to handle the challenges posed by DC current. They are built with special materials, techniques, and mechanisms that help in extinguishing the arc when the circuit is opened. For example, many DC circuit breakers employ an arc chute to control the arc and cool it down, effectively extinguishing it. Additionally, these breakers are designed to withstand higher voltages, up to 1500V or more, making them suitable for large-scale solar installations.

Learn more about arc fault protection in solar systems from the National Renewable Energy Laboratory (NREL).

3. Safety Standards:
   Solar energy systems must comply with safety standards to prevent accidents. For example, DC circuit breakers must meet specific standards such as UL 1077 (for supplementary protectors) or IEC 60947-2. These certifications ensure that the breakers are suitable for the high voltages and currents typical in photovoltaic (solar) systems.

Learn more about UL 1077 Certification for DC breakers.

4. Environmental Impact:
   Another important factor to consider is the environmental impact of solar systems. A faulty circuit breaker could lead to energy inefficiencies, system failures, or even fires, causing not only a loss of energy but also a potential environmental hazard. Using the proper circuit protection ensures that the energy produced by solar panels is used effectively without causing further damage or resource wastage.
5. Long-Term System Efficiency:
   The right DC circuit breaker helps to ensure the system’s longevity. With adequate protection against overvoltage, overcurrent, and fault conditions, the components of a solar system, including inverters, batteries, and panels, are safeguarded. This protection helps prevent degradation or damage, thereby ensuring that the solar installation continues to operate efficiently over the long term, maximizing return on investment for system owners.
6. Technological Advancements and Smart Circuit Protection:
   As solar technology continues to evolve, so too do the advancements in circuit protection. Many modern DC circuit breakers now feature advanced monitoring capabilities, such as real-time tracking of current, voltage, and fault conditions. These “smart breakers” offer additional safety by enabling remote monitoring and diagnostics, allowing for quicker response times to faults and system irregularities. This integration of digital technology ensures that solar power systems are not only protected but also optimized for performance and longevity.

How to Choose the Right DC Circuit Breaker for Solar Systems

Selecting the right DC circuit breaker for a solar power system is critical to ensuring the safety and longevity of the system. When choosing a breaker, several factors need to be considered:

1. Rated Voltage:
   The voltage rating is one of the most important aspects of selecting a circuit breaker. Solar systems can have varying voltage levels, depending on the design and size of the installation. Common voltage ratings for DC circuit breakers in solar systems include 600V, 1000V, and 1500V. The voltage rating should match the voltage of your system to ensure proper protection.
2. Rated Current:
   The rated current is the maximum current that the breaker can handle without tripping. It is essential to choose a breaker with the appropriate rated current based on the size of the solar system and the expected current flow.
3. Number of Poles:
   DC systems can use single-pole or multi-pole circuit breakers, depending on the system configuration. A single-pole breaker is sufficient for systems with a single DC circuit, while a multi-pole breaker (e.g., 2P or 4P) is needed for more complex systems with multiple circuits. In more sophisticated setups, such as those involving battery storage or multiple solar arrays, multi-pole breakers provide more comprehensive protection by managing the entire system’s safety.
4. Certification:
   It’s important to ensure that the circuit breaker has been certified by recognized organizations such as CE (Conformité Européenne), TUV (Technischer Überwachungsverein), and UL (Underwriters Laboratories). These certifications ensure that the breaker meets safety and performance standards suitable for photovoltaic applications.
5. Breaker Type:
   DC circuit breakers come in different types, such as thermal-magnetic or electronic. Thermal-magnetic breakers provide both overload protection and short-circuit protection, while electronic breakers may offer more advanced features such as adjustable trip settings and better protection for sensitive equipment. When selecting the breaker type, consider the overall complexity and demands of your solar system.
6. Cost Considerations:
   While high-quality DC circuit breakers can come at a premium, it’s important to consider them as an investment in the safety and longevity of your solar system. Cheaper, low-quality breakers may offer short-term savings but can result in long-term risks, including system damage, frequent maintenance, and reduced energy efficiency.

Frequently Asked Questions (FAQs)

Can I Use an AC Breaker for DC?

No, an AC circuit breaker is not suitable for DC systems. AC breakers are designed to interrupt alternating current, which has natural zero-crossing points. DC breakers, on the other hand, are designed to deal with the continuous flow of current and the more persistent arcs that can form. Using an AC breaker in a DC system would not provide the required protection, and it could pose a serious safety risk.

Why is DC Arc More Dangerous?

DC arcs are inherently more dangerous than AC arcs because DC current does not pass through a zero point, making it more difficult to extinguish the arc when the circuit is opened. In DC circuits, the arc can continue to burn even after the breaker has attempted to open the circuit. This can lead to severe damage to the components or cause a fire if not addressed quickly.

Conclusion

Understanding the key differences between DC and AC circuit breakers is essential for ensuring the safety and reliability of solar power systems. As solar energy systems continue to grow in popularity, the need for specialized protection devices like DC circuit breakers becomes increasingly important.

Whether you’re designing a small residential solar installation or a large commercial system, selecting the right circuit protection can make the difference between a safe, efficient system and a hazardous one. By choosing the appropriate DC circuit breaker based on voltage rating, current, and system requirements, you can ensure that your solar system operates safely and efficiently for years to come.
