Aerosol Fire Extinguisher for Electrical Cabinets in Middle East EPC Projects 2026
An aerosol fire extinguisher is an automatic fire suppression system designed for enclosed electrical environments such as control cabinets, switchgear, solar PV combiner boxes, and inverter enclosures. It works by releasing ultra-fine potassium-based aerosol particles that interrupt the chemical chain reaction of combustion. In Middle East EPC projects, it is widely used due to its compact size, fast activation speed, low maintenance requirements, and strong adaptability to high-temperature and dusty environments commonly found in Saudi Arabia, UAE, and Qatar.
Cabinet Automatic Fire Extinguishing Device | Hot Aerosol
Featured Snippet
What is an aerosol fire extinguisher?
An aerosol fire extinguisher is a compact automatic fire suppression device installed inside electrical cabinets. It releases fine potassium-based aerosol particles that suppress fire by interrupting the combustion chain reaction, making it suitable for enclosed electrical and industrial equipment.
1. Introduction: Electrical Fire Risk in Middle East EPC Projects
Electrical fire risk has become one of the most critical safety concerns in EPC engineering projects across the Middle East, especially in Saudi Arabia, the United Arab Emirates, and Qatar.
With the rapid expansion of:
- Solar photovoltaic (PV) power plants
- Substation infrastructure projects
- Industrial automation systems
- Battery energy storage systems (BESS)
- Large-scale oil & gas electrical facilities
the number of electrical cabinets deployed in the field has increased significantly.
These cabinets—such as inverter enclosures, combiner boxes, distribution panels, and control cabinets—operate under harsh environmental conditions:
- Extremely high ambient temperatures (45°C–55°C or higher)
- Dust storms and sand infiltration
- Continuous 24/7 electrical load
- High-density wiring and components
- Limited ventilation inside sealed enclosures
These conditions significantly increase the probability of electrical faults such as:
- Arc faults
- Short circuits
- Insulation breakdown
- Overheating of terminals
- Component failure due to thermal stress
Once a fire starts inside a closed electrical cabinet, it can escalate within seconds and is extremely difficult to extinguish using external fire suppression systems.
This is why EPC contractors are increasingly adopting internal automatic fire suppression systems, especially aerosol-based technologies.
2. What Is an Aerosol Fire Extinguisher?
An aerosol fire extinguisher is a modern condensed aerosol fire suppression device designed specifically for enclosed spaces such as electrical cabinets and industrial control panels.
Unlike traditional systems (CO₂, FM-200, Novec, or sprinkler systems), aerosol technology does not rely on stored high-pressure gas or water discharge. Instead, it uses a solid chemical compound that generates ultra-fine aerosol particles when activated.
2.1 Working Principle
The working process can be summarized as:
- Fire or excessive heat is detected (thermal or electrical trigger)
- The aerosol generator is activated automatically
- Solid potassium-based compound is heated
- Fine aerosol particles are released into the enclosure
- These particles fill the entire cabinet volume
- Free radicals in the combustion process are neutralized
- Fire is extinguished at the chemical reaction level
The entire suppression process typically occurs within seconds, making it highly effective for early-stage fire control.
2.2 Key Scientific Mechanism
Aerosol fire suppression works primarily through:
- Chemical inhibition of flame reactions
- Radical scavenging (K⁺ ions)
- Chain reaction interruption in combustion process
This is fundamentally different from oxygen displacement (CO₂ systems) or cooling (water systems).
3. Why Aerosol Fire Extinguisher Is Ideal for Electrical Cabinets
Electrical cabinets in EPC projects require a very specific type of fire protection system. Aerosol systems meet these requirements better than traditional alternatives.

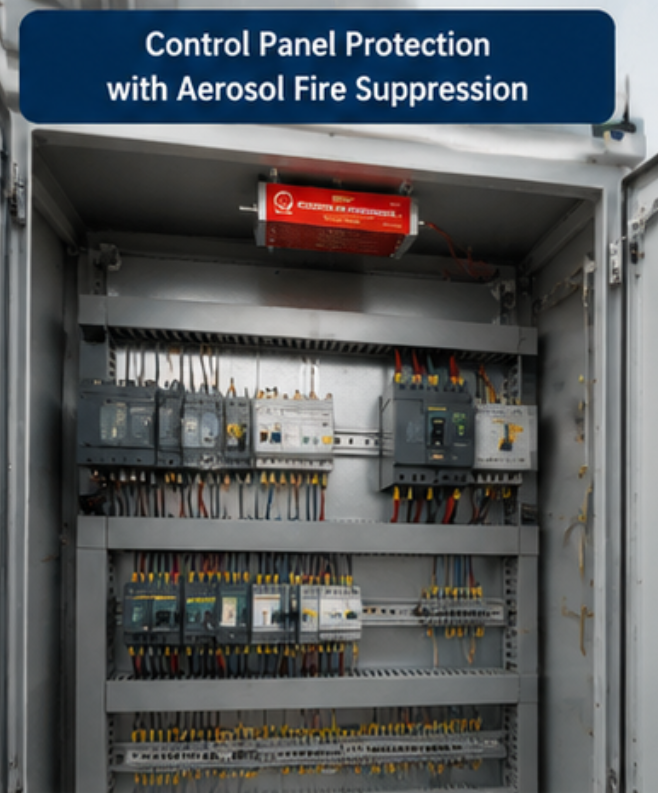

3.1 Direct Internal Protection
Aerosol units are installed inside the cabinet, meaning suppression starts exactly at the fire source.
3.2 No External Infrastructure Required
Unlike gas suppression systems, aerosol does not require:
- Piping networks
- Cylinder storage rooms
- Pressure vessels
- Pumping systems
This reduces engineering complexity significantly.
3.3 Fast Reaction Time
Fire suppression occurs within seconds after activation, which is critical for preventing equipment damage.
3.4 Space-Saving Design
Electrical cabinets in EPC projects are often compact. Aerosol systems fit easily without redesigning the enclosure.
3.5 Low Maintenance Requirement
No periodic gas refilling or pressure monitoring is needed, reducing operational costs over project lifecycle.

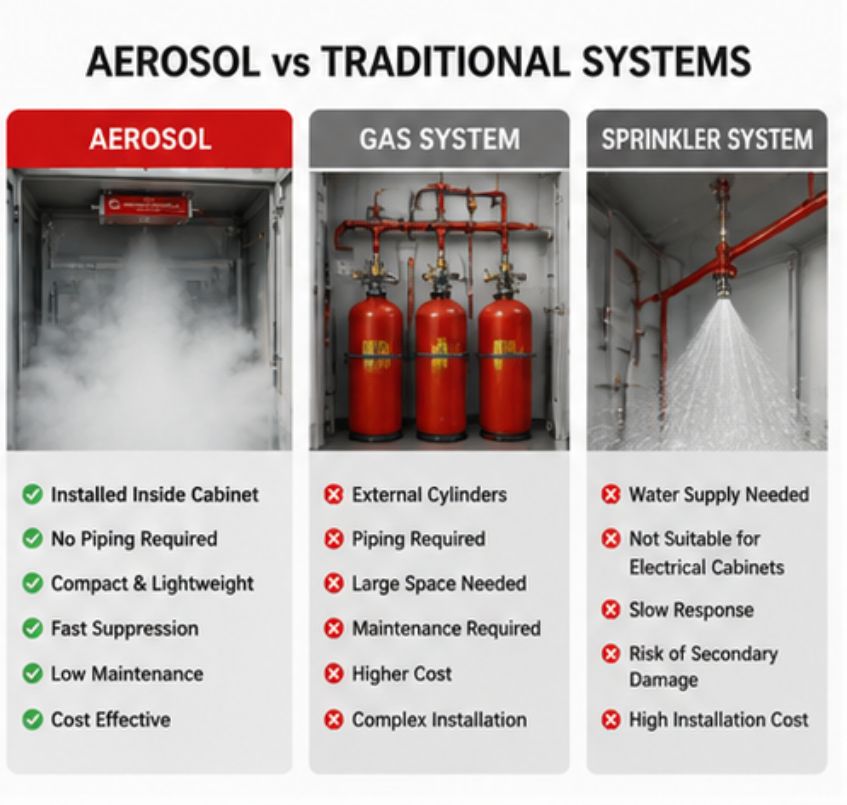

4. Aerosol vs Traditional Fire Suppression Systems
| Feature | Aerosol System | FM-200 / Novec Gas | CO₂ System | Water Sprinkler |
|---|---|---|---|---|
| Installation | Inside cabinet | External cylinders + piping | External system | Water network |
| Space Requirement | Very small | Large | Large | Very large |
| Maintenance | Very low | High | Medium | Medium |
| Electrical Safety | Safe | Safe | Risk in enclosed space | Not suitable |
| Reaction Speed | Very fast | Fast | Medium | Slow |
| Cost (Lifecycle) | Low | High | Medium | Medium |
👉 Conclusion:
For electrical cabinet protection in EPC projects, aerosol systems offer the best balance of cost, speed, and practicality.
5. Key Applications in EPC Power and Solar Projects
Aerosol fire extinguishers are widely used across multiple EPC sectors:

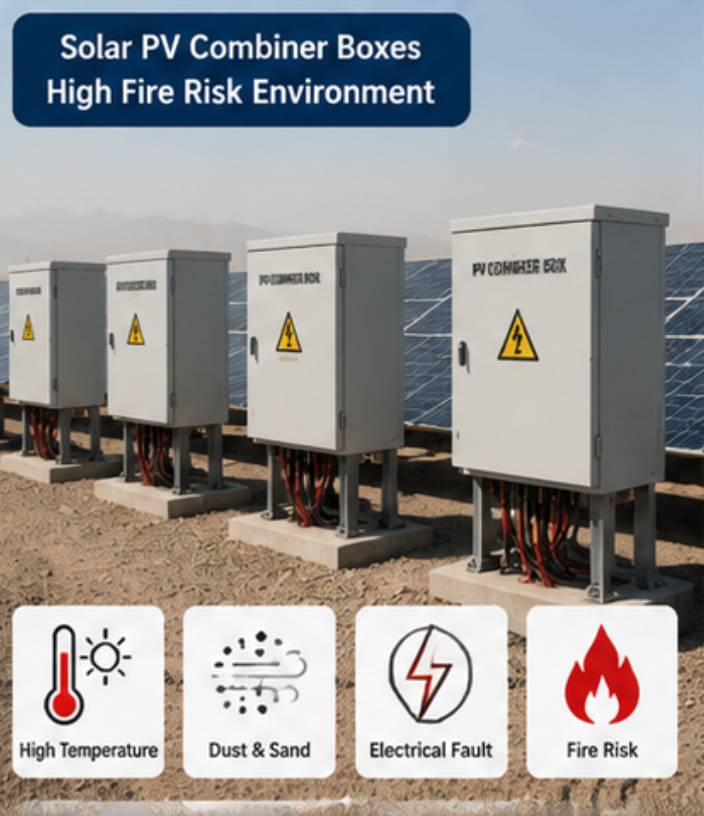

5.1 Solar PV Power Plants
- PV combiner boxes
- String inverter cabinets
- DC distribution panels
- Monitoring and communication cabinets
Solar plants operate under continuous load, making early fire suppression critical.
5.2 Power Transmission and Substations
- Relay protection panels
- SCADA systems
- Control and metering cabinets
- Low-voltage distribution boards
These systems require extremely high reliability and uptime.
5.3 Industrial EPC Projects
- Motor Control Centers (MCC)
- PLC automation cabinets
- Industrial control systems
- Manufacturing process control panels
Industrial environments often involve heavy electrical loads and continuous operation.
5.4 Battery Energy Storage Systems (BESS)
- Battery management system (BMS) cabinets
- Power conversion systems (PCS)
- Energy storage racks
- DC protection enclosures
BESS applications are among the fastest-growing markets for aerosol fire suppression.
6. Why Middle East EPC Market Is Growing Rapidly
The Middle East is one of the fastest-growing regions for aerosol fire suppression adoption due to several structural factors:
6.1 Massive Renewable Energy Investments
Saudi Vision 2030, UAE energy transition plans, and Qatar infrastructure development are driving large EPC solar projects.
6.2 Harsh Environmental Conditions
High heat, dust, and humidity significantly increase electrical failure risk.
6.3 Strict EPC Safety Requirements
International EPC contractors are increasingly required to implement internal fire protection systems for electrical enclosures.
6.4 Modular Electrical Design Trends
Modern EPC systems use compact modular electrical panels, making aerosol solutions more suitable.
Cabinet Automatic Fire Extinguishing Device | Hot Aerosol
7. Selection Guide for EPC Engineers
Table: How to Choose the Right Aerosol Fire Extinguisher for Electrical Cabinets
| Selection Factor | Recommendation | Why It Matters |
|---|---|---|
| Cabinet Volume | Match aerosol capacity to enclosure size | Ensures complete fire suppression coverage |
| Installation Location | Top-mounted preferred | Allows aerosol particles to disperse evenly |
| Activation Method | Thermal or Electrical Trigger | Enables automatic response without human intervention |
| Operating Temperature | Suitable for 55°C+ environments | Critical for Middle East climate conditions |
| Protection Target | Electrical cabinets, switchgear, inverter panels | Optimizes suppression effectiveness |
| Maintenance Requirement | Maintenance-free design | Reduces lifecycle costs |
| Certifications | CE, IEC compliant | Meets EPC project specifications |
| Service Life | 5–10 years or more | Ensures long-term protection reliability |
When selecting an aerosol fire extinguisher system, EPC engineers must consider:
- Electrical cabinet volume (critical for sizing)
- Operating temperature range (Middle East climate requirement)
- Trigger method (thermal / electrical / hybrid)
- Installation position inside enclosure
- Certification requirements (CE / IEC compliance)
- Expected service life and reliability
- Project specification compliance
Correct sizing ensures full enclosure coverage and effective suppression.
Cabinet Automatic Fire Extinguishing Device | Hot Aerosol
8. Installation and Engineering Advantages
From an EPC execution perspective, aerosol systems provide strong advantages:
- No redesign of electrical cabinet required
- Easy integration into standard panel production
- Reduced mechanical engineering workload
- Faster installation and commissioning
- Suitable for prefabricated modular systems
- Lower project risk during execution
These advantages are especially important in large-scale solar EPC projects where speed and standardization are critical.
9. Engineering Considerations in Real EPC Projects
In real-world EPC engineering design, aerosol systems are selected based on:
- Cabinet sealing level (IP rating)
- Internal airflow and heat dissipation
- Cable density and layout complexity
- Risk level of installed components
- Environmental exposure conditions
Aerosol systems perform best in sealed or semi-sealed enclosures, which is the standard design in most electrical cabinets.
10. Supplier Capability for EPC Projects
For EPC procurement teams, supplier capability directly affects project delivery success.
Kuangya provides aerosol fire suppression solutions for:
- Solar PV electrical protection systems
- Industrial control cabinet fire safety
- Power distribution enclosure protection
- EPC project OEM/ODM support
Product page: https://www.cnkuangya.com/product/2/
11. FAQ (SEO + AI Overview Optimization)
Q1: Where is aerosol fire extinguisher used?
It is installed inside electrical cabinets, switchgear, inverter systems, and control panels.
Q2: Is aerosol safe for electrical equipment?
Yes, it is non-conductive and designed specifically for electrical environments.
Q3: How fast does it activate?
It typically activates and suppresses fire within seconds.
Q4: Does it require external piping or gas storage?
No, it is a self-contained system.
Q5: Is it suitable for hot climates like the Middle East?
Yes, it is widely used in high-temperature environments such as Saudi Arabia and UAE.
12. Conclusion
Aerosol fire extinguishers have become an essential fire protection solution for EPC engineering companies working in solar power, electrical infrastructure, and industrial automation projects across the Middle East.
Their compact design, fast response time, low maintenance requirements, and suitability for harsh environments make them an ideal solution for modern electrical cabinet fire protection.
As EPC investments continue to grow in Saudi Arabia, UAE, and Qatar, demand for internal fire suppression technologies is expected to increase significantly.
